Full Half-Bridge (H Bridge) Drivers
Compare the current Full Half-Bridge (H Bridge) Drivers Power Management (PMIC) selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

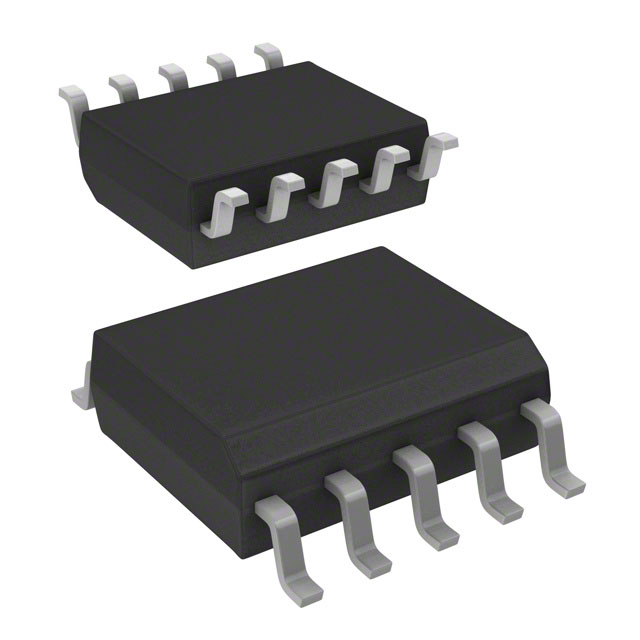

A3909GLNTR-TIC HALF BRIDGE DRIVER 1A 10SSOP |
19,714 | - |
|
Datasheet | - | 10-SOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | DMOS | 1.6Ohm LS + HS | 1A | - | 4V ~ 18V | 4V ~ 18V | -40°C ~ 150°C (TJ) | - | - | - | Current Limiting, Over Temperature | Surface Mount | 10-SSOP |
|

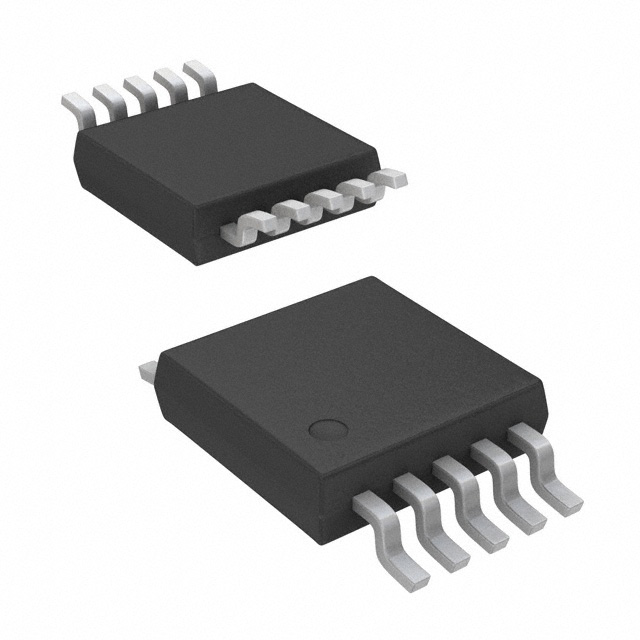

A3909GLYTR-TIC HALF BRIDGE DRIVER 1A 10MSOP |
8,716 | - |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | DMOS | 1.6Ohm LS + HS | 1A | - | 4V ~ 18V | 4V ~ 18V | -40°C ~ 150°C (TJ) | - | - | - | Current Limiting, Over Temperature | Surface Mount | 10-MSOP-EP |
|
AMT49502KLPTR-5IC HALF BRIDGE DRVR 2.1A 24TSSOP |
7,500 | - |
|
Datasheet | - | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge | DC Motors, Solenoids | Analog, PWM, Serial, SPI | Inductive, Capacitive, Resistive | Power MOSFET | 2.8Ohm LS (Max), 13.9Ohm HS (Max) | 2.1A | 2.1A | 5.5V ~ 80V | 5.5V ~ 80V | 165°C (TJ) | Automotive | AEC-Q100 | Charge Pump, Status Flag | Current Limiting, Over Current, Over Temperature | Surface Mount | 24-TSSOP-EP |
|

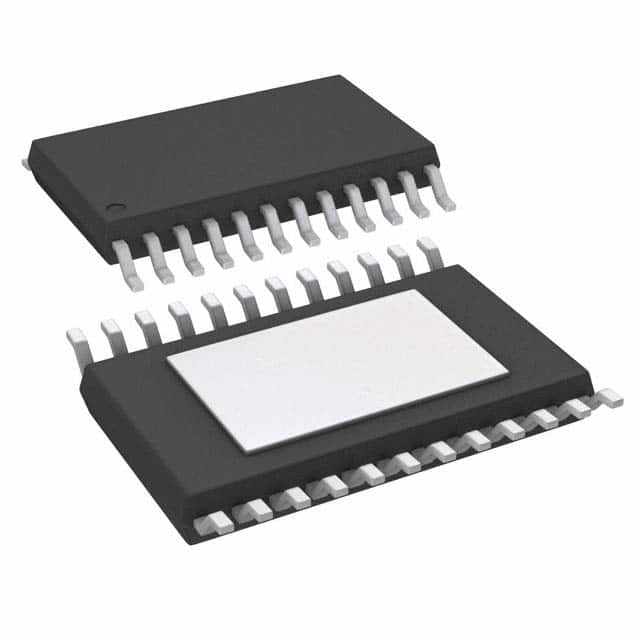

A5929KLPTR-TIC HALF BRIDGE DRIVER 24TSSOP |
7,986 | - |
|
Datasheet | - | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | - | - | - | 5.5V ~ 50V | 5.5V ~ 50V | -40°C ~ 165°C (TJ) | - | - | Status Flag | Over Temperature, UVLO | Surface Mount | 24-TSSOP-EP |
|

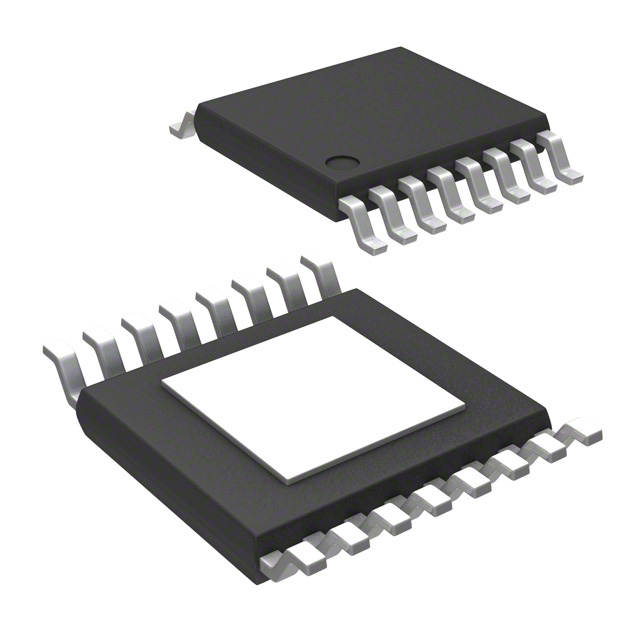

AMT49702KLPATRIC HALF BRIDGE DRVR 1A 16ETSSOP |
3,670 | - |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | PWM | Inductive | DMOS | 335mOhm LS, 375mOhm HS | 1A | 1.8A | 3.5V ~ 15V | 3.5V ~ 15V | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Charge Pump | Over Current | Surface Mount | 16-eTSSOP-EP |
|
|
AMT49701GEVATRIC HALF BRIDGE DRIVER 1A 36QFN |
1,547 | - |
|
Datasheet | - | 36-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (8) | DC Motors, General Purpose | PWM | Capacitive and Resistive | DMOS | 355mOhm LS + HS | 1A | - | 3V ~ 5.5V | 4V ~ 18V | -40°C ~ 105°C (TA) | - | - | - | Current Limiting, Over Temperature, UVLO | Surface Mount | 36-QFN (6x6) |
|
|
A3924KEVSR-JAUTOMOTIVE FULL BRIDGE MOSFET DR |
1,706 | - |
|
Datasheet | - | 40-VFQFN Exposed Pad | Bulk | Obsolete | Half Bridge (2) | DC Motors, Solenoids | SPI | Inductive, Capacitive, Resistive | NMOS | 2.4Ohm LS, 8Ohm HS | - | - | 5.5V ~ 50V | 6V ~ 50V | -40°C ~ 150°C (TA) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, Shoot Through, Short Circuit | Surface Mount | 40-QFN (6x6) |
|
|
AMT49502KLPTR-3IC HALF BRIDGE DRVR 2.1A 24TSSOP |
2,703 | - |
|
Datasheet | - | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | DC Motors, Solenoids | Analog, PWM, Serial, SPI | Inductive, Capacitive, Resistive | Power MOSFET | 2.8Ohm LS (Max), 13.9Ohm HS (Max) | 2.1A | 2.1A | 5.5V ~ 80V | 5.5V ~ 80V | 165°C (TJ) | Automotive | AEC-Q100 | Charge Pump, Status Flag | Current Limiting, Over Current, Over Temperature | Surface Mount | 24-TSSOP-EP |
Full Half-Bridge (H Bridge) Drivers FAQ
How can I narrow the current Full Half-Bridge (H Bridge) Drivers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Full Half-Bridge (H Bridge) Drivers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
