Full Half-Bridge (H Bridge) Drivers
Compare the current Full Half-Bridge (H Bridge) Drivers Power Management (PMIC) selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L2293QTRIC HALF BRIDG DRV 600MA 32VFQFPN |
8,723 | - |
|
Datasheet | - | 32-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, Relays, Solenoids, Stepper Motors | Logic | Inductive | - | - | 600mA | 1.2A | 2.8V ~ 36V | 2.8V ~ 36V | -20°C ~ 125°C (TJ) | - | - | - | Over Temperature | Surface Mount | 32-VFQFPN (5x5) |
|

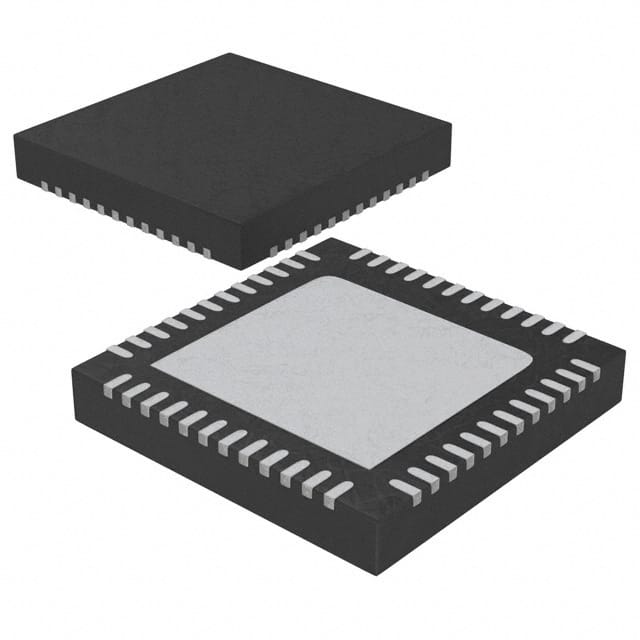

L6206QTRIC FULL BRIDGE DRV 2.5A 48VFQFPN |
3,344 |
1+：$4.24000 10+：$3.20900 25+：$2.95080 100+：$2.66740 250+：$2.53224 500+：$2.52282 |
|
Datasheet | - | 48-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, Stepper Motors, Voltage Regulators | Logic | Inductive | BCDMOS | 280mOhm LS, 340mOhm HS | 2.5A | 5.6A | 8V ~ 52V | 8V ~ 52V | -25°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Surface Mount | 48-VFQFPN (7x7) |
.jpg "L6207QTR")
|

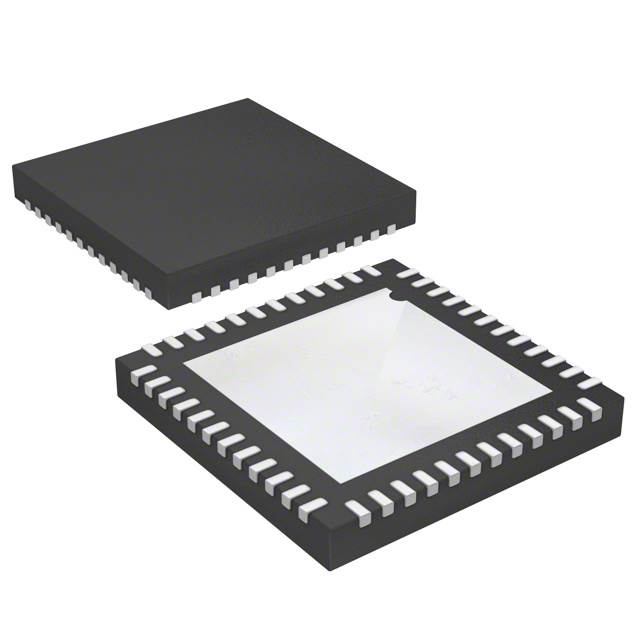

L6207QTRIC HALF BRIDGE DRV 2.5A 48VFQFPN |
15,990 |
1+：$5.19000 10+：$3.95800 25+：$3.64960 100+：$3.30990 250+：$3.16188 |
|
Datasheet | - | 48-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, Stepper Motors, Voltage Regulators | Logic | Inductive | DMOS | 280mOhm LS, 340mOhm HS | 2.5A | 5.6A | 8V ~ 52V | 8V ~ 52V | -25°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Surface Mount | 48-VFQFPN (7x7) |
|
L6201013TRIC HALF BRIDGE DRIVER 1A 20SO |
1,355 | - |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | BCDMOS | 300mOhm | 1A | - | 12V ~ 48V | 12V ~ 48V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Over Temperature | Surface Mount | 20-SO |
|

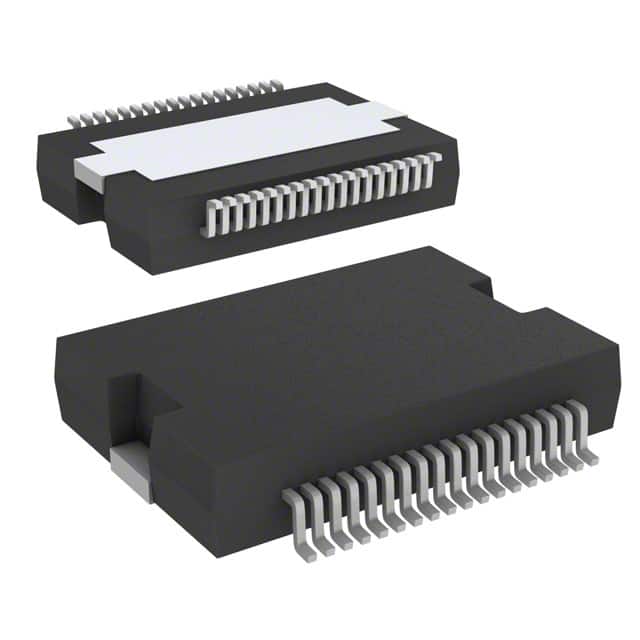

L6206PDIC HALF BRIDG DRV 2.8A 36POWERSO |
3,582 | - |
|
Datasheet | - | 36-PowerBSSOP (0.433", 11.00mm Width) | Tube | Active | Half Bridge (4) | DC Motors, Stepper Motors, Voltage Regulators | Logic | Inductive | BCDMOS | 300mOhm | 2.8A | 5.6A | 8V ~ 52V | 8V ~ 52V | -25°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Surface Mount | PowerSO-36 Slug Up |
|
|
L6201IC HALF BRIDGE DRIVER 1A 20SO |
1,281 |
1+：$10.78000 10+：$8.42400 40+：$7.58700 120+：$7.11992 280+：$6.84618 520+：$6.68360 1000+：$6.53996 |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | BCDMOS | 300mOhm | 1A | - | 12V ~ 48V | 12V ~ 48V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Over Temperature | Surface Mount | 20-SO |
|

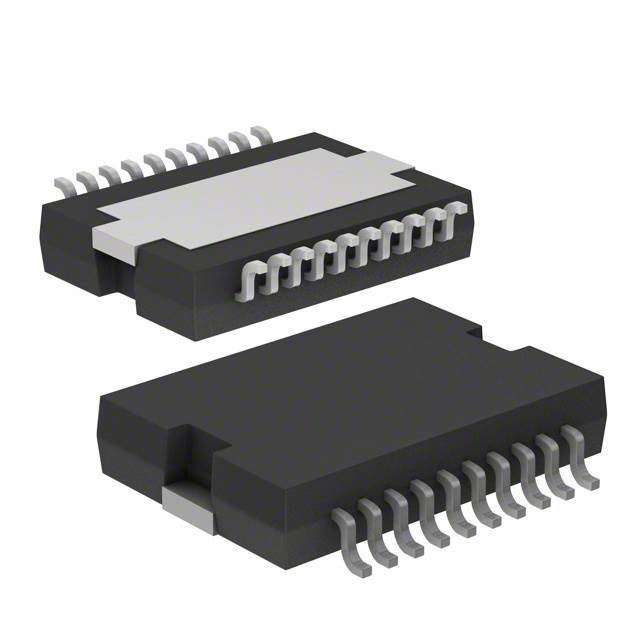

L6201PSIC HALF BRIDGE DRV 4A POWERSO-20 |
999 |
1+：$9.81000 10+：$7.63000 31+：$6.97452 124+：$6.40935 279+：$6.16753 527+：$6.01292 1023+：$5.87853 |
|
Datasheet | - | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | Tube | Active | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | BCDMOS | 300mOhm | 4A | - | 12V ~ 48V | 12V ~ 48V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Over Temperature | Surface Mount | PowerSO-20 |
|
|
L6206PD013TRIC FULL BRIDG DRV 2.8A 36POWERSO |
2 |
1+：$8.63000 10+：$6.69200 25+：$6.20800 100+：$5.67590 250+：$5.55052 |
|
Datasheet | - | 36-PowerBSSOP (0.433", 11.00mm Width) | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, Stepper Motors, Voltage Regulators | Logic | Inductive | BCDMOS | 300mOhm | 2.8A | 5.6A | 8V ~ 52V | 8V ~ 52V | -25°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Surface Mount | PowerSO-36 Slug Up |
|
|
L6207PD013TRIC HALF BRIDG DRV 2.8A 36POWERSO |
2,325 |
1+：$9.43000 10+：$7.33500 25+：$6.81160 100+：$6.23620 250+：$6.12200 |
|
Datasheet | - | 36-PowerBSSOP (0.433", 11.00mm Width) | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, Stepper Motors, Voltage Regulators | Logic | Inductive | DMOS | 300mOhm | 2.8A | 5.6A | 8V ~ 52V | 8V ~ 52V | -25°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Surface Mount | PowerSO-36 Slug Up |
|
L6203IC HALF BRIDGE DRV 4A 11MULTWATT |
1,045 |
1+：$10.24000 10+：$7.96900 25+：$7.40200 100+：$6.77910 250+：$6.70528 1000+：$6.32575 |
|
Datasheet | - | Multiwatt-11 (Vertical, Bent and Staggered Leads) | Tube | Active | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | BCDMOS | 300mOhm | 4A | - | 12V ~ 48V | 12V ~ 48V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Over Temperature | Through Hole | 11-Multiwatt |
Full Half-Bridge (H Bridge) Drivers FAQ
How can I narrow the current Full Half-Bridge (H Bridge) Drivers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Full Half-Bridge (H Bridge) Drivers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
