Full Half-Bridge (H Bridge) Drivers
Compare the current Full Half-Bridge (H Bridge) Drivers Power Management (PMIC) selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP1013CENIC HALF BRIDGE DRIVER 1.3A 16QFN |
13,163 | - |
|
Datasheet | - | 16-UFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Half Bridge (2) | General Purpose | Logic | Inductive | Power MOSFET | - | 1.3A | 5A | 2.7V ~ 5.5V | 2V ~ 18V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 16-QFN (3x3) |
|
|
AP1013DENIC HALF BRIDGE DRIVER 1.3A 16QFN |
9,779 | - |
|
Datasheet | - | 16-UFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Half Bridge (2) | General Purpose | Logic | Inductive | Power MOSFET | - | 1.3A | 5A | 2.7V ~ 5.5V | 2V ~ 18V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 16-QFN (3x3) |
|
|
AP1016AENIC HALF BRIDGE DRIVER 1A 16QFN |
1,914 | - |
|
Datasheet | - | 16-UFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Half Bridge (4) | General Purpose, Stepper Motors | Logic | Inductive | Power MOSFET | 270mOhm LS, 270mOhm HS | 1A | 1.4A | 2.7V ~ 5.5V | 2V ~ 9V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 16-QFN (3x3) |
|
AP1023AENIC HALF BRIDGE DRVR 1.45A 24QFN |
958 | - |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Half Bridge (4) | General Purpose, Stepper Motors | Logic | Inductive | Power MOSFET | - | 1.45A | - | 2.7V ~ 5.5V | 1.6V ~ 6.5V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 24-QFN (4x4) |
|

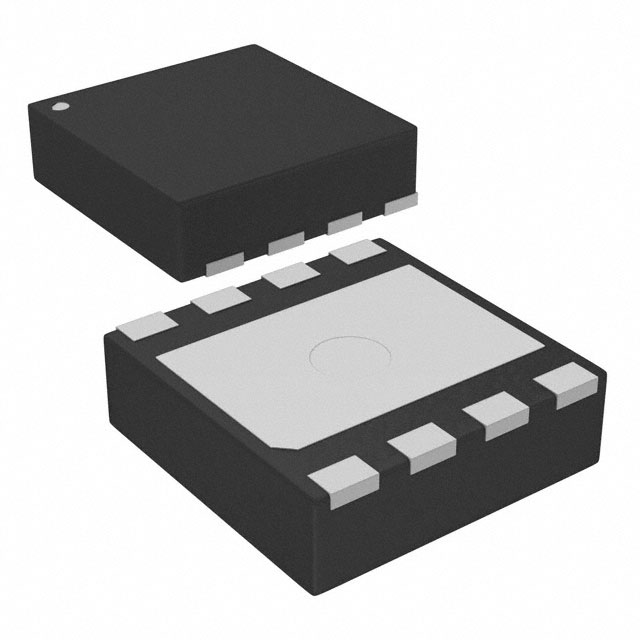

AP1017AENIC HALF BRIDGE DRIVER 1.56A 8SON |
2,321 | - |
|
Datasheet | - | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (2) | General Purpose | Logic | Inductive | Power MOSFET | 470mOhm LS + HS | 1.56A | 3.3A | 2.7V ~ 3.6V | 1.8V ~ 12V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 8-SON (2x2) |
|
|
AP1012AIC HALF BRIDGE DRIVER 1.3A 24QFN |
2,986 | - |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (4) | General Purpose | Logic | Inductive | Power MOSFET | 180mOhm LS, 180mOhm HS | 1.3A | 3A | 2.7V ~ 5.5V | 2V ~ 18V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 24-QFN (4x4) |
|

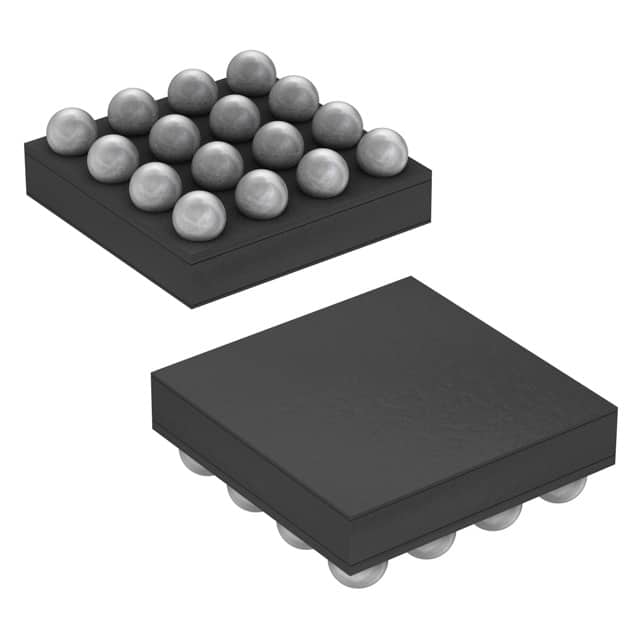

AP1014AECIC HALF BRIDGE DRVR 1.1A 16WLCSP |
4,785 | - |
|
Datasheet | - | 16-UFBGA, WLCSP | Tape & Reel (TR) | Not For New Designs | Half Bridge (4) | General Purpose | Logic | Inductive | Power MOSFET | 350mOhm LS + HS | 1.1A | 2A | 2.7V ~ 5.5V | 2V ~ 7V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 16-WLCSP (1.96x1.96) |
|

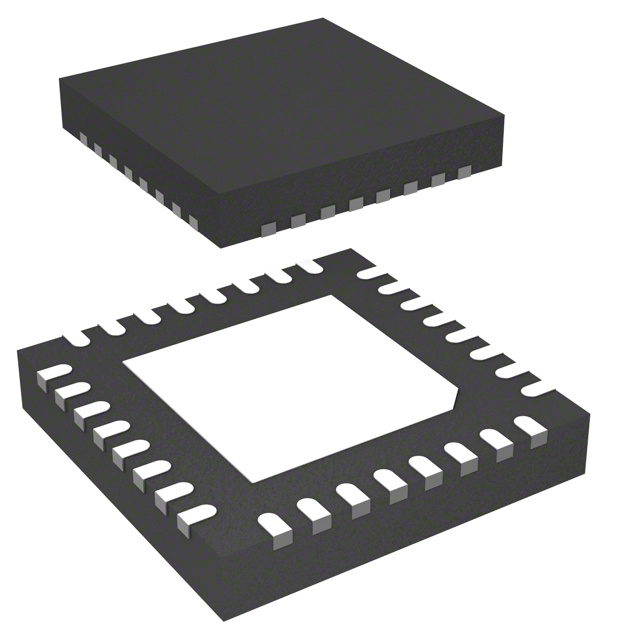

AP1025BENIC HALF BRIDGE DRIVER 1.6A 32QFN |
4,521 | - |
|
Datasheet | - | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (4) | General Purpose, Stepper Motors | Logic | Inductive | Power MOSFET | 850mOhm LS + HS | 1.6A | - | 3V ~ 5.5V | 9V ~ 45V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 32-QFN (5x5) |
Full Half-Bridge (H Bridge) Drivers FAQ
How can I narrow the current Full Half-Bridge (H Bridge) Drivers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Full Half-Bridge (H Bridge) Drivers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
