Full Half-Bridge (H Bridge) Drivers
Browse available Full Half-Bridge (H Bridge) Drivers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TND524VS-TL-HIC HALF BRIDGE DRIVER 8VEC |
2,510 | - |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | Half Bridge | General Purpose | On/Off | Inductive | Power MOSFET | - | - | 200mA, 400mA | 10V ~ 20V | 600V (Max) | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-VEC |
|
TND525SS-TL-2HIC HALF BRIDGE DRIVER 8SOIC |
3,805 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | General Purpose | Logic | Inductive | Power MOSFET | - | - | 200mA, 400mA | 10V ~ 20V | 600V (Max) | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-SOIC |
|
STK534U362C-EIC HALF BRIDGE DRIVER 10A 29SIP |
2,495 | - |
|
Datasheet | - | 29-SSIP Module, 21 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 10A | 20A | 12.5V ~ 17.5V | 450V (Max) | -20°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 29-SIP |
|
STK581U3C2D-EIC HALF BRIDGE DRIVER 30A 22SIP |
4,062 | - |
|
Datasheet | - | 22-SIP, 18 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 30A | 45A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, UVLO | Through Hole | 22-SIP |
|
IR3552MTRPBFIC HALF BRIDGE DRIVER 40A 2PQFN |
3,824 | - |
|
Datasheet | PowIRstage® | 25-PowerVFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | Power MOSFET | - | 40A | - | 4.5V ~ 5.5V | 4.5V ~ 17V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 25-PQFN (4x6) |
|
|
IR3555AMTRPBFIC GATE DRIVER 60A 30PQFN |
1,937 | - |
|
Datasheet | PowIRstage® | 30-PowerVFQFN | Tape & Reel (TR) | Obsolete | - | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | - | - | 60A | - | 4.5V ~ 7V | 4.5V ~ 15V | - | - | - | Diode Emulation, Status Flag | Current Limiting, Over Temperature, UVLO | Surface Mount | 30-PQFN (6x6) |
|

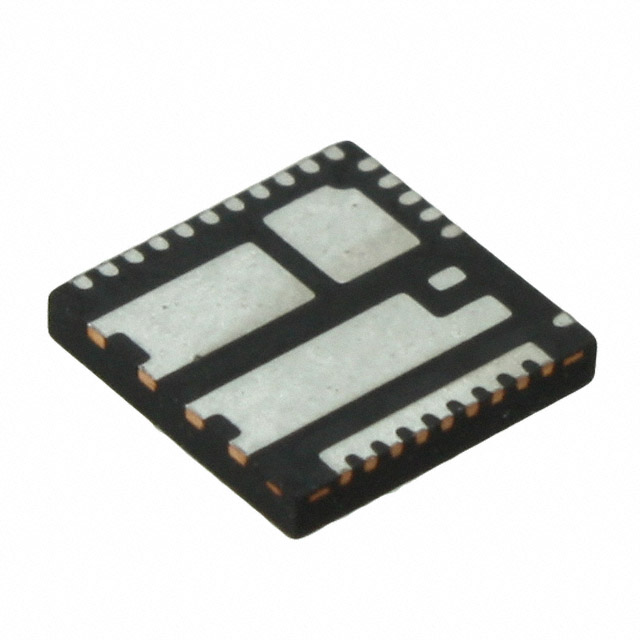

IR3555MTRPBFIC GATE DRIVER 60A 30PQFN |
1,212 | - |
|
Datasheet | PowIRstage® | 30-PowerVFQFN | Tape & Reel (TR) | Obsolete | - | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | - | - | 60A | - | 4.5V ~ 7V | 4.5V ~ 15V | - | - | - | Diode Emulation, Status Flag | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 30-PQFN (6x6) |
|
|
IR3557MTRPBFIC GATE DRIVER 40A 30PQFN |
3,251 | - |
|
Datasheet | PowIRstage® | 30-PowerVFQFN | Tape & Reel (TR) | Obsolete | - | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | - | - | 40A | - | 4.5V ~ 7V | 4.5V ~ 15V | - | - | - | Diode Emulation, Status Flag | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 30-PQFN (6x6) |
|
|
IR3578MTRPBFIC REG BUCK SYNC ADJ 30PQFN |
3,617 | - |
|
Datasheet | PowIRstage® | 30-PowerVFQFN | Tape & Reel (TR) | Obsolete | - | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | - | - | 50A | - | 4.5V ~ 7V | 4.5V ~ 15V | - | - | - | Diode Emulation, Status Flag | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 30-PQFN (6x6) |
|
|
IR3579AMTRPBFIC REG BUCK SYNC ADJ 30PQFN |
3,336 | - |
|
Datasheet | PowIRstage® | 30-PowerVFQFN | Tape & Reel (TR) | Obsolete | - | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | - | - | 60A | - | 4.5V ~ 7V | 4.5V ~ 15V | - | - | - | Diode Emulation, Status Flag | Current Limiting, Over Temperature, UVLO | Surface Mount | 30-PQFN (6x6) |
|
|
IR3579MTRPBFIC REG BUCK SYNC ADJ 32PQFN |
4,826 | - |
|
Datasheet | PowIRstage® | 30-PowerVFQFN | Tape & Reel (TR) | Obsolete | - | Synchronous Buck Converters, Voltage Regulators | PWM | Inductive | - | - | 60A | - | 4.5V ~ 7V | 4.5V ~ 15V | - | - | - | Diode Emulation, Status Flag | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 30-PQFN (6x6) |
|
|
IRSM505-024PAIC HALF BRIDGE DRIVER 1.6A 23SOP |
1,123 | - |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 1.6A | 7A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
IRSM505-025DAIC HALF BRIDGE DRIVER 1.5A 23DIP |
2,137 | - |
|
Datasheet | µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 3Ohm | 1.5A | 11A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM505-025DA2IC HALF BRIDGE DRIVER 1.5A 23DIP |
2,316 | - |
|
Datasheet | µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 3Ohm | 1.5A | 11A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
IRSM505-025PAIC HALF BRIDGE DRIVER 1.5A 23SOP |
4,169 | - |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 3Ohm | 1.5A | 11A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
IRSM505-035DA2IC HALF BRIDGE DRIVER 2.1A 23DIP |
4,898 | - |
|
Datasheet | µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 2.1A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM505-035PAIC HALF BRIDGE DRIVER 2.1A 23SOP |
2,983 | - |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 2.1A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
IRSM505-044DA2IC HALF BRIDGE DRIVER 3A 23DIP |
3,223 | - |
|
Datasheet | µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 800mOhm | 3A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM505-044PAIC HALF BRIDGE DRIVER 3A 23SOP |
2,164 | - |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 800mOhm | 3A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
IRSM505-055DAIC HALF BRIDGE DRIVER 2.4A 23DIP |
4,153 | - |
|
Datasheet | µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.3Ohm | 2.4A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
Full Half-Bridge (H Bridge) Drivers FAQ
What Full Half-Bridge (H Bridge) Drivers components can I source from EGOO?
You can browse available Full Half-Bridge (H Bridge) Drivers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Full Half-Bridge (H Bridge) Drivers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
