Gate Drivers
Compare the current Gate Drivers Power Management (PMIC) selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLA567-11RIC GATE DRVR HALF-BRIDGE MODULE |
4,232 | - |
|
Datasheet | - | 44-DIP Module, 28 Leads | Bulk | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.2V ~ 15.8V | - | - | Non-Inverting | - | 400ns, 300ns | -20°C ~ 70°C (TA) | - | - | Through Hole | Module |
|
VLA502-01IC GATE DRVR LOW-SIDE MODULE |
3,690 | - |
|
Datasheet | - | 21-SIP Module | Bulk | Active | Not Verified | Low-Side | Single | 1 | IGBT | 14.2V ~ 15.8V | - | 12A, 12A | Non-Inverting | - | 300ns, 300ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|

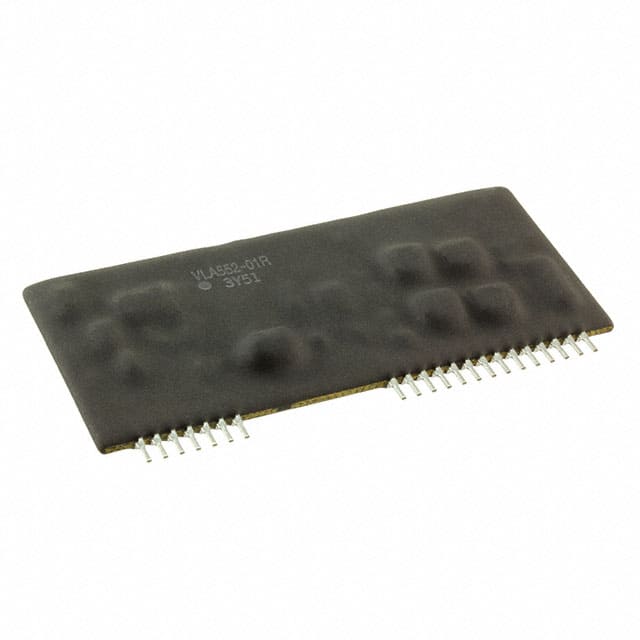

VLA552-01RIC GATE DRVR LOW-SIDE MODULE |
1,378 | - |
|
Datasheet | - | 30-SIP Module, 21 Leads | Bulk | Discontinued at Digi-Key | Not Verified | Low-Side | Single | 1 | IGBT | 14.2V ~ 15.8V | - | - | Inverting, Non-Inverting | - | 600ns, 300ns | -25°C ~ 70°C (TA) | - | - | Through Hole | Module |
.jpg "VLA591-01R")
|

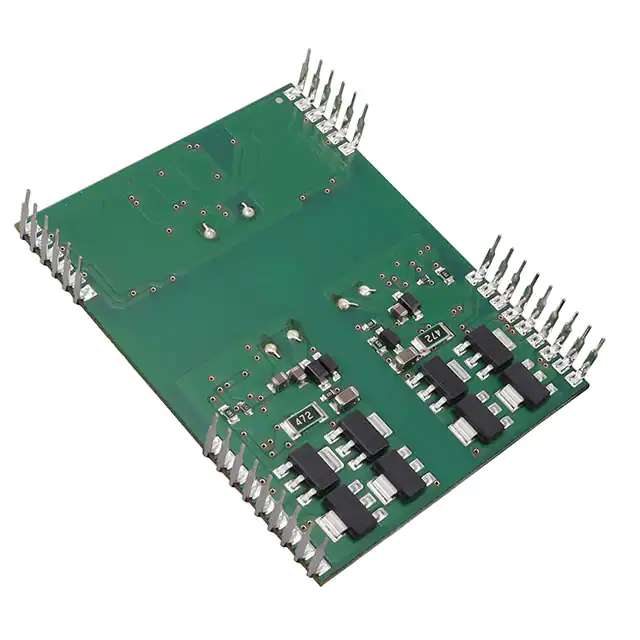

VLA591-01RIC GATE DRVR FULL-BRIDGE MODULE |
1,020 | - |
|
Datasheet | - | 50-DIP Module, 30 Leads | Tray | Discontinued at Digi-Key | Not Verified | Full-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 20A, 20A | Non-Inverting | - | 520ns, 120ns | -40°C ~ 85°C | - | - | Through Hole | Module |
|
VLA553-01RIC GATE DRVR HALF-BRIDGE OCTAPAK |
2,819 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.2V ~ 15.8V | - | 24A, 24A | Non-Inverting | - | - | -25°C ~ 70°C (TA) | - | - | Chassis Mount | OctaPAK 7+1 |
|
|
VLA553-02RIC GATE DRVR HALF-BRIDGE MODULE |
3,412 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.2V ~ 15.8V | - | 24A, 24A | Non-Inverting | - | - | -25°C ~ 70°C (TA) | - | - | Chassis Mount | Module |
|

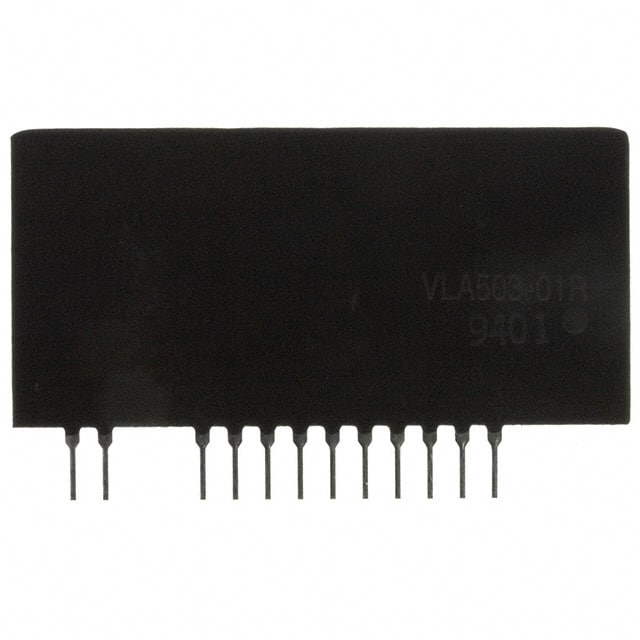

VLA503-01IC GATE DRVR LOW-SIDE MODULE |
4,842 | - |
|
Datasheet | - | 12-SIP | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14V ~ 15V | - | 5A, 5A | Non-Inverting | - | 300ns, 300ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|
M57160AL-01IC GATE DRVR LOW-SIDE MODULE |
1,738 | - |
|
Datasheet | - | 14-SIP Module, 12 Leads | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14V ~ 15V | - | 5A, 5A | Non-Inverting | - | 500ns, 400ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|
|
M57161L-01IC GATE DRVR LOW-SIDE MODULE |
1,165 | - |
|
Datasheet | - | 28-SIP, 15 Leads | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14.3V ~ 15.7V | - | 7A, 7A | Non-Inverting | - | 400ns, 400ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|
|
M57959LIC GATE DRVR LOW-SIDE MODULE |
3,614 | - |
|
Datasheet | - | 14-SIP Module, 12 Leads | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14V ~ 15V | - | 2A, 2A | Non-Inverting | - | 500ns, 300ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
Gate Drivers FAQ
How can I narrow the current Gate Drivers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Gate Drivers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
