Power Distribution Switches, Load Drivers
Compare the current Power Distribution Switches, Load Drivers Power Management (PMIC) selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC33XS2410ELR2HIGH SIDE SWITCH, 24V, 100MOHM, |
3,438 | - |
|
Datasheet | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | 3V ~ 60V | Not Required | - | - | - | - | - | - | Automotive | AEC-Q100 | Surface Mount | 28-HTSSOP |
|
MC33996EKIC PWR SWITCH N-CH 1:16 32SOIC |
4,969 | - |
|
Datasheet | 32-BSSOP (0.295", 7.50mm Width) Exposed Pad | - | Tube | Obsolete | General Purpose | 16 | 1:16 | Low Side | N-Channel | SPI | 5V ~ 27V | 1.5V ~ 3V | 900mA | 550mOhm | - | PWM Input | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 32-SOIC |
|
|
MC20XS4200BDFKHIGH-SIDE SWITCH, 24V, DUAL 20MO |
1,641 | - |
|
Datasheet | 23-PowerQFN | - | Tray | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 4.4A | 20mOhm (Max) | Non-Inverting | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Adjustable), Over Temperature, Over Voltage, Short Circuit, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC10XS4200BDFKR2HIGH-SIDE SWITCH, 24V, DUAL 10MO |
4,607 | - |
|
Datasheet | 23-PowerQFN | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm (Max) | CMOS | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC10XS4200DFKR2HIGH-SIDE SWITCH, 24V, DUAL 10MO |
1,792 | - |
|
Datasheet | 23-PowerQFN | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm (Max) | CMOS | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC10XS4200CFKR2HIGH-SIDE SWITCH, 24V, DUAL 10MO |
2,137 | - |
|
Datasheet | 23-PowerQFN | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm (Max) | CMOS | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|

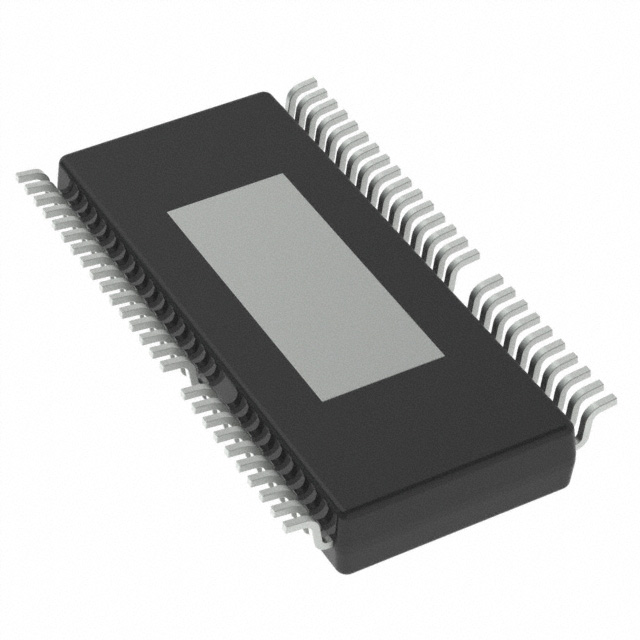

MC07XS6517DEKR2IC PWR SWITCH N-CHAN 1:1 54HSOP |
4,512 | - |
|
Datasheet | 54-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 6 | 2:3 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A, 11A | 7mOhm, 17mOhm | - | Internal PWM | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 54-HSOP |
|
|
MC17XS6500EEKHIGH-SIDE SWITCH, 12V, PENTA 17M |
3,195 | - |
|
Datasheet | 32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tube | Active | General Purpose | 6 | 2:3 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A | 17mOhm | - | Internal PWM | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 32-HSOP |
|
|
MC10XS4200CFKHIGH-SIDE SWITCH, 24V, DUAL 10MO |
4,605 | - |
|
Datasheet | 23-PowerQFN | - | Tray | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm (Max) | CMOS | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC07XSG517DEKR2HIGH-SIDE SWITCH, 32V, TRIPLE 7M |
2,890 | - |
|
Datasheet | 54-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 6 | 2:3 | High Side | N-Channel | SPI | 7V ~ 30V | 4.5V ~ 5.5V | - | 7mOhm | Non-Inverting | Internal PWM, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 54-HSOP |
