Power Distribution Switches, Load Drivers
Compare the current Power Distribution Switches, Load Drivers Power Management (PMIC) selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VND810SP-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
3,555 | - |
|
Datasheet | PowerSO-10 Exposed Bottom Pad | VIPower™ | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 3.5A | 160mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|

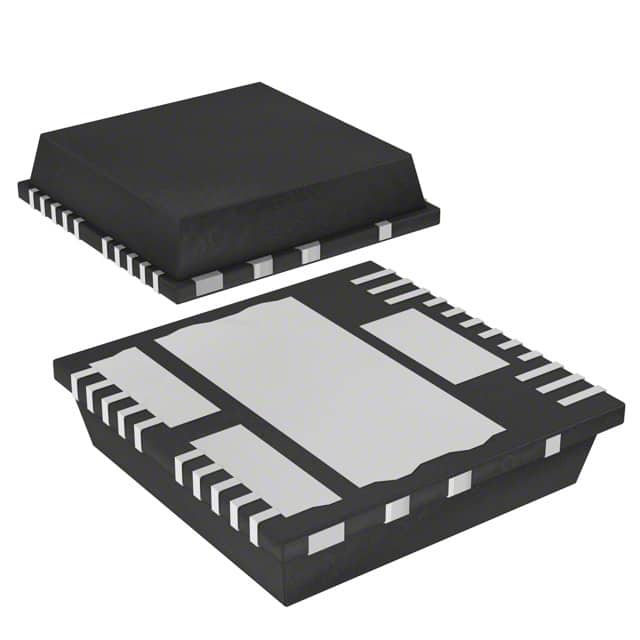

VND5004B-EIC PWR SWITCH N-CHAN 1:1 24PQFN |
4,331 | - |
|
Datasheet | 24-PowerDFN | VIPower™ | Tray | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 70A | 4mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
|
VN450PTR-EIC PWR DRIVER 1:1 PWRSO20 |
1,993 | - |
|
Datasheet | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 3 | 1:1 | High Side | - | On/Off | 5.5V ~ 36V | Not Required | 10A, 2A | 40mOhm (Max), 300mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSO-20 |
|
|
VNV35NV04-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
3,972 | - |
|
Datasheet | PowerSO-10 Exposed Bottom Pad | OMNIFET II™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 30A | 10mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
VNV35NV04TR-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
4,880 | - |
|
Datasheet | PowerSO-10 Exposed Bottom Pad | OMNIFET II™, VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 30A | 10mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
VNQ05XSP16TR-EIC PWR DRIVER N-CHAN 1:1 PWRSO16 |
3,486 | - |
|
Datasheet | 16-PowerBSOP (0.370", 9.40mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 5A | 110mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSO-16™ |
|
|
VND830MSP-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
1,791 | - |
|
Datasheet | PowerSO-10 Exposed Bottom Pad | VIPower™ | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 6A | 60mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
VND5004BSP30-EIC PWR SWITCH N-CH MULTIPWRSO-30 |
1,497 | - |
|
Datasheet | 30-PowerSOP (0.630", 16.00mm Width) | VIPower™ | Tube | Discontinued at Digi-Key | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 70A | 4mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | MultiPowerSO-30 |
|
VN920DB5-EIC PWR SSR HIGH SIDE SGL P2PAK |
1,113 | - |
|
Datasheet | P2PAK (4 Leads + Tab) | VIPower™ | Tube | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 30A | 18mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | P2PAK |
|
|
VND830ASPTR-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
4,072 | - |
|
Datasheet | PowerSO-10 Exposed Bottom Pad | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 6A | 60mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
Power Distribution Switches, Load Drivers FAQ
How can I narrow the current Power Distribution Switches, Load Drivers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Distribution Switches, Load Drivers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
