Power Distribution Switches, Load Drivers
Browse available Power Distribution Switches, Load Drivers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC10XS4200BFKR2IC PWR SWITCH N-CHAN 1:1 23PQFN |
2,329 | - |
|
Datasheet | 23-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC20XS4200BAFKR2IC PWR SWITCH N-CHAN 1:1 23PQFN |
1,859 | - |
|
Datasheet | 23-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 3A | 20mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC20XS4200BFKR2IC PWR SWITCH N-CHAN 1:1 23PQFN |
1,310 | - |
|
Datasheet | 23-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 3A | 20mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC06XS4200BFKIC PWR SWITCH N-CHAN 1:1 23PQFN |
3,972 | - |
|
Datasheet | 23-PowerQFN | - | Tray | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 9A | 6mOhm (Max) | - | Internal PWM, Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
MC10XS3535JHFKIC PWR SWITCH N-CHAN 1:6 24PQFN |
2,930 | - |
|
Datasheet | 24-PowerQFN | - | Tray | Obsolete | General Purpose | 6 | 1:6 | High Side | N-Channel | SPI | 7V ~ 20V | 3V ~ 5.5V | - | 10mOhm (Max), 35mOhm (Max) | - | Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 24-PQFN (12x12) |
|
|
MC10XS4200BAFKIC PWR SWITCH N-CHAN 1:1 23PQFN |
1,736 | - |
|
Datasheet | 23-PowerQFN | - | Tray | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC10XS4200BFKIC PWR SWITCH N-CHAN 1:1 23PQFN |
2,889 | - |
|
Datasheet | 23-PowerQFN | - | Tray | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC20XS4200BAFKIC PWR SWITCH N-CHAN 1:1 23PQFN |
4,239 | - |
|
Datasheet | 23-PowerQFN | - | Tray | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 3A | 20mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC20XS4200BFKIC PWR SWITCH N-CHAN 1:1 23PQFN |
3,529 | - |
|
Datasheet | 23-PowerQFN | - | Tray | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 3A | 20mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|

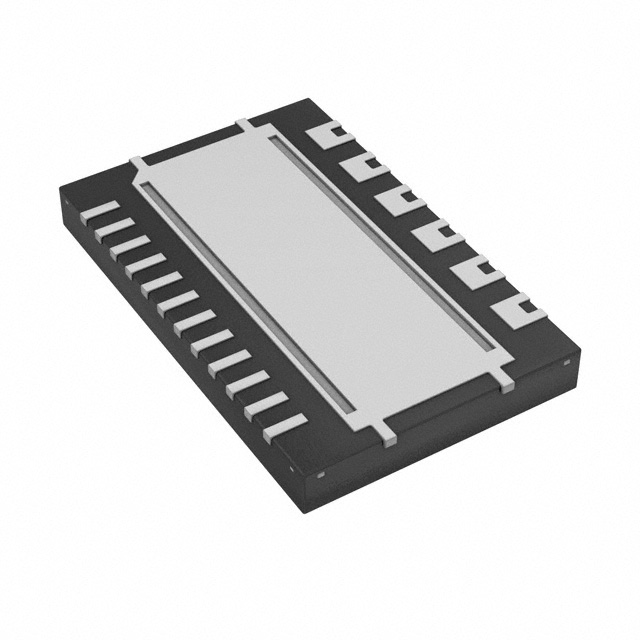

BTS56033LBAAUMA1IC PWR SWITCH N-CHAN 2:3 TSON-24 |
3,928 | - |
|
Datasheet | 24-PowerTDFN | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 6 | 2:3 | High Side | N-Channel | SPI | 5.5V ~ 28V | 3.8V ~ 5.5V | - | 39mOhm, 110mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSON-24-3 |
|
PI5USB14550-AZEEXIC PWR SWITCH USB 10TDFN |
4,053 | - |
|
Datasheet | 10-VFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | USB Switch | - | - | - | - | - | 4.5V ~ 5.5V | - | - | - | - | - | - | - | - | - | Surface Mount | 10-TDFN (3x3) |
|
PI5USB1457AZAEXIC PWR SWITCH USB NAP 8TDFN |
3,484 | - |
|
Datasheet | 8-WFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | USB Switch | - | - | - | - | - | 4.5V ~ 5.5V | - | - | 3Ohm | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN (2x2) |
|
PI5USB2058ZHEIC PWR SWITCH USB 20TQFN |
4,258 | - |
|
Datasheet | 20-WFQFN Exposed Pad | - | Tube | Obsolete | USB Switch | - | - | - | - | - | 4.5V ~ 5.5V | - | 2A | - | - | - | Reverse Current, UVLO | - | - | - | Surface Mount | 20-TQFN (4.5x3.5) |
|
AAT4616IPS-T1IC PWR SWITCH P-CHAN 1:1 8TDFN |
1,842 | - |
|
Datasheet | 8-VFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.4V ~ 5.5V | Not Required | 2A | 130mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN (2x2) |
|
NX5P2924BUKZIC PWR SWITCH N-CHAN 1:1 6WLCSP |
3,434 | - |
|
Datasheet | 6-XFBGA, WLCSP | NX5 | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.8V ~ 5.5V | Not Required | 2.5A | 14mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WLCSP (0.87x1.37) |
|
|
NX5P2924UKZIC PWR SWITCH N-CHAN 1:1 6WLCSP |
2,647 | - |
|
Datasheet | 6-UFBGA, WLCSP | NX5 | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.8V ~ 5.5V | Not Required | 2.5A | 14mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WLCSP (0.87x1.37) |
|
|
VND5E008ASPTR-EIC PWR DRIVER N-CHAN 1:1 PWRSO16 |
1,930 | - |
|
Datasheet | 16-PowerBSOP (0.370", 9.40mm Width) | VIPOWER™ | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 60A | 7.7mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PowerSO-16 |
|
|
VN7010AJ-EIC PWR DRVR N-CHAN 1:1 PWRSSO16 |
4,713 | - |
|
Datasheet | 16-PowerLFSOP (0.154", 3.90mm Width) | VIPower™ | Tube | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 65A | 10mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-16 |
|
|
VN7016AJ-EIC PWR DRVR N-CHAN 1:1 PWRSSO16 |
4,773 | - |
|
Datasheet | 16-PowerLFSOP (0.154", 3.90mm Width) | VIPower™ | Tube | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 55A | 16mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-16 |
|
|
VN7020AJ-EIC PWR DRVR N-CHAN 1:1 PWRSSO16 |
4,729 | - |
|
Datasheet | 16-PowerLFSOP (0.154", 3.90mm Width) | VIPower™ | Tube | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 45A | 20mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-16 |
Power Distribution Switches, Load Drivers FAQ
What Power Distribution Switches, Load Drivers components can I source from EGOO?
You can browse available Power Distribution Switches, Load Drivers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Power Distribution Switches, Load Drivers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
