Voltage Reference
Browse available Voltage Reference components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL4050A50QDCKRIC VREF SHUNT 0.1% SC70-5 |
3,600 | - |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 5V | - | 15 mA | ±0.1% | 50ppm/°C | - | 93µVrms | - | - | 90 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-5 |
|
TLE2425CPSIC VREF GND REF 0.8% 8SO |
217 | - |
|
Datasheet | 8-SOIC (0.209", 5.30mm Width) | - | Bulk | Obsolete | Ground Reference (Virtual) | Fixed | 2.5V | - | 20 mA | ±0.8% | 20ppm/°C Typical | - | 100µVrms | 4V ~ 40V | - | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
|
|
TL4050A41QDCKRIC VREF SHUNT 0.1% SC70-5 |
4,298 | - |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 4.096V | - | 15 mA | ±0.1% | 50ppm/°C | - | 93µVrms | - | - | 78 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
TL4051A12QDCKRIC VREF SHUNT 0.1% SC70-5 |
1,692 | - |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.225V | - | 12 mA | ±0.1% | 50ppm/°C | - | 20µVrms | - | - | 65 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
TLE2425IDIC VREF GND REF 0.8% 8SOIC |
627 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Ground Reference (Virtual) | Fixed | 2.5V | - | 20 mA | ±0.8% | 20ppm/°C Typical | - | 100µVrms | 4V ~ 40V | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LT6656BCDC-1.25#TRMPBFIC VREF SERIES 0.2% 6DFN |
2,567 | - |
|
Datasheet | 6-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 1.25V | - | 5 mA | ±0.2% | 20ppm/°C | 30ppmp-p | 50µVrms | 2.2V ~ 18V | 1.5µA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
LT6656BCDC-2.048#TRMPBFIC VREF SERIES 0.2% 6DFN |
2,758 | - |
|
Datasheet | 6-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 2.048V | - | 5 mA | ±0.2% | 20ppm/°C | 30ppmp-p | - | 2.548V ~ 18V | 1.5µA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
LT6656BCDC-4.096#TRMPBFIC VREF SERIES 0.2% 6DFN |
1,090 | - |
|
Datasheet | 6-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 4.096V | - | 5 mA | ±0.2% | 20ppm/°C | 30ppmp-p | - | 4.596V ~ 18V | 1.5µA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
|
LM385AYZ-2.5VOLTAGE REFERENCE |
1,908 | - |
|
Datasheet | TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Active | Shunt | Fixed | 2.5V | - | 20 mA | ±3% | 20ppm/°C Typical | - | 120µVrms | - | - | 20 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
LM385AYM-2.5VOLTAGE REFERENCE |
925 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Bulk | Active | Shunt | Fixed | 2.5V | - | 20 mA | ±1.5% | ±20ppm/°C Typical | - | 120µVrms | - | - | 20 µA | -40°C ~ 70°C | - | - | Surface Mount | 8-SOIC |
|
|
LM385AYZ-1.2VOLTAGE REFERENCE |
889 | - |
|
Datasheet | TO-226-3, TO-92-3 (TO-226AA) | LM285-1.2 | Bulk | Active | Shunt | Fixed | 1.235V | - | 20 mA | ±2.02% | 20ppm/°C Typical | - | 60µVrms | - | - | 15 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|

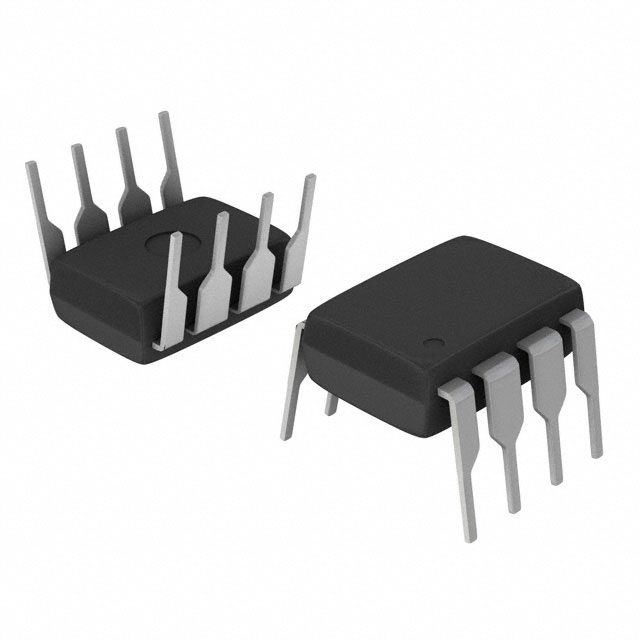

AD680JNIC V-REF 2.5V LP 8-DIP |
116 | - |
|
Datasheet | - | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MAX6129AEUK33VOLTAGE REFERENCE |
2,270 | - |
|
Datasheet | - | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
,TO-226_straightlead.jpg "TLE2426CLPE3")
|
TLE2426CLPE3IC VREF GND REF ADJ 1% TO92-3 |
496 | - |
|
Datasheet | TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Active | Ground Reference (Virtual) | Adjustable | 2V | 20 V | 20 mA | ±1% | 35ppm/°C Typical | - | 120µVrms | 4V ~ 40V | 400µA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
ADR365BUJZ-R2IC VREF SERIES 0.08% TSOT5 |
4,175 | - |
|
Datasheet | SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Series | Fixed | 5V | - | 5 mA | ±0.08% | 9ppm/°C | 12.8µVp-p | - | 5.3V ~ 15V | 190µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-5 |
|
LM385AYMX-2.5VOLTAGE REFERENCE |
5,000 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Bulk | Active | Shunt | Fixed | 2.5V | - | 20 mA | ±1.5% | ±20ppm/°C Typical | - | 120µVrms | - | - | 20 µA | -40°C ~ 70°C | - | - | Surface Mount | 8-SOIC |
|
|
ADR291GR-REEL7IC VREF PREC 2.5V 5MA OUT 8-SOIC |
5,000 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | XFET® | Bulk | Obsolete | Series | Fixed | 2.5V | - | 5 mA | ±0.24% | 25ppm/°C | 8µVp-p | - | 3V ~ 15V | 15µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LX432ISCIC VREF SHUNT ADJ 1% SOT23 |
1,936 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tube | Active | Shunt | Adjustable | 1.24V | 20 V | 20 mA | ±1% | - | - | - | - | - | 80 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23 |
|
|
ADR293GR-REEL7IC VREF PREC 5V 5MA OUT 8-SOIC |
1,861 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | XFET® | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-SOIC |
|
MAX6138BEXR12VOLTAGE REFERENCE |
2,380 | - |
|
Datasheet | SC-70, SOT-323 | - | Bulk | Obsolete | Shunt | Fixed | 1.2205V | - | 15 mA | ±0.2% | 25ppm/°C | - | 20µVrms | - | - | 60 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-3 |
Voltage Reference FAQ
What Voltage Reference components can I source from EGOO?
You can browse available Voltage Reference product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Voltage Reference parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
