Voltage Reference
Compare the current Voltage Reference Power Management (PMIC) selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

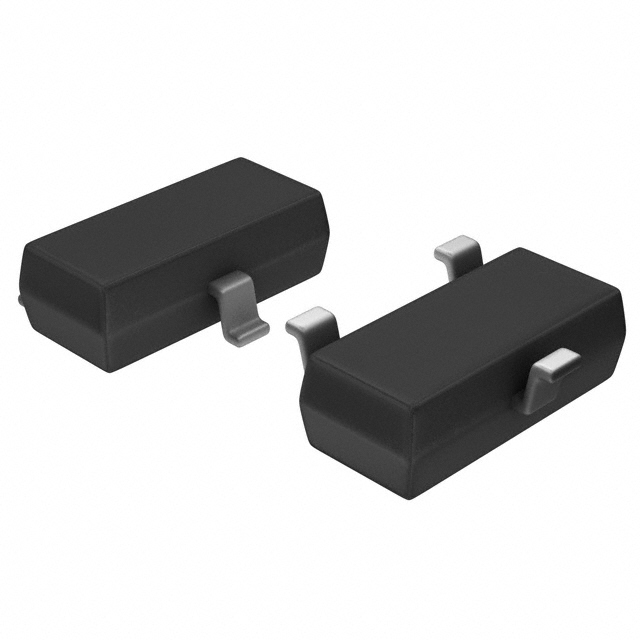

LM4040AELT-5.0IC VREF SHUNT 5V SOT23-3 |
4,918 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Shunt | Fixed | 5V | - | 15 mA | ±0.1% | 70ppm/°C | 10µVp-p | 95µVrms | - | - | 25 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
,TO-226_straightlead.jpg "LM236Z")
|
LM236ZIC VREF SHUNT 2% TO92-3 |
3,851 | - |
|
Datasheet | TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Obsolete | Shunt | Fixed | 2.49V | - | 10 mA | ±2% | - | - | - | - | - | 400 µA | -25°C ~ 85°C (TA) | - | - | Through Hole | TO-92-3 |
|
TSM1012AIDIC VREF SERIES 0.5% 8SO |
1,750 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series | Fixed | 1.25V | - | 2.5 mA | ±0.5% | - | - | - | 4.5V ~ 28V | 50mA | - | -40°C ~ 105°C (TA) | - | - | Surface Mount | 8-SOIC |
|
TS4041EILT-1.2IC VREF SHUNT 2% SOT23-3 |
2,064 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.225V | - | 12 mA | ±2% | 150ppm/°C | - | - | - | - | 70 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|

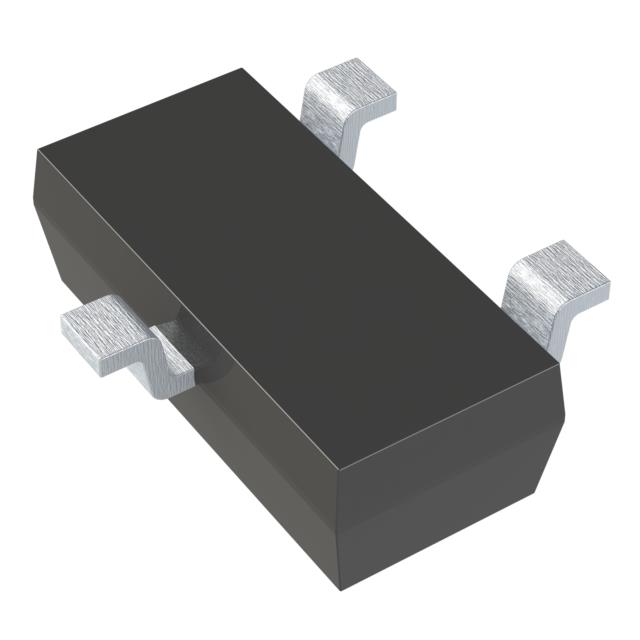

TS3330AMRIC VREF SERIES SOT23-3 |
3,392 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Series | Fixed | 3V | - | 5 mA | ±0.15% | 30ppm/°C | 67µVp-p | - | 1.8V ~ 5.5V | 10µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
TL1431ACDIC VREF SHUNT ADJ 0.25% 8SO |
3,338 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.25% | 90ppm/°C | - | - | - | - | 600 µA | -20°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
TSM1013IDTIC VREF SERIES 1% 8SO |
4,616 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 2.5V | - | 1 mA | ±1% | - | - | - | 4.5V ~ 28V | 50mA | - | 0°C ~ 105°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
TS3325AMRIC VREF SERIES SOT23-3 |
3,540 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Series | Fixed | 2.5V | - | 5 mA | ±0.15% | 30ppm/°C | 57µVp-p | - | 1.8V ~ 5.5V | 10µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
TS3333ACRIC VREF SERIES SC70 |
1,318 | - |
|
Datasheet | SC-70, SOT-323 | - | Bulk | Active | Series | Fixed | 3.3V | - | 5 mA | ±0.15% | 30ppm/°C | 73µVp-p | - | 1.8V ~ 5.5V | 10µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-323-3 |
|
|
TS3333AMRIC VREF SERIES SOT23-3 |
2,971 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Series | Fixed | 3.3V | - | 5 mA | ±0.15% | 30ppm/°C | 73µVp-p | - | 1.8V ~ 5.5V | 10µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
Voltage Reference FAQ
How can I narrow the current Voltage Reference selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Voltage Reference parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
