Voltage Reference
Compare the current Voltage Reference Power Management (PMIC) selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
REF3220AMDBVREPIC VREF SERIES 0.2% SOT23-6 |
2,549 | - |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Not For New Designs | Series | Fixed | 2.048V | - | 10 mA | ±0.2% | 40ppm/°C | 27µVp-p | 39µVrms | 2.098V ~ 5.5V | 120µA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
REF3240AMDBVREPIC VREF SERIES 0.2% SOT23-6 |
4,972 | - |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Not For New Designs | Series | Fixed | 4.096V | - | 10 mA | ±0.2% | 40ppm/°C | 53µVp-p | 78µVrms | 4.146V ~ 5.5V | 120µA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
REF3230AMDBVREPIC VREF SERIES 0.2% SOT23-6 |
3,152 | - |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Not For New Designs | Series | Fixed | 3V | - | 10 mA | ±0.2% | 40ppm/°C | 39µVp-p | 57µVrms | 3.05V ~ 5.5V | 120µA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
REF3225AMDBVREPIC VREF SERIES 0.2% SOT23-6 |
3,845 | - |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Not For New Designs | Series | Fixed | 2.5V | - | 10 mA | ±0.2% | 40ppm/°C | 33µVp-p | 48µVrms | 2.55V ~ 5.5V | 120µA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|

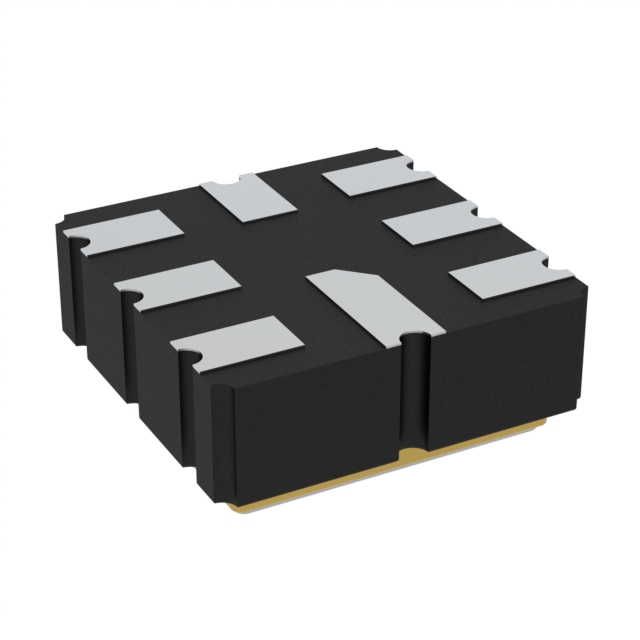

REF7033QFKHTIC VREF SERIES 8CLCC |
3,233 | - |
|
Datasheet | 8-CLCC | - | Tape & Reel (TR) | Active | Series | Fixed | 3.3V | - | 10 mA | ±0.025% | 2ppm/°C | 0.23ppmp-p | 0.35ppmrms | 3.7V ~ 18V | 7.5mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-LCCC (5x5) |
|
LM136-5.0-MW8IC VREF SHUNT 2% |
3,835 | - |
|
Datasheet | - | - | Bulk | Active | Shunt | Fixed | 5V | - | 10 mA | ±2% | - | - | - | - | - | 600 µA | -55°C ~ 125°C (TA) | - | - | - | - |
|
LM136AH-5.0/NOPBIC VREF SHUNT 1% TO46-3 |
3,698 | - |
|
Datasheet | TO-206AB, TO-46-3 Metal Can | - | Tube | Active | Shunt | Fixed | 5V | - | 10 mA | ±1% | - | - | - | - | - | 600 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-46-3 |
|
REF7040QFKHTIC VREF SERIES 8CLCC |
2,503 | - |
|
Datasheet | 8-CLCC | - | Tape & Reel (TR) | Active | Series | Fixed | 4V | - | 10 mA | ±0.025% | 2ppm/°C | 0.23ppmp-p | 0.35ppmrms | 4.496V ~ 18V | 7.5mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-LCCC (5x5) |
|
|
REF7030QFKHTIC VREF SERIES 8CLCC |
4,359 | - |
|
Datasheet | 8-CLCC | - | Tape & Reel (TR) | Active | Series | Fixed | 3V | - | 10 mA | ±0.025% | 2ppm/°C | 0.23ppmp-p | 0.35ppmrms | 3.7V ~ 18V | 7.5mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-LCCC (5x5) |
|
REF3140TDD2IC VREF SERIES 0.2% DIE |
2,912 | - |
|
Datasheet | Die | - | Tube | Obsolete | Series | Fixed | 4.096V | - | 10 mA | ±0.2% | 20ppm/°C | 53µVp-p | 78µVrms | 4.146V ~ 5.5V | 135µA | - | -40°C ~ 125°C (TA) | - | - | - | Die |
Voltage Reference FAQ
How can I narrow the current Voltage Reference selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Voltage Reference parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
