Voltage Reference
Browse available Voltage Reference components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM4040BIM7-5.0IC VREF SHUNT 0.2% SC70-5 |
2,947 | - |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 5V | - | 15 mA | ±0.2% | 100ppm/°C | - | 80µVrms | - | - | 80 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|

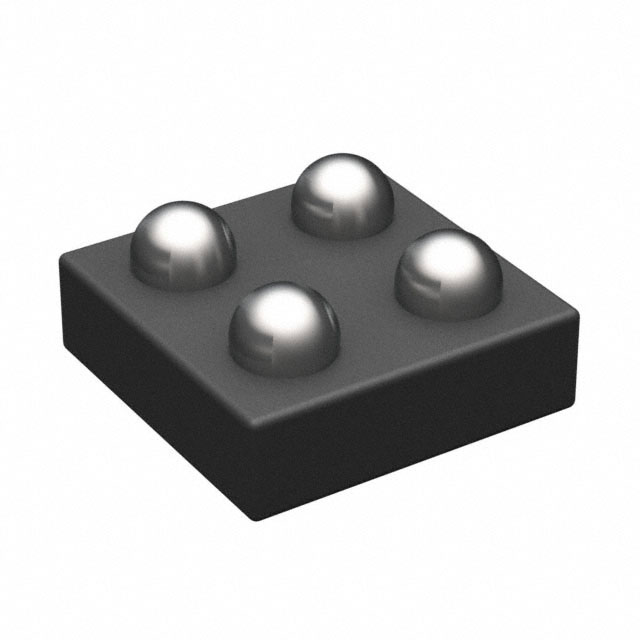

REF35300YBHR650-NA QUIESCENT CURRENT, 12-PPM |
2,332 | - |
|
Datasheet | 4-XFBGA, DSBGA | - | Tape & Reel (TR) | Active | Series | Fixed | 3V | - | 10 mA | ±0.05% | 12ppm/°C | 3.8ppmp-p | 0.7ppmrms | 3.25V ~ 6V | 2.6µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 4-DSBGA |
|
MAX6006BEUR-TIC VREF SHUNT 0.5% SOT23-3 |
1,820 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 1.25V | - | 2 mA | ±0.5% | 75ppm/°C | 30µVp-p | - | - | - | 1 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LM4041CIM3X-1.2IC VREF SHUNT 0.5% SOT23-3 |
1,104 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Not For New Designs | Shunt | Fixed | 1.225V | - | 12 mA | ±0.5% | 100ppm/°C | - | 20µVrms | - | - | 65 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LM431ACM3XIC VREF SHUNT ADJ 2.2% SOT23-3 |
3,061 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.495V | 37 V | 100 mA | ±2.2% | 50ppm/°C Typical | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
SC431CSKQTRTIC VREF SHUNT ADJ 0.5% SOT23-3 |
2,994 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.495V | 30 V | 130 µA | ±0.5% | - | - | - | - | - | 150 mA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LM4132EMFX-1.8/NOPBIC VREF SERIES 0.5% SOT23-5 |
4,787 | - |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Series | Fixed | 1.8V | - | 20 mA | ±0.5% | 30ppm/°C | 170µVp-p | - | 2.2V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
LM4132EMFX-2.0/NOPBIC VREF SERIES 0.5% SOT23-5 |
1,954 | - |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Series | Fixed | 2.048V | - | 20 mA | ±0.5% | 30ppm/°C | 190µVp-p | - | 2.448V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
LM4132EMFX-2.5/NOPBIC VREF SERIES 0.5% SOT23-5 |
2,407 | - |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 20 mA | ±0.5% | 30ppm/°C | 240µVp-p | - | 2.9V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
LM4132EMFX-3.0/NOPBIC VREF SERIES 0.5% SOT23-5 |
1,176 | - |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Series | Fixed | 3V | - | 20 mA | ±0.5% | 30ppm/°C | 285µVp-p | - | 3.4V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
LM4132EMFX-3.3/NOPBIC VREF SERIES 0.5% SOT23-5 |
1,660 | - |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Series | Fixed | 3.3V | - | 20 mA | ±0.5% | 30ppm/°C | 310µVp-p | - | 3.7V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
LM4132EMFX-4.1/NOPBIC VREF SERIES 0.5% SOT23-5 |
3,770 | - |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Series | Fixed | 4.096V | - | 20 mA | ±0.5% | 30ppm/°C | 350µVp-p | - | 4.496V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
LM4050QCIM3-2.5/NOPBIC VREF SHUNT 0.5% SOT23-3 |
4,873 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 2.5V | - | 15 mA | ±0.5% | 50ppm/°C | - | 41µVrms | - | - | 65 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
|
TL4050B10QDCKTIC VREF SHUNT 0.2% SC70-5 |
4,057 | - |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Shunt | Fixed | 10V | - | 15 mA | ±0.2% | 50ppm/°C | - | 150µVrms | - | - | 110 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
TL4050B41QDCKTIC VREF SHUNT 0.2% SC70-5 |
4,663 | - |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Shunt | Fixed | 4.096V | - | 15 mA | ±0.2% | 50ppm/°C | - | 93µVrms | - | - | 78 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
TL4050B50QDCKTIC VREF SHUNT 0.2% SC70-5 |
2,147 | - |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Shunt | Fixed | 5V | - | 15 mA | ±0.2% | 50ppm/°C | - | 93µVrms | - | - | 90 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
TL4051BQDCKTIC VREF SHUNT ADJ 0.2% SC70-5 |
3,747 | - |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Shunt | Adjustable | 1.212V | 10 V | 12 mA | ±0.2% | 50ppm/°C | - | 20µVrms | - | - | 70 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
ZR285F02TAIC VREF SHUNT 2% SOT23 |
3,294 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 2.5V | - | 20 mA | ±2% | 90ppm/°C | - | 60µVrms | - | - | 20 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LM285DR-1-2IC VREF SHUNT 1% 8SOIC |
4,229 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 20ppm/°C Typical | - | 60µVrms | - | - | 10 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
LM4041BELT-1.2IC VREF SHUNT 0.2% SOT23-3 |
2,265 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.225V | - | 12 mA | ±0.2% | 100ppm/°C | - | 60µVrms | - | - | 50 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
Voltage Reference FAQ
What Voltage Reference components can I source from EGOO?
You can browse available Voltage Reference product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Voltage Reference parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
