Voltage Reference
Browse available Voltage Reference components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD586SQIC VREF SERIES 0.2% 8CERDIP |
2,936 | - |
|
Datasheet | 8-CDIP (0.300", 7.62mm) | - | Tube | Active | Series | Fixed | 5V | - | 10 mA | ±0.2% | 20ppm/°C | 4µVp-p | - | 10.8V ~ 36V | 3mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
LM185WG-1.2/883IC VREF SHUNT 1.2V 10CFP |
1,140 | - |
|
Datasheet | 10-CSOIC (0.241", 6.12mm Width) | - | Tray | Active | Shunt | Fixed | 1.2V | - | 20 mA | ±1% | 150ppm/°C | - | - | 1.2V | - | 10 µA | -55°C ~ 125°C (TA) | - | - | Surface Mount | 10-CFP |
|
LM136AH-2.5/883IC VREF SHUNT 2.5V TO46-3 |
3,891 | - |
|
Datasheet | TO-206AB, TO-46-3 Metal Can | - | Bulk | Active | Shunt | Fixed | 2.5V | - | 10 mA | ±1% | - | - | - | - | - | 400 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-46-3 |
|
AD584SHIC VREF SERIES 0.3% TO99-8 |
3,037 | - |
|
Datasheet | TO-99-8 Metal Can | - | Bulk | Active | Series | Programmable | 2.5V, 5V, 7.5V, 10V | - | 10 mA | ±0.3% | 30ppm/°C | 50µVp-p | - | 4.5V ~ 30V | 1mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-99-8 |
|
5962-8686103XAIC VREF SERIES 0.4% TO52-3 |
2,512 | - |
|
Datasheet | TO-206AC, TO-52-3 Metal Can | - | Bulk | Active | Series | Fixed | 2.5V | - | 10 mA | ±0.4% | 10ppm/°C | - | - | 4.5V ~ 30V | 1.5mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-52-3 |
|
LT6654BXMS8-2.5#TRPBFIC VREF SERIESV 0.1% 8MSOP |
2,449 | - |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 10 mA | ±0.1% | 20ppm/°C | 1.5ppmp-p | 2ppmrms | 36V | 600µA | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | 8-MSOP |
|

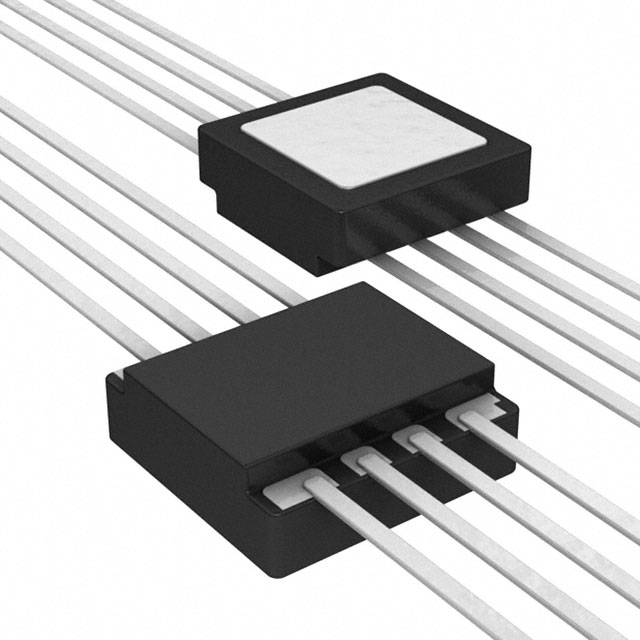

ADR225HFZIC VREF SERIES 2.4% 8FLATPACK |
3,708 | - |
|
Datasheet | 8-CFlatPack | - | Tube | Active | Series | Fixed | 2.5V | - | 10 mA | ±2.4% | 80ppm/°C | 25µVp-p | - | 3.3V ~ 16V | 60µA | - | -40°C ~ 210°C (TA) | - | - | Surface Mount | 8-FlatPack |
|
TL431TDA1IC VREF SHUNT ADJ 2.2% DIE |
2,195 | - |
|
Datasheet | Die | - | Tube | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±2.2% | - | - | - | - | - | 1 mA | - | - | - | - | Die |
|
|
TL1431VTDB1IC VREF SHUNT ADJ 0.4% DIE |
2,852 | - |
|
Datasheet | Die | - | Tube | Active | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.4% | - | - | - | - | - | 1 mA | - | - | - | - | - |
|
|
TL431TDA2IC VREF SHUNT ADJ 2.2% DIE |
2,675 | - |
|
Datasheet | Die | - | Tube | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±2.2% | - | - | - | - | - | 1 mA | - | - | - | - | Die |
|
|
TL1431VTDB2IC VREF SHUNT ADJ 0.4% DIE |
3,819 | - |
|
Datasheet | Die | - | Tube | Active | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.4% | - | - | - | - | - | 1 mA | - | - | - | - | - |
|
8503003YAIC VREF SERIES 14CDIP |
2,073 | - |
|
Datasheet | 14-CDIP (0.300", 7.62mm) | - | Tube | Obsolete | Series | Fixed | ±10V | - | 10 mA | - | 3ppm/°C | 50µVp-p | - | 13V ~ 18V | 17mA | - | -55°C ~ 125°C | - | - | Through Hole | 14-CERDIP |
|
AD2700UD/883BIC VREF SERIES 0.05% 14CDIP |
1,906 | - |
|
Datasheet | 14-CDIP (0.300", 7.62mm) | AD2700 | Tube | Obsolete | Series | Fixed | 10V | - | 10 mA | ±0.05% | 3ppm/°C | 50µVp-p | - | ±13V ~ 18V | 14mA | - | -55°C ~ 125°C | - | - | Through Hole | 14-CERDIP |
|
|
8503004YAIC VREF SERIES 14CDIP |
2,311 | - |
|
Datasheet | 14-CDIP (0.300", 7.62mm) | - | Tube | Obsolete | Series | Fixed | ±10V | - | 10 mA | - | 3ppm/°C | 50µVp-p | - | 13V ~ 18V | 17mA | - | -55°C ~ 125°C | - | - | Through Hole | 14-CERDIP |
|
|
AD2702UD/883BIC VREF SERIES 14CDIP |
4,839 | - |
|
Datasheet | 14-CDIP (0.300", 7.62mm) | - | Tube | Obsolete | Series | Fixed | ±10V | - | 10 mA | - | 3ppm/°C | 50µVp-p | - | 13V ~ 18V | 17mA | - | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | 14-CERDIP |
|
LM329DZ/NOPBIC VREF SHUNT 6.9V TO92-3 |
4,262 | - |
|
Datasheet | TO-226-3, TO-92-3 (TO-226AA) | - | Box | Obsolete | Shunt, Buried Zener | Fixed | 6.9V | - | 15 mA | -4.35%, +5.07% | 100ppm/°C | - | 7µVrms | - | - | 600 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
,TO-226_straightlead.jpg "ICL8069CCZQ")
|
ICL8069CCZQIC VREF SHUNT 1.626% TO92 |
1,792 | - |
|
Datasheet | TO-226-2, TO-92-2 (TO-226AC) | - | Bulk | Obsolete | Shunt | Fixed | 1.23V | - | 5 mA | ±1.626% | 50ppm/°C | - | 5µVp-p | - | - | 50 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92 |
|
MAX874CPAIC VREF SERIES 0.38% 8DIP |
3,175 | - |
|
Datasheet | 8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Series | Fixed | 4.096V | - | 400 µA | ±0.38% | 40ppm/°C | 90µVp-p | - | 4.3V ~ 20V | 15µA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
|
MAX875BCPAIC VREF SERIES 0.06% 8DIP |
1,499 | - |
|
Datasheet | 8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Series | Fixed | 5V | - | 10 mA | ±0.06% | 20ppm/°C | 9µVp-p | 14.5µVrms | 7V ~ 18V | 700µA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
|
MAX876BCPAIC VREF SERIES 0.05% 8DIP |
4,971 | - |
|
Datasheet | 8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Series | Fixed | 10V | - | 10 mA | ±0.05% | 20ppm/°C | 18µVp-p | 29µVrms | 12V ~ 18V | 700µA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
Voltage Reference FAQ
What Voltage Reference components can I source from EGOO?
You can browse available Voltage Reference product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Voltage Reference parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
