Voltage Reference
Browse available Voltage Reference components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM285QDR-1-2-MIC VREF SHUNT 1.235V |
4,964 | - |
|
Datasheet | - | - | Bulk | Obsolete | Shunt | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LM185BYH1.2-SMDIC VREF SHUNT 1.2V TO46-2 |
3,377 | - |
|
Datasheet | TO-46-2 Metal Can | - | Tray | Active | Shunt | Fixed | 1.2V | - | 20 mA | ±1% | 50ppm/°C | - | - | - | - | 10 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-2 |
|
LM285BXM-2.5IC VREF SHUNT 2.5V 8SOIC |
4,992 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Bulk | Obsolete | Shunt | Fixed | 2.5V | - | 20 mA | ±1.5% | 30ppm/°C | - | 120µVrms | - | - | 20 µA | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
LM185H-2.5-SMDIC VREF SHUNT 2.5V TO46-2 |
1,831 | - |
|
Datasheet | TO-46-2 Metal Can | LM185-2.5QML | Tray | Active | Shunt | Fixed | 2.5V | - | 20 mA | ±1.5% | 150ppm/°C | - | - | - | - | 20 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-2 |
|
|
LM285BXM-1.2IC VREF SHUNT 1.235V 8SOIC |
1,178 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Bulk | Obsolete | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 30ppm/°C | - | 60µVrms | - | - | 10 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|

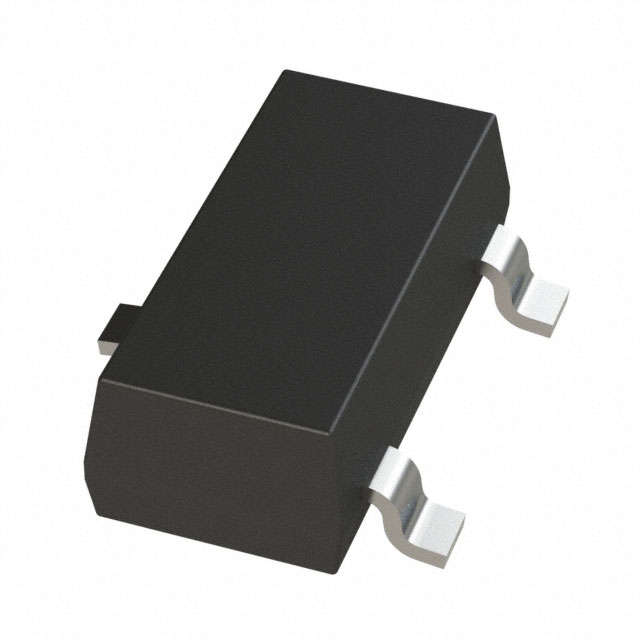

ATL432EBQDBZRIC VREF SHUNT 2.5V SOT23-3 |
3,399 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±1% | 92ppm/°C | - | - | - | - | 80 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
ATL432LIBQDBZR-SIC VREF SHUNT 2.5V SOT23-3 |
4,460 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Shunt | Adjustable | 2.5V | 36 V | 15 mA | ±0.5% | 66ppm/°C | - | - | - | - | 80 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LT1009MKGD1IC VREF SHUNT 2.5V |
3,103 | - |
|
Datasheet | Die | - | Tube | Active | Shunt | Adjustable | 2.5V | 2.5 V | 10 mA | ±0.2% | 35ppm/°C | - | - | - | - | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | Die |
|
|
LM136-2.5 MDSIC VREF SHUNT 2.5V DIE |
1,135 | - |
|
Datasheet | Die | - | Tube | Active | Shunt | Fixed | 2.5V | - | 10 mA | ±1% | 20ppm/°C | - | - | - | - | 400 µA | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
|
LM4050BIM3X-2.5/S5000274IC VREF SHUNT 0.2% SOT23-3 |
3,366 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Shunt | Fixed | 2.5V | - | 15 mA | ±0.2% | 50ppm/°C | - | 41µVrms | - | - | 65 µA | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
LM185WG-2.5/883IC VREF SHUNT 2.5V 10CFP |
4,428 | - |
|
Datasheet | 10-CSOIC (0.241", 6.12mm Width) | - | Tray | Active | Shunt | Fixed | 2.5V | - | 20 mA | - | - | - | - | - | - | 20 µA | -55°C ~ 125°C (TA) | - | - | Surface Mount | 10-CFP |
|
LM285MX-1.2IC VREF SHUNT 1.235V 8SOIC |
3,041 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Bulk | Obsolete | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 150ppm/°C | - | 60µVrms | - | - | 10 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
ATL432BIDBZR-SIC VREF SHUNT 2.5V SOT23-3 |
4,920 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.5% | 92ppm/°C | - | - | - | - | 80 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LM185H-1.2/883IC VREF SHUNT 1.2V TO46-2 |
2,478 | - |
|
Datasheet | TO-46-2 Metal Can | - | Tray | Active | Shunt | Fixed | 1.2V | - | 20 mA | ±1% | 50ppm/°C | - | - | - | - | 10 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-2 |
|
|
TL431AILPRE3-JIC VREF SHUNT ADJ 1% TO92-3 |
4,630 | - |
|
Datasheet | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Bulk | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±1% | - | - | - | - | - | 700 µA | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92-3 |
|
TL1431MFKBIC VREF SHUNT ADJ 0.4% 20CLCC |
2,718 | - |
|
Datasheet | 20-CLCC | - | Tube | Active | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.4% | - | - | - | 37V | - | 1 mA | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LCCC (8.89x8.89) |
|
|
TL1431MFKIC VREF SHUNT ADJ 0.4% 20CLCC |
2,701 | - |
|
Datasheet | 20-CLCC | - | Tube | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.4% | - | - | - | - | - | 1 mA | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LCCC (8.89x8.89) |
|
CAT8900D330TBGT3PRECISION ANALOG VOLTAGE REFEREN |
4,351 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Discontinued at Digi-Key | Series | Fixed | 3.3V | - | 10 mA | ±5% | 50ppm/°C | 50µVp-p | - | 2.7V ~ 5.5V | 800nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
CAT8900D180TBGT3PRECISION ANALOG VOLTAGE REFEREN |
4,652 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Discontinued at Digi-Key | Series | Fixed | 1.8V | - | 10 mA | ±5% | 50ppm/°C | 50µVp-p | - | 2.7V ~ 5.5V | 800nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
CAT8900C330TBGT3PRECISION ANALOG VOLTAGE REFEREN |
1,208 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Discontinued at Digi-Key | Series | Fixed | 3.3V | - | 10 mA | ±2.5% | 50ppm/°C | 50µVp-p | - | 2.7V ~ 5.5V | 800nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
Voltage Reference FAQ
What Voltage Reference components can I source from EGOO?
You can browse available Voltage Reference product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Voltage Reference parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
