Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BD80GC0JEFJ-E21A 8V, FIXED OUTPUT, HIGH-ACCURA |
2,414 | - |
|
Datasheet | BDxxGC0JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 8V | - | 0.92V @ 1A | 1A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
NCV8164CMTW180TAGIC REG LINEAR 1.8V 300MA 6WDFNW |
4,052 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5V | 1.8V | - | 0.255V @ 300mA | 300mA | 40 µA | - | 83dB ~ 61dB (100Hz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-WDFNW (2x2) |
|

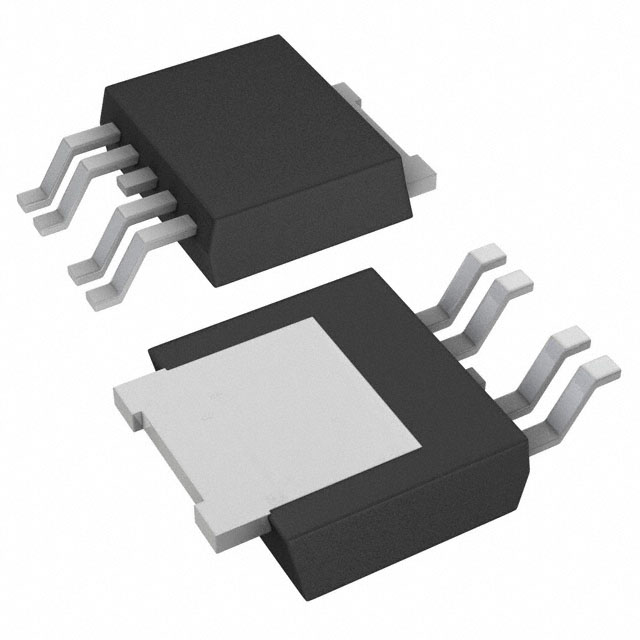

AP7583Q-50D4-13LDO CMOS LOWCURR TO252-4 T&R 2.5 |
4,020 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 300mA | 300mA | 4 µA | - | 70dB (100Hz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-4L |
|
|
AP7583Q-33D4-13LDO CMOS LOWCURR TO252-4 T&R 2.5 |
2,945 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3.3V | - | 0.7V @ 300mA | 300mA | 4 µA | - | 70dB (100Hz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-4L |
|
XC6220B301ER-GIC REG LINEAR 3V 1A 6USPC |
1,666 | - |
|
Datasheet | - | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.655V @ 1A | 1A | 18 µA | 108 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-USPC (1.8x2) |
|
|
XC6220B361ER-GIC REG LINEAR 3.6V 1A 6USPC |
2,496 | - |
|
Datasheet | - | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.6V | - | 0.655V @ 1A | 1A | 18 µA | 108 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-USPC (1.8x2) |
|
NCV8623MN-28R2GIC REG LINEAR 2.8V 150MA 6DFN |
2,482 | - |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 2.8V | - | 0.26V @ 150mA | 150mA | 200 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (3x3) |
|
XC6220B201MR-GIC REG LINEAR 2V 1A SOT25 |
3,922 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2V | - | 0.655V @ 1A | 1A | 18 µA | 108 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
AP7583AQ-50D4-13LDO CMOS LOWCURR TO252-4 T&R 2.5 |
3,163 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | - | 0.7V @ 300mA | 300mA | 6 µA | - | 70dB (100Hz) | Current Limit, Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252-4 (Type C) |
|
|
AP7583AQ-33D4-13LDO CMOS LOWCURR TO252-4 T&R 2.5 |
3,049 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3.3V | - | 0.5V @ 300mA | 300mA | 6 µA | - | 70dB (100Hz) | Current Limit, Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252-4 (Type C) |
|
|
NR1600DD330BE1S500MA LOW DROPOUT VOLTAGE REGULA |
4,757 | - |
|
Datasheet | NR1600 | SOT-23-6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.27V @ 500mA | 500mA | 125 µA | - | 75dB ~ 70dB (1kHz ~ 10kHz) | Enable, Power Good, Soft Start | - | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6-DD |
|
ADPL44001ATT+40V, 100MA, ULTRA-LOW QUIESCENT |
1,640 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tube | Active | Positive | Adjustable | 1 | 20V | 0.6V | 18V | 1.1V @ 100mA | 100mA | 15 µA | - | - | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-TDFN (3x3) |
|
|
XC6216B902MR-GIC REG LINEAR 9V 150MA SOT25 |
4,931 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 28V | 9V | - | 0.95V @ 100mA | 150mA | 9 µA | - | 30dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
BD60HC5JEFJ-E21.5A 6V, FIXED OUTPUT, HIGH-ACCU |
2,733 | - |
|
Datasheet | BDxxHC5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 6V | - | 0.93V @ 1.5A | 1.5A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD30HC5JEFJ-E21.5A 3V, FIXED OUTPUT, HIGH-ACCU |
1,872 | - |
|
Datasheet | BDxxHC5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 3V | - | 0.93V @ 1.5A | 1.5A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD70HC5JEFJ-E21.5A 7V, FIXED OUTPUT, HIGH-ACCU |
4,162 | - |
|
Datasheet | BDxxHC5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 7V | - | 0.93V @ 1.5A | 1.5A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD25HC5JEFJ-E21.5A 2.5V, FIXED OUTPUT, HIGH-AC |
2,195 | - |
|
Datasheet | BDxxHC5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 2.5V | - | 0.93V @ 1.5A | 1.5A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD15HC5JEFJ-E21.5A 1.5V, FIXED OUTPUT, HIGH-AC |
1,489 | - |
|
Datasheet | BDxxHC5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 1.5V | - | 0.93V @ 1.5A | 1.5A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
BD50HC5JEFJ-E21.5A 5V, FIXED OUTPUT, HIGH-ACCU |
3,859 | - |
|
Datasheet | BDxxHC5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 5V | - | 0.93V @ 1.5A | 1.5A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
XC6702DF01PR-GIC REG LINEAR 15V 300MA SOT89-5 |
1,831 | - |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 15V | - | 0.81V @ 100mA | 300mA | 90 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C (TA) | - | - | Surface Mount | SOT-89-5 |
