Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM317MQDCYRG3IC REG LIN POS ADJ 500MA SOT223 |
2,215 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable | 1 | 40V | 1.25V | 37V | - | 500mA | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-4 |
|
TPS78228DRVRG4IC REG LINEAR 2.8V 150MA 6WSON |
4,352 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.25V @ 150mA | 150mA | 1.3 µA | 8 µA | 40dB ~ 15dB (10Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
S-817B57AUA-CXUT2GIC REG LINEAR 5.7V 75MA SOT89-3 |
2,117 | - |
|
Datasheet | S-817 | TO-243AA | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 10V | 5.7V | - | 0.23V @ 10mA | 75mA | 2.5 µA | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-3 |
|
XC6503C39APR-GIC REG LIN 3.95V 500MA SOT89-5 |
4,529 | - |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.95V | - | 0.21V @ 300mA | 500mA | 30 µA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-5 |
|
|
XC6503D351PR-GIC REG LINEAR 3.5V 500MA SOT89-5 |
3,293 | - |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.5V | - | 0.23V @ 300mA | 500mA | 30 µA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-5 |
|
NJM12856DL3-25-TE1IC REG LINEAR 2.5V 1A TO252-5 |
1,879 | - |
|
Datasheet | - | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 2.5V | - | 0.2V @ 600mA | 1A | 600 µA | - | 73dB (1kHz) | Enable, Soft Start | Over Current, Over Temperature, Reverse Current | -40°C ~ 125°C | - | - | Surface Mount | TO-252-5 |
|
|
NJM12856DL3-18-TE1IC REG LINEAR 1.8V 1A TO252-5 |
2,518 | - |
|
Datasheet | - | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 1.8V | - | - | 1A | 600 µA | - | 76dB (1kHz) | Enable, Soft Start | Over Current, Over Temperature, Reverse Current | -40°C ~ 125°C | - | - | Surface Mount | TO-252-5 |
.JPG "UA78M33CKC")
|
UA78M33CKCIC REG LINEAR 3.3V 500MA TO220-3 |
1,955 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 25V | 3.3V | - | 2V @ 350mA | 500mA | - | - | 80dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
NJU7211U12IC REG LINEAR -1.2V 100MA SOT89 |
1,218 | - |
|
Datasheet | - | TO-243AA | Tube | Obsolete | Negative | Fixed | 1 | -12V | -1.2V | - | - | 100mA | - | - | - | - | - | -25°C ~ 75°C | - | - | Surface Mount | SOT-89 |
|
|
TL750L05CKCE3IC REG LINEAR 5V 150MA TO220-3 |
3,226 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 150mA | 150mA | 2 mA | 12 mA | 65dB (120Hz) | - | Over Current, Over Temperature, Over Voltage, Reverse Polarity | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
TPS76316QDBVRQ1IC REG LINEAR 1.6V 150MA SOT23-5 |
3,476 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 1.6V | - | - | 150mA | 100 µA | 140 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
TPS76325QDBVRQ1IC REG LINEAR 2.5V 150MA SOT23-5 |
2,705 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 2.5V | - | 0.6V @ 150mA | 150mA | 100 µA | 140 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|

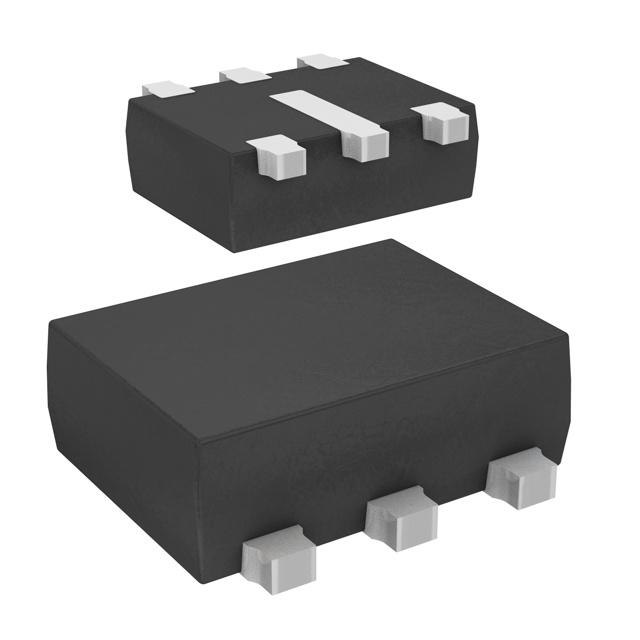

LD39015XG08RIC REG LINEAR 0.8V 150MA SOT666 |
2,097 | - |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 0.8V | - | 0.1V @ 100mA | 150mA | 50 µA | 70 µA | 65dB ~ 62dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-666 |
|
NJM79M05FAIC REG LINEAR -5V 500MA TO220F |
1,369 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | Negative | Fixed | 1 | -35V | -5V | - | - | 500mA | 5 mA | - | 58dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | TO-220F |
|
|
NJM79M06FAIC REG LINEAR -6V 500MA TO220F |
3,554 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | Negative | Fixed | 1 | -35V | -6V | - | - | 500mA | 5 mA | - | 57dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | TO-220F |
|
|
NJM79M15FAIC REG LINEAR -15V 500MA TO220F |
4,662 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | Negative | Fixed | 1 | -35V | -15V | - | - | 500mA | 6 mA | - | 70dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | TO-220F |
|
NJM2880U21-TE1#IC REG LINEAR 2.1V 300MA SOT89-5 |
3,652 | - |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 2.1V | - | 0.18V @ 100mA | 300mA | 180 µA | - | 70dB (1kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
|
NJM79M08FA#IC REG LINEAR -8V 500MA TO220F |
3,274 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | Negative | Fixed | 1 | -35V | -8V | - | - | 500mA | 5 mA | - | 55dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | TO-220F |
|
TPS71525TDB1IC REG LINEAR 2.5V 50MA DIE |
4,414 | - |
|
Datasheet | - | Die | Tube | Obsolete | Positive | Fixed | 1 | 24V | 2.5V | - | 0.42V @ 50mA (Typ) | 50mA | 12 µA | - | - | - | - | 0°C ~ 70°C | - | - | - | Die |
|
|
TPS71530TDB1IC REG LINEAR 3V 50MA DIE |
3,248 | - |
|
Datasheet | - | Die | Tube | Obsolete | Positive | Fixed | 1 | 24V | 3V | - | 0.42V @ 50mA (Typ) | 50mA | 12 µA | - | - | - | - | 0°C ~ 70°C | - | - | - | Die |
