Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP7343D-105FS4-7BIC REG LINEAR 1.05V 300MA 4DFN |
4,811 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 1.05V | - | 0.7V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | X2-DFN1010-4 |
|
|
AP7343D-27FS4-7BIC REG LINEAR 2.7V 300MA 4DFN |
2,808 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 2.7V | - | 0.3V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | X2-DFN1010-4 |
|
|
AP7343D-295FS4-7BIC REG LINEAR 2.95V 300MA 4DFN |
2,604 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 2.95V | - | 0.3V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | X2-DFN1010-4 |
|
TPS78430QDBVRQ1IC POWER |
3,597 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.115V @ 300mA | 300mA | 40 µA | - | 60dB ~ 30dB (1kHz ~ 1MHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
TPS78433QDBVRQ1IC POWER |
1,175 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.115V @ 300mA | 300mA | 40 µA | - | 60dB ~ 30dB (1kHz ~ 1MHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
MPQ2013AGG-AEC1-ZIC REG LINEAR POS ADJ 150MA 6QFN |
2,085 | - |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.215V | 15V | 1.1V @ 150mA | 150mA | - | - | 58dB ~ 41dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-QFN (2x2) |
|
TPS72215DBVTG4IC REG LINEAR 1.5V 50MA SOT23-5 |
1,900 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.1V @ 50mA | 50mA | 120 µA | 550 µA | 48dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
TPS79028DBVRG4IC REG LINEAR 2.8V 50MA SOT23-5 |
2,244 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 10V | 2.8V | - | 0.13V @ 50mA | 50mA | 28 µA | - | 85dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
NCV4269D1IC REG LINEAR 5V 150MA 8SOIC |
4,523 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 150mA | 250 µA | 3 mA | - | Reset | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
,TO-226_straightlead.jpg "MIC2950-06BZ")
|
MIC2950-06BZIC REG LIN POS ADJ 150MA TO92-3 |
2,881 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Tube | Discontinued at Digi-Key | Positive | Adjustable (Fixed) | 1 | 30V | 1.24V (5V) | 29V | 0.6V @ 150mA | 150mA | 300 µA | 8 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
|
MIC2950-06YZIC REG LIN POS ADJ 150MA TO92-3 |
3,838 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | Positive | Adjustable (Fixed) | 1 | 30V | 1.24V (5V) | 29V | 0.6V @ 150mA | 150mA | 300 µA | 8 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
LM2931AM-5.0IC REG LINEAR 5V 100MA 8SOIC |
1,546 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.3V @ 100mA | 100mA | 15 mA | 30 mA | 80dB (120Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
TLE4274GS V33 LGIC REG LIN 3.3V 400MA SOT223-4 |
3,218 | - |
|
Datasheet | OPTIREG™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 40V | 3.3V | - | 1.2V @ 300mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SOT223-4 |
|
|
TLE4266-2GS V33IC REG LIN 3.3V 150MA SOT223-4 |
2,450 | - |
|
Datasheet | OPTIREG™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 3.3V | - | 1.1V @ 100mA | 150mA | 60 µA | 4 mA | 68dB (100Hz) | Inhibit | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SOT223-4 |
|

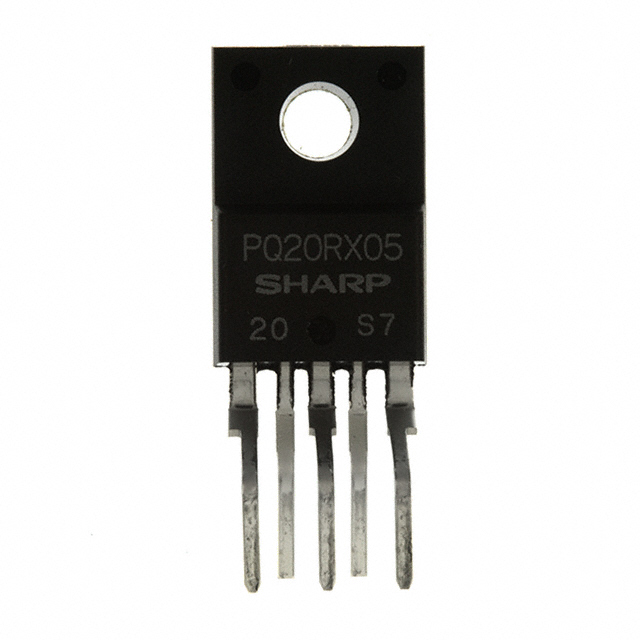

PQ20RX05IC REG LIN POS ADJ 500MA TO220-5 |
1,599 | - |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Adjustable | 1 | 24V | 3V | 20V | 0.5V @ 300mA | 500mA | 8 mA | - | 45dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-5 |
|
ZLDO330T8TCIC REG LINEAR 3.3V 300MA SM8 |
3,645 | - |
|
Datasheet | - | SOT-223-8 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 3.3V | - | 0.2V @ 300mA | 300mA | 1 mA | - | - | Low Battery Detection | Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SM8 |
|
|
ZLDO485T8TCIC REG LINEAR 4.85V 300MA SM8 |
4,430 | - |
|
Datasheet | - | SOT-223-8 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 4.85V | - | 0.2V @ 300mA | 300mA | 1 mA | - | - | Low Battery Detection | Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SM8 |
|
|
ZLDO500T8TCIC REG LINEAR 5V 300MA SM8 |
2,215 | - |
|
Datasheet | - | SOT-223-8 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 0.2V @ 300mA | 300mA | 1 mA | - | - | Low Battery Detection | Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SM8 |
|
NCP565D2T12IC REG LINEAR 1.2V 1.5A D2PAK |
4,785 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Positive | Fixed | 1 | 9V | 1.2V | - | - | 1.5A | 3 mA | - | 85dB ~ 75db (120Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
NCP1086D2T-033IC REG LINEAR 3.3V 1.5A D2PAK-3 |
4,280 | - |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 1.4V @ 1.5A | 1.5A | 10 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Surface Mount | D2PAK-3 |
