Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL780-05KCSIC REG LINEAR 5V 1.5A TO220-3 |
1,774 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 25V | 5V | - | 2V @ 1A | 1.5A | - | - | 85dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
L4989DIC REG LINEAR 5V 150MA 8SO |
3,779 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 31V | 5V | - | 0.4V @ 150mA | 150mA | 69 µA | 2 mA | 55dB (100Hz) | Enable, Reset Output, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | - | - | Surface Mount | 8-SOIC |
|

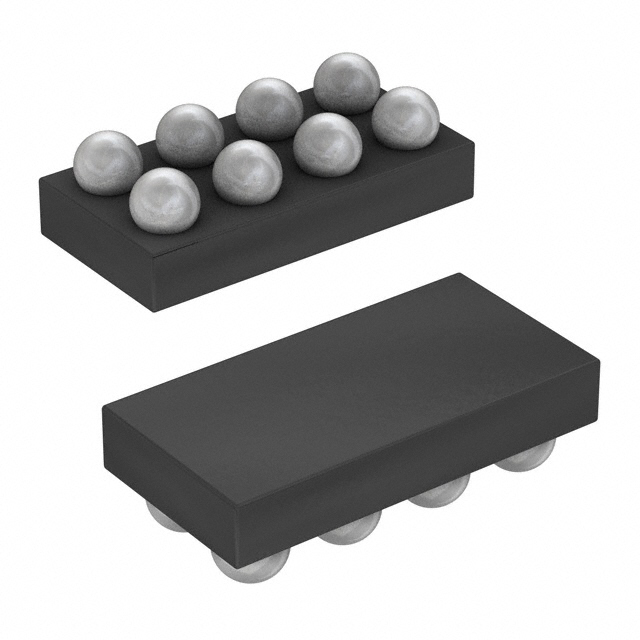

MAX8559EBAAA+TIC REG LINEAR 3.3V/3.3V 8UCSP |
4,571 | - |
|
Datasheet | - | 8-WFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 3.3V, 3.3V | - | 0.12V @ 100mA, 0.12V @ 100mA | 300mA, 300mA | 290 µA | - | 70dB ~ 54dB (10kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-UCSP (2.02x1.02) |
|
MAX8559ETAO1+TIC REG LINEAR 2.6V/1.85V 8TDFN |
2,518 | - |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 2.6V, 1.85V | - | 0.12V @ 100mA, - | 300mA, 300mA | 290 µA | - | 70dB ~ 54dB (10kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-TDFN (3x3) |
|
|
MAX8559ETA8A+TIC REG LINEAR 1.5V/3.3V 8TDFN |
1,878 | - |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.5V, 3.3V | - | -, 0.12V @ 100mA | 300mA, 300mA | 290 µA | - | 70dB ~ 54dB (10kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-TDFN (3x3) |
|
|
MAX8559EBAGG+TIC REG LINEAR 3V/3V 8UCSP |
4,836 | - |
|
Datasheet | - | 8-WFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 3V, 3V | - | 0.12V @ 100mA, 0.12V @ 100mA | 300mA, 300mA | 290 µA | - | 70dB ~ 54dB (10kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-UCSP (2.02x1.02) |
|
LM2936HVBMAX5.0IC REG LINEAR 5V 50MA 8SOIC |
1,549 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 60V | 5V | - | 0.4V @ 50mA | 50mA | 9 µA | 2.5 mA | 60dB (120Hz) | Shutdown | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
LP3879MRX-1.0IC REG LIN 1V 800MA 8SO POWERPAD |
4,236 | - |
|
Datasheet | - | 8-PowerSOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1V | - | - | 800mA | 1.4 mA | 2.2 mA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SO PowerPad |
|
|
LP38841MRX-ADJIC REG LIN POS ADJ 800MA 8SO |
3,535 | - |
|
Datasheet | - | 8-PowerSOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.5V | 0.56V | 1.5V | 0.21V @ 800mA | 800mA | 30 µA | 40 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SO PowerPad |
|
LD29300V50IC REG LINEAR 5V 3A TO220AB |
3,967 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 14V | 5V | - | 0.7V @ 3A | 3A | 50 mA | 100 mA | 64dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
R1514H120B-T1-JEIC REG LINEAR 12V 150MA SOT89-5 |
4,229 | - |
|
Datasheet | R1514x | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 12V | - | 0.4V @ 150mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
R1515S050B-E2-JEIC REG LINEAR 5V 50MA 6HSOP |
4,246 | - |
|
Datasheet | R1515x | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.4V @ 20mA | 50mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-HSOP-J |
|
|
R1515S033B-E2-JEIC REG LINEAR 3.3V 50MA 6HSOP |
3,543 | - |
|
Datasheet | R1515x | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.7V @ 20mA | 50mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-HSOP-J |
|
|
R1514H090B-T1-JEIC REG LINEAR 9V 150MA SOT89-5 |
3,976 | - |
|
Datasheet | R1514x | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 9V | - | 0.4V @ 150mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
R1514H033B-T1-JEIC REG LINEAR 3.3V 150MA SOT89-5 |
4,253 | - |
|
Datasheet | R1514x | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.7V @ 120mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
R1514H098B-T1-JEIC REG LINEAR 9.8V 150MA SOT89-5 |
4,335 | - |
|
Datasheet | R1514x | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 9.8V | - | 0.4V @ 150mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
R1514H030B-T1-JEIC REG LINEAR 3V 150MA SOT89-5 |
3,919 | - |
|
Datasheet | R1514x | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3V | - | 1V @ 120mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
R1514H080B-T1-JEIC REG LINEAR 8V 150MA SOT89-5 |
1,588 | - |
|
Datasheet | R1514x | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 8V | - | 0.4V @ 150mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
R1514H050B-T1-JEIC REG LINEAR 5V 150MA SOT89-5 |
3,187 | - |
|
Datasheet | R1514x | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.4V @ 150mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
R1514H040B-T1-JEIC REG LINEAR 4V 150MA SOT89-5 |
2,169 | - |
|
Datasheet | R1514x | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 4V | - | 0.5V @ 120mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
