Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC94355-GYCS-TRIC REG LINEAR 1.8V 500MA 6WLCSP |
3,253 | - |
|
Datasheet | Ripple Blocker™ | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.8V | - | 0.2V @ 500mA | 500mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 5MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-WLCSP (0.84x1.32) |
|
|
MIC94345-4YCS TRIC REG LINEAR 1.2V 500MA 6WLCSP |
2,166 | - |
|
Datasheet | Ripple Blocker™ | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.2V | - | 0.2V @ 500mA | 500mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 5MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-WLCSP (0.84x1.32) |
|
|
MIC94345-GYCS TRIC REG LINEAR 1.8V 500MA 6WLCSP |
4,070 | - |
|
Datasheet | Ripple Blocker™ | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.8V | - | 0.2V @ 500mA | 500mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 5MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-WLCSP (0.84x1.32) |
|
|
MIC94345-SYCS TRIC REG LINEAR 3.3V 500MA 6WLCSP |
4,853 | - |
|
Datasheet | Ripple Blocker™ | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 3.3V | - | 0.2V @ 500mA | 500mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 5MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-WLCSP (0.84x1.32) |
|
LD49100PU25RYIC REG LINEAR 2.5V 1A 6DFN |
3,054 | - |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.4V @ 1A | 1A | 50 µA | 300 µA | 65dB ~ 62dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-DFN (3x3) |
|
FAN1581T25IC REG LINEAR 2.5V 5A TO220-5 |
3,714 | - |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 1.18V @ 5A | 5A | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|

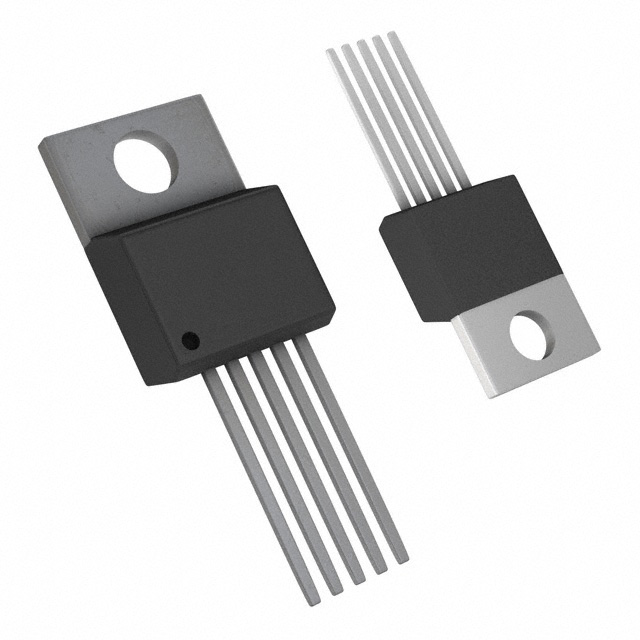

FAN1582TIC REG LINEAR POS ADJ 3A TO220-5 |
4,407 | - |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | Positive | Adjustable | 1 | 7V | 1.25V | 5.7V | 1.18V @ 3A | 3A | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | -65°C ~ 150°C | - | - | Through Hole | TO-220-5 |
|
|
FAN1582T15IC REG LINEAR 1.5V 3A TO220-5 |
1,893 | - |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | Positive | Fixed | 1 | 7V | 1.5V | - | 1.18V @ 3A | 3A | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | -65°C ~ 150°C | - | - | Through Hole | TO-220-5 |
|
|
FAN1582T25IC REG LINEAR 2.5V 3A TO220-5 |
3,246 | - |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 1.18V @ 3A | 3A | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | -65°C ~ 150°C | - | - | Through Hole | TO-220-5 |
|
LP38855T-0.8IC REG LINEAR 0.8V 1.5A TO220-5 |
1,552 | - |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 0.8V | - | 0.180V @ 1.5A | 1.5A | 300 µA | 15 mA | 80dB ~ 58dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LP38855T-1.2IC REG LINEAR 1.2V 1.5A TO220-5 |
1,022 | - |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.18V @ 1.5A | 1.5A | 300 µA | 15 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LP38858T-1.2IC REG LINEAR 1.2V 1.5A TO220-5 |
3,452 | - |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.18V @ 1.5A | 1.5A | 8.5 mA | 15 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
BA03CC0WTIC REG LINEAR 3V 1A TO220-5 |
1,197 | - |
|
Datasheet | - | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 3V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP-5 |
|
|
BA07CC0WTIC REG LINEAR 7V 1A TO220-5 |
2,629 | - |
|
Datasheet | - | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 7V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP-5 |
|
|
BA08CC0WTIC REG LINEAR 8V 1A TO220-5 |
4,556 | - |
|
Datasheet | - | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 8V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP-5 |
|

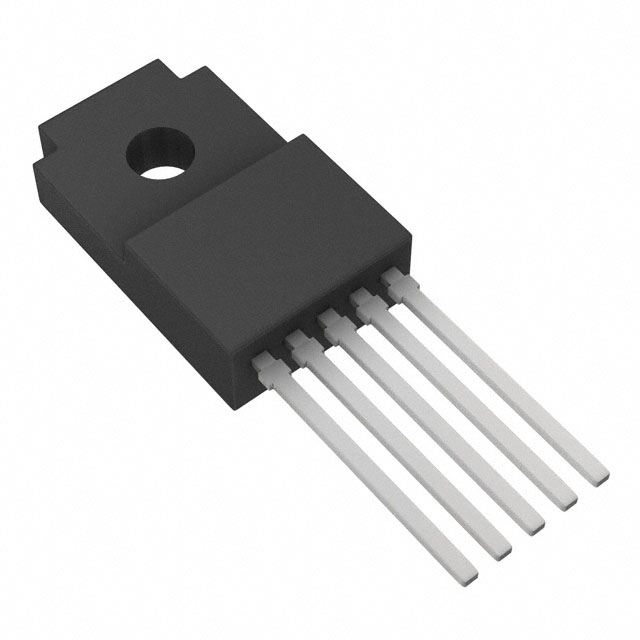

BAJ0CC0WTIC REG LINEAR 10V 1A TO220-5 |
1,892 | - |
|
Datasheet | - | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 10V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP-5 |
|
|
BA05CC0WT-V5IC REG LINEAR 5V 1A TO220-5 |
2,792 | - |
|
Datasheet | - | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 5V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP-5 |
|
BA08CC0WT-V5IC REG LINEAR 8V 1A TO220FP-3 |
3,286 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Active | Positive | Fixed | 1 | 25V | 8V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP |
|
|
BAJ2CC0WT-V5IC REG LINEAR 12V 1A TO220-5 |
3,052 | - |
|
Datasheet | - | TO-220-5 Full Pack | Tube | Active | Positive | Fixed | 1 | 25V | 12V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220FP-5 |
|
LP2989AIMM-2.5IC REG LINEAR 2.5V 500MA 8VSSOP |
4,403 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 2.5V | - | 0.65V @ 500mA | 500mA | 175 µA | 9 mA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
