Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP3875ET-ADJ/NOPBIC REG LIN POS ADJ 1.5A TO220-5 |
2,939 | - |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Adjustable | 1 | 7V | 1.22V | 6.4V | 0.55V @ 1.5A | 1.5A | 5 mA | 15 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LP3876ET-ADJ/NOPBIC REG LINEAR POS ADJ 3A TO220-5 |
3,299 | - |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Adjustable | 1 | 7V | 1.2V | 5.8V | 1.2V @ 3A | 3A | 5 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
LP3891ET-1.2/NOPBIC REG LINEAR 1.2V 800MA TO220-5 |
2,678 | - |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.4V @ 800mA | 800mA | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LP3891ET-1.5/NOPBIC REG LINEAR 1.5V 800MA TO220-5 |
2,494 | - |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.4V @ 800mA | 800mA | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LP3891ET-1.8/NOPBIC REG LINEAR 1.8V 800MA TO220-5 |
3,436 | - |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.4V @ 800mA | 800mA | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
LP3892ES-1.8/NOPBIC REG LINEAR 1.8V 1.5A DDPAK |
4,700 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.50V @ 1.5A | 1.5A | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3892ET-1.2/NOPBIC REG LINEAR 1.2V 1.5A TO220-5 |
4,192 | - |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.50V @ 1.5A | 1.5A | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LP3892ET-1.5/NOPBIC REG LINEAR 1.5V 1.5A TO220-5 |
1,861 | - |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.5V @ 1.5A | 1.5A | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LP3892ET-1.8/NOPBIC REG LINEAR 1.8V 1.5A TO220-5 |
3,727 | - |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.50V @ 1.5A | 1.5A | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LP3893ES-1.8/NOPBIC REG LIN 1.8V 3A DDPAK/TO263-5 |
4,055 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 1V @ 1A | 3A | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3893ET-1.2/NOPBIC REG LINEAR 1.2V 3A TO220-5 |
4,096 | - |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 1V @ 1A | 3A | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LP3893ET-1.5/NOPBIC REG LINEAR 1.5V 3A TO220-5 |
3,312 | - |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | 1V @ 1A | 3A | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LP3893ET-1.8/NOPBIC REG LINEAR 1.8V 3A TO220-5 |
3,275 | - |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 1V @ 1A | 3A | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
__5.jpg "NJU7231F28-TE1")
|
NJU7231F28-TE1IC REG LINEAR 2.8V 100MA SOT23-5 |
1,437 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 15V | 2.8V | - | 0.6V @ 20mA | 100mA | - | - | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 (MTP5) |
|
NJM78LR05BDIC REG LINEAR 5V 100MA 8DIP |
4,362 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Positive | Fixed | 1 | 18V | 5V | - | - | 100mA | 3.4 mA | - | 79dB (120Hz) | Reset | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
NJM78LR05DDIC REG LINEAR 5V 100MA 8DIP |
4,498 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Positive | Fixed | 1 | 18V | 5V | - | - | 100mA | 3.4 mA | - | 79dB (120Hz) | Reset | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

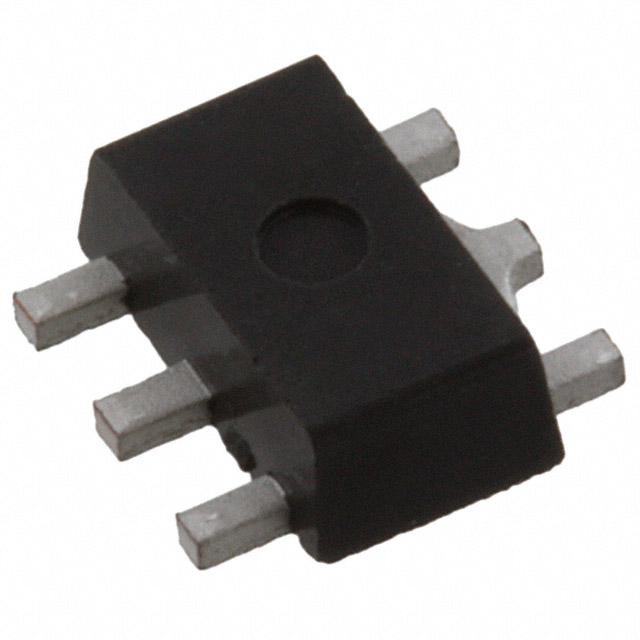

NJM78LR05DU-TE1IC REG LINEAR 5V 100MA SOT89 |
4,407 | - |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 5V | - | - | 100mA | 3.4 mA | - | 79dB (120Hz) | Reset | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-89 |
|
NJU7223F18IC REG LINEAR 1.8V 500MA TO220F |
3,542 | - |
|
Datasheet | - | TO-220-3 Full Pack | - | Obsolete | Positive | Fixed | 1 | 14V | 1.8V | - | 0.6V @ 150mA | 500mA | 60 µA | - | 57dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220F |
|
NJM317DL1-TE1IC REG LIN POS ADJ 1.5A TO252-3 |
3,487 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 40V | 1.25V | 37V | - | 1.5A | - | - | 80dB ~ 65dB (120Hz) | - | - | -40°C ~ 85°C | - | - | Surface Mount | TO-252-3 |
,TO-226_straightlead.jpg "NJU7211L30")
|
NJU7211L30IC REG LINEAR -3V 100MA TO92-3 |
1,810 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Tube | Obsolete | Negative | Fixed | 1 | -12V | -3V | - | 0.6V @ 20mA | 100mA | - | - | - | - | - | -25°C ~ 75°C | - | - | Through Hole | TO-92-3 |
