Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQ033Y053ZZHIC REG LINEAR 3.3V 5A SC63 |
2,570 | - |
|
Datasheet | - | TO-252-6, DPAK (5 Leads + Tab) | Tube | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 0.5V @ 5A | 5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Surface Mount | SC-63 |
|

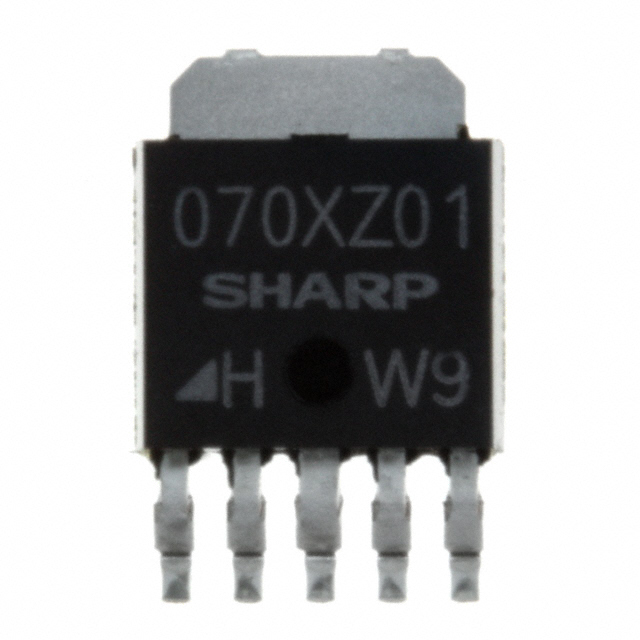

PQ070XZ01ZZHIC REG LINEAR POS ADJ 1A SC63 |
4,509 | - |
|
Datasheet | * | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

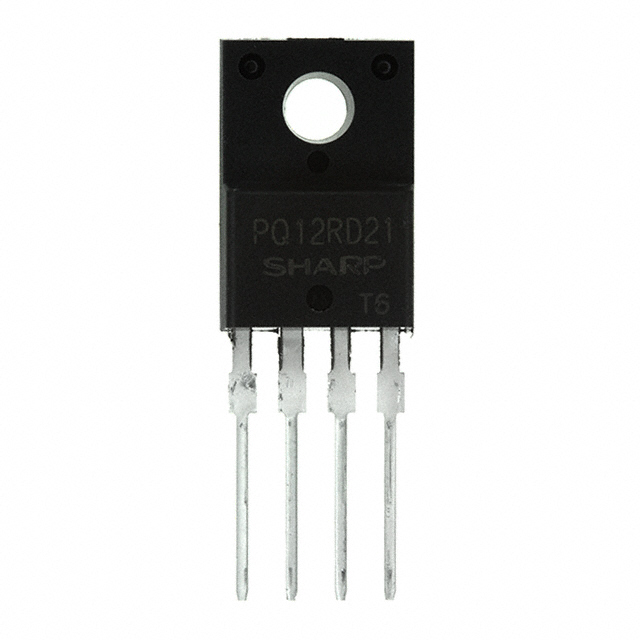

PQ12RD21J00HIC REG LINEAR 12V 2A TO220-4 |
1,835 | - |
|
Datasheet | * | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

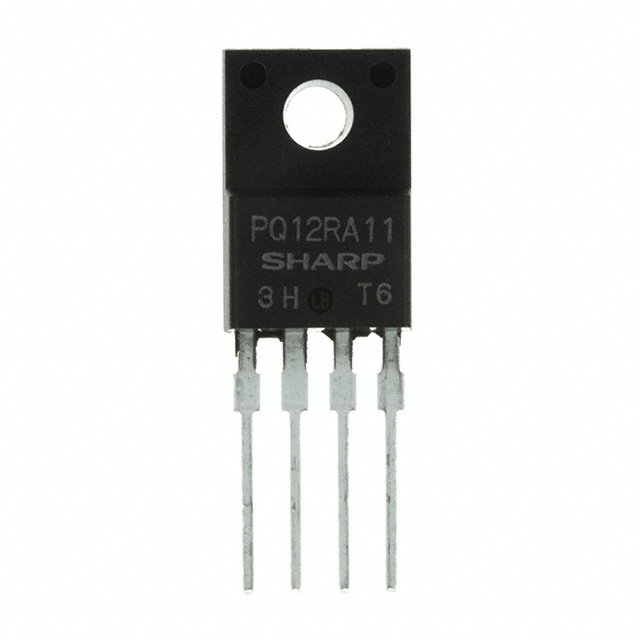

PQ12RA11J00HIC REG LINEAR 12V 1A TO220-4 |
2,648 | - |
|
Datasheet | - | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | - | 1A | 8 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|

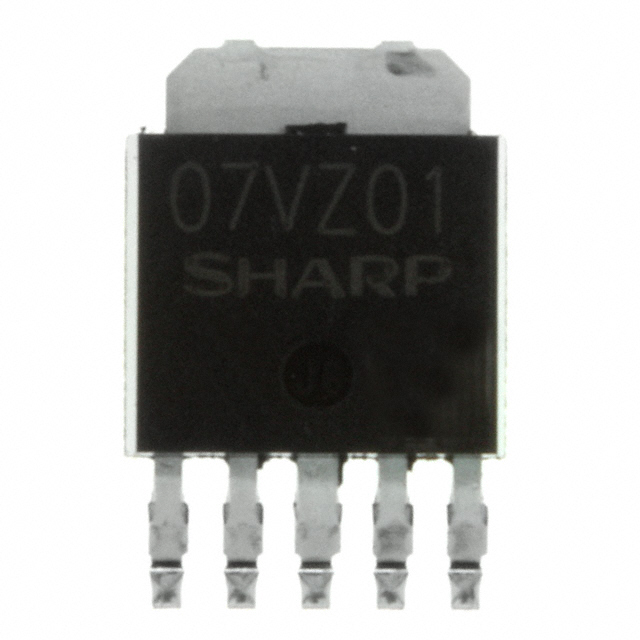

PQ07VZ012ZPHIC REG LINEAR POS ADJ 1A SC63 |
2,736 | - |
|
Datasheet | - | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | 0.5V @ 500mA | 1A | 7 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SC-63 |
|

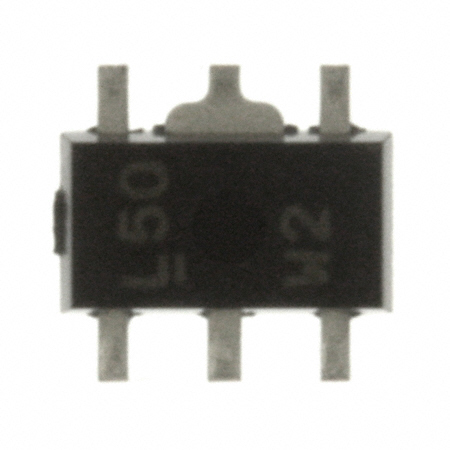

PQ1L503M2SPQIC REG LINEAR 5V 300MA SOT89 |
4,737 | - |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 5V | - | 0.7V @ 300mA | 300mA | 500 µA | - | - | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-89 |
|
PQ1K503M2ZPHIC REG LINEAR 5V 300MA SOT23L-6 |
2,476 | - |
|
Datasheet | - | SOT-23L-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 9V | 5V | - | 0.7V @ 300mA | 300mA | 500 µA | - | - | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23L-6 |
|
|
PQ1K333M2ZPHIC REG LIN 3.3V 300MA SOT23L-6 |
1,169 | - |
|
Datasheet | - | SOT-23L-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 9V | 3.3V | - | 0.7V @ 300mA | 300mA | 500 µA | - | - | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23L-6 |
|
|
PQ1K253M2ZPHIC REG LIN 2.5V 300MA SOT23L-6 |
1,418 | - |
|
Datasheet | - | SOT-23L-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 9V | 2.5V | - | 0.7V @ 300mA | 300mA | 500 µA | - | - | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23L-6 |
|
|
PQ09RD11J00HIC REG LINEAR 9V 1A TO220-4 |
2,585 | - |
|
Datasheet | - | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 9V | - | 0.5V @ 500mA | 1A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|

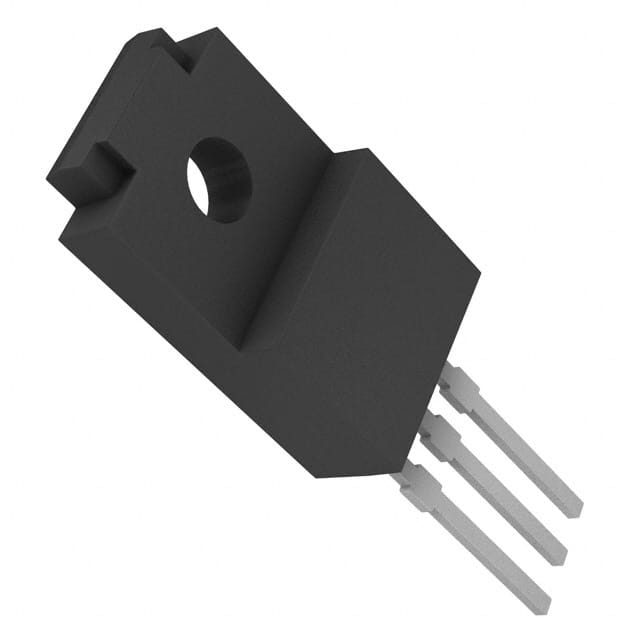

BA178M07TIC REG LINEAR 7V 500MA TO220FP |
3,669 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Active | Positive | Fixed | 1 | 22V | 7V | - | 2V @ 500mA (Typ) | 500mA | 4.5 mA | 6 mA | 71dB (120Hz) | - | - | -40°C ~ 85°C | - | - | Through Hole | TO-220FP |
|
LD29150PT18RIC REG LINEAR 1.8V 1.5A PPAK |
1,594 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14V | 1.8V | - | 0.7V @ 1.5A | 1.5A | 180 µA | 80 mA | 72dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | PPAK |
|
LP3881EMR-1.2/NOPBIC REG LIN 1.2V 800MA 8SO PWRPAD |
3,960 | - |
|
Datasheet | - | 8-PowerSOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.19V @ 800mA | 800mA | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SO PowerPad |
|
|
LP3881EMR-1.5/NOPBIC REG LIN 1.5V 800MA 8SO PWRPAD |
2,021 | - |
|
Datasheet | - | 8-PowerSOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.19V @ 800mA | 800mA | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SO PowerPad |
,TO-226_straightlead.jpg "NJM78L18L2A")
|
NJM78L18L2AIC REG LINEAR 18V 100MA TO92-3 |
1,223 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Tube | Obsolete | Positive | Fixed | 1 | 40V | 18V | - | - | 100mA | 6.5 mA | - | 59dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | TO-92-3 |
|
|
NJM78L09L2AIC REG LINEAR 9V 100MA TO92-3 |
3,055 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Tube | Obsolete | Positive | Fixed | 1 | 30V | 9V | - | - | 100mA | 6 mA | - | 65dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | TO-92-3 |
|
|
NJM79L09L2AIC REG LINEAR -9V 100MA TO92-3 |
2,607 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Tube | Obsolete | Negative | Fixed | 1 | -30V | -9V | - | - | 100mA | 6 mA | - | 67dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | TO-92-3 |
|
|
NJM79L12L2AIC REG LINEAR -12V 100MA TO92-3 |
2,871 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Tube | Obsolete | Negative | Fixed | 1 | -35V | -12V | - | - | 100mA | 6.5 mA | - | 64dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | TO-92-3 |
|
MIC29150-3.3BTIC REG LINEAR 3.3V 1.5A TO220-3 |
1,533 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 26V | 3.3V | - | 0.6V @ 1.5A | 1.5A | - | - | - | - | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
MIC29150-3.3BUIC REG LINEAR 3.3V 1.5A TO263-3 |
2,053 | - |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Positive | Fixed | 1 | 26V | 3.3V | - | 0.6V @ 1.5A | 1.5A | - | - | - | - | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Surface Mount | TO-263-3 |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ
What Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components can I source from EGOO?
You can browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
