Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

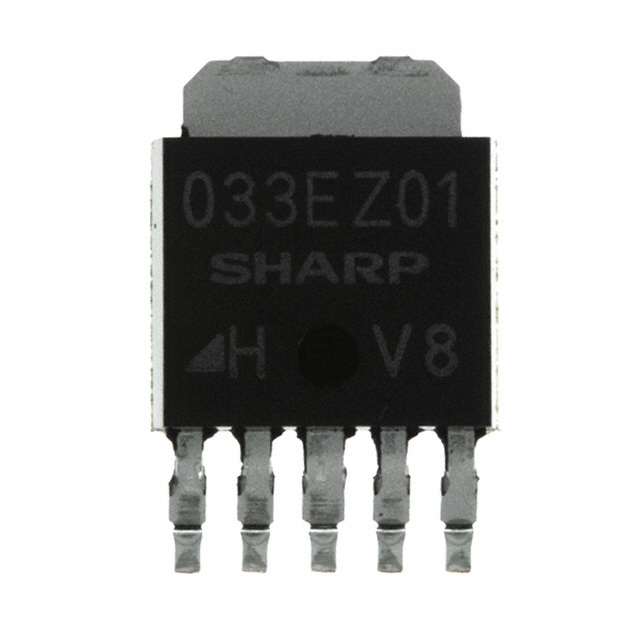

PQ033EZ01ZPHIC REG LINEAR 3.3V 1A SC63 |
4,824 | - |
|
Datasheet | - | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 3.3V | - | 0.5V @ 500mA | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-63 |
|

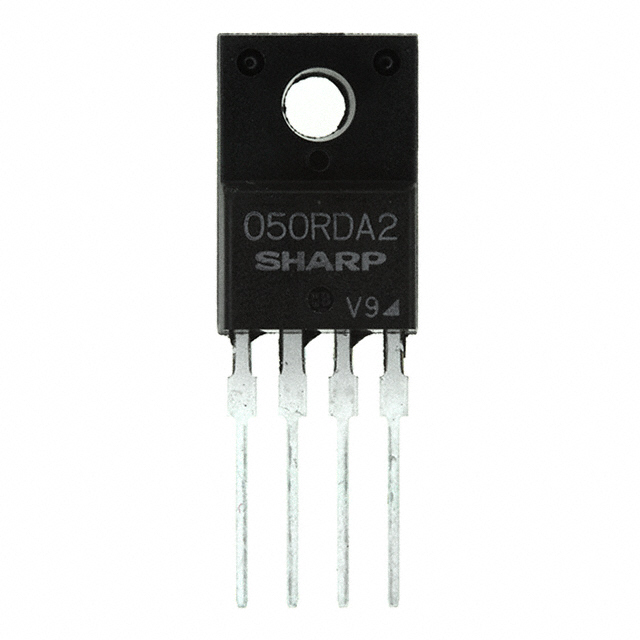

PQ050RDA2SZHIC REG LINEAR 5V 2A TO220-4 |
1,751 | - |
|
Datasheet | - | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 1V @ 2A | 2A | 8 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220-4 |
|
PQ05DZ1UJ00HIC REG LINEAR 5V 1A SC63 |
1,282 | - |
|
Datasheet | - | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 24V | 5V | - | 0.5V @ 500mA | 1A | 10 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Surface Mount | SC-63 |
|

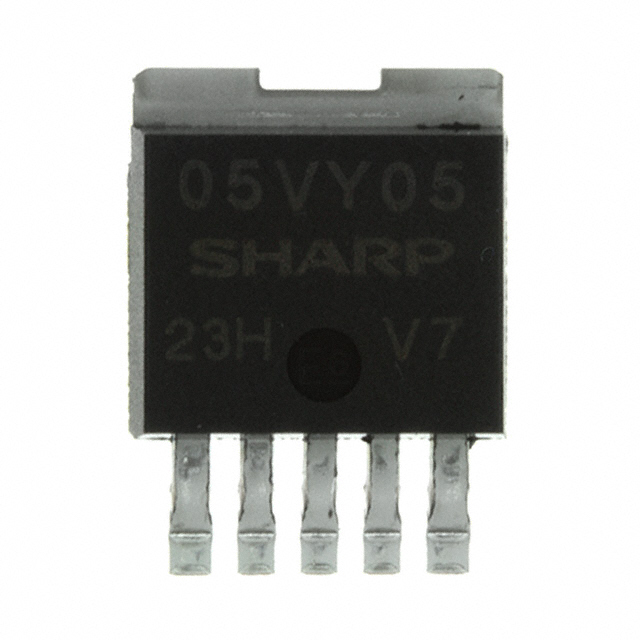

PQ05VY053ZPHIC REG LINEAR POS ADJ 5A TO263 |
4,157 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.5V | 5V | 0.5V @ 5A | 5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Surface Mount | TO-263 |
|

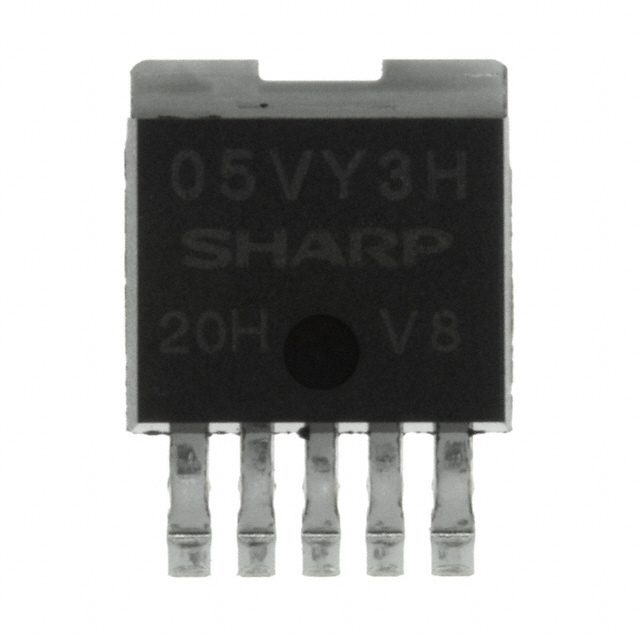

PQ05VY3H3ZPHIC REG LINEAR POS ADJ 3.5A TO263 |
3,938 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.5V | 5V | 0.5V @ 3.5A | 3.5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Surface Mount | TO-263 |
|

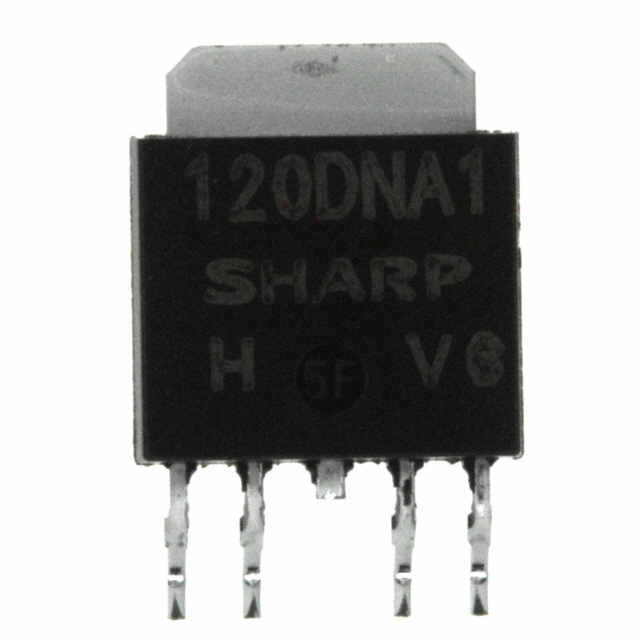

PQ120DNA1ZPHIC REG LINEAR 12V 1A SC63 |
2,223 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 24V | 12V | - | 0.5V @ 500mA | 1A | 8 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-63 |
|
MIC29311-5.1WTIC REG LINEAR 5.1V 3A TO220-5 |
2,300 | - |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | Positive | Fixed | 1 | 8V | 5.1V | - | 1V @ 3A | 3A | 20 mA | 150 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | 0°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
LM7805ACTIC REG LINEAR 5V 1A TO220-3 |
3,830 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A (Typ) | 1.5A | 8 mA | - | 73dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
NCP3335ADM180R2GIC REG LINEAR 1.8V 500MA MICRO8 |
3,251 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 1.8V | - | 0.13V @ 500mA | 500mA | 190 µA | 14 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
NCP5500DT33RKGIC REG LINEAR 3.3V 500MA DPAK-5 |
3,766 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 0.7V @ 500mA | 500mA | 500 µA | 20 mA | 75dB ~ 70dB (120hZ ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | DPAK-5 |
|
NCV4264ST50T3GIC REG LINEAR 5V 100MA SOT223 |
4,077 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 100mA | 400 µA | - | 67dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | SOT-223 (TO-261) |
|
|
NCV4276ADT33RKGIC REG LINEAR 3.3V 400MA DPAK-5 |
4,087 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 3.3V | - | - | 400mA | 200 µA | 35 mA | 70dB (100Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
ISL9000AIRBCZIC REG LINEAR 1.5V/1.8V 10DFN |
3,203 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 1.5V, 1.8V | - | -, - | 300mA, 300mA | 32 µA | 52 µA | -, 90db ~ 50dB (1kHz ~ 100kHz) | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRBCZ-TIC REG LINEAR 1.5V/1.8V 10DFN |
2,757 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.5V, 1.8V | - | -, - | 300mA, 300mA | 32 µA | 52 µA | -, 90db ~ 50dB (1kHz ~ 100kHz) | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRBJZ-TIC REG LINEAR 1.5V/2.8V 10DFN |
3,178 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.5V, 2.8V | - | -, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRBLZ-TIC REG LINEAR 1.5V/2.9V 10DFN |
2,616 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.5V, 2.9V | - | -, 0.325V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRGCZ-TIC REG LINEAR 1.8V/2.7V 10DFN |
2,548 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.8V, 2.7V | - | -, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | 90db ~ 50dB (1kHz ~ 100kHz), - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRGPZ-TIC REG LINEAR 1.85V/2.7V 10DFN |
3,893 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.85V, 2.7V | - | 0.5V @ 300mA, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
ISL9000AIRJCZIC REG LINEAR 1.8V/2.8V 10DFN |
2,820 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 1.8V, 2.8V | - | -, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | 90db ~ 50dB (1kHz ~ 100kHz), - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9000AIRJCZ-TIC REG LINEAR 1.8V/2.8V 10DFN |
1,421 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 6.5V | 1.8V, 2.8V | - | -, 0.4V @ 300mA | 300mA, 300mA | 32 µA | 52 µA | 90db ~ 50dB (1kHz ~ 100kHz), - | Enable, Power On Reset | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ
What Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components can I source from EGOO?
You can browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
