Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV8674DS120GIC REG LINEAR 12V 350MA D2PAK |
4,865 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Positive | Fixed | 1 | 45V | 12V | - | 0.6V @ 350mA | 350mA | 42 µA | - | 67dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-3 |
|
|
NCV8674DS120R4GIC REG LINEAR 12V 350MA D2PAK |
3,742 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 12V | - | 0.6V @ 350mA | 350mA | 42 µA | - | 67dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-3 |
|
L4993DIC REG LINEAR 5V 150MA 8SO |
3,114 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.4V @ 150mA | 150mA | 125 µA | 2 mA | 55dB (100Hz) | Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
L4995KIC REG LIN 5V 500MA POWERSSO-24 |
3,344 | - |
|
Datasheet | - | 24-PowerBSOP (0.295", 7.50mm Width) | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.5V @ 400mA | 500mA | 160 µA | 2.7 mA | 55dB (100Hz) | Enable, Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PowerSSO-24 |
|
|
L4988DIC REG LINEAR 5V 200MA 8SO |
2,380 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.5V @ 200mA | 200mA | 150 µA | 2.5 mA | 60dB (100Hz) | Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
L4993MDIC REG LINEAR 5V 150MA 20SO |
4,867 | - |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.4V @ 150mA | 150mA | 125 µA | 2 mA | 55dB (100Hz) | Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 20-SO |
|
L4995JIC REG LIN 5V 500MA POWERSSO-12 |
4,198 | - |
|
Datasheet | - | PowerSSO-12 | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.5V @ 400mA | 500mA | 160 µA | 2.7 mA | 55dB (100Hz) | Enable, Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PowerSSO-12 |
|
|
L4995AJIC REG LIN 5V 500MA POWERSSO-12 |
1,387 | - |
|
Datasheet | - | PowerSSO-12 | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.5V @ 400mA | 500mA | 160 µA | 2.7 mA | 55dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PowerSSO-12 |
|
LX8213-00ISEIC REG LIN POS ADJ 300MA SOT23-5 |
1,341 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 1.2V | 5.5V | 0.3V @ 300mA | 300mA | 90 µA | - | 68dB ~ 54dB (100Hz ~ 10kHz) | Enable | Over Temperature, Short Circuit, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|

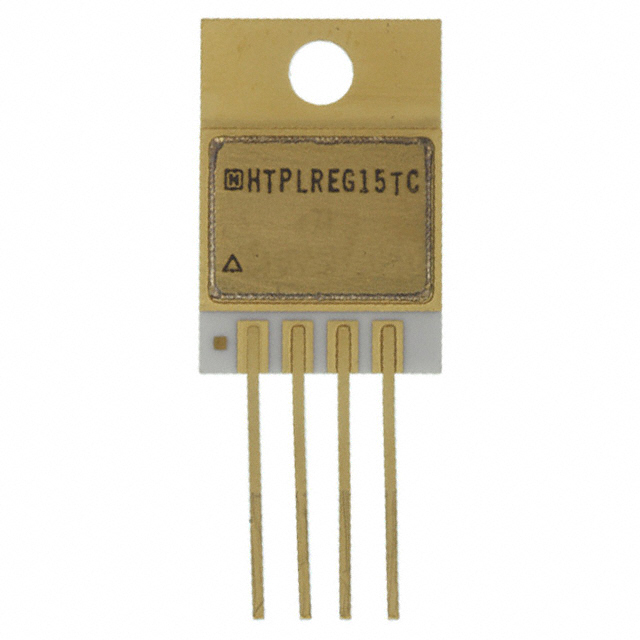

HTPLREG15TCIC REG LIN 15V 500MA 4PIN PWR |
1,546 | - |
|
Datasheet | - | 4-SIP | Bulk | Active | Positive | Fixed | 1 | 28V | 15V | - | 3V @ 250mA | 500mA | 1.5 mA | - | 66dB (120Hz) | Enable | Short Circuit | -55°C ~ 225°C | - | - | Through Hole | Hermetic 4-Pin Power |
|
HTPLREG10TCIC REG LIN 10V 500MA 4PIN PWR |
2,709 | - |
|
Datasheet | - | 4-SIP | Bulk | Active | Positive | Fixed | 1 | 28V | 10V | - | 3V @ 250mA | 500mA | 1.5 mA | - | 66dB (120Hz) | Enable | Short Circuit | -55°C ~ 225°C | - | - | Through Hole | Hermetic 4-Pin Power |
|
|
HTPLREG12TCIC REG LIN 12V 500MA 4PIN PWR |
3,904 | - |
|
Datasheet | - | 4-SIP | Bulk | Active | Positive | Fixed | 1 | 28V | 12V | - | 3V @ 250mA | 500mA | 1.5 mA | - | 66dB (120Hz) | Enable | Short Circuit | -55°C ~ 225°C | - | - | Through Hole | Hermetic 4-Pin Power |
|
FAN2564UMP15XIC REG LINEAR 1.5V 300MA 6UMLP |
2,396 | - |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.5V | - | 0.16V @ 300mA | 300mA | 75 µA | 200 µA | 60dB (1kHz) | Enable | Over Temperature, Short Circuit, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | 6-UMLP (2x2) |
|
|
PQ1LA335MSPQIC REG LINEAR 3.3V 300MA SOT89 |
3,266 | - |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 15V | 3.3V | - | 0.7V @ 300mA | 300mA | 800 µA | - | 55dB (400Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89 |
|
MAX8840ELT45+TIC REG LINEAR 4.5V 150MA 6UDFN |
4,145 | - |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 4.5V | - | 0.12V @ 120mA (Typ) | 150mA | 90 µA | - | 78dB ~ 54dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-µDFN (1.5x1) |
|
TA48015BF(T6L1,NQ)IC REG LINEAR 1.5V 1A PW-MOLD |
1,928 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 1.5V | - | 1.9V @ 1A (Typ) | 1A | 1.7 mA | 20 mA | 65dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | PW-MOLD |
|
|
TA48018BF(T6L1,NQ)IC REG LINEAR 1.8V 1A PW-MOLD |
4,206 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 1.8V | - | 1.6V @ 1A (Typ) | 1A | 1.7 mA | 20 mA | 66dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | PW-MOLD |
|
|
TA48LS00F(TE85L,F)IC REG LINEAR POS ADJ 300MA PS8 |
2,244 | - |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 14V | 1.5V | 5V | 0.6V @ 300mA | 300mA | 1.7 mA | 10 mA | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | PS-8 (2.9x2.4) |
|
TCR5SB30A(T5L,F,T)IC REG LINEAR 3V 150MA SMV |
1,603 | - |
|
Datasheet | TCR5SB | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3V | - | 0.19V @ 50mA | 150mA | 75 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
|
TCR5SB33A(T5L,F,T)IC REG LINEAR 3.3V 150MA SMV |
4,285 | - |
|
Datasheet | TCR5SB | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.19V @ 50mA | 150mA | 75 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SMV |
