Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV86602BDT50RKGIC REG LINEAR 5V 150MA DPAK-5 |
2,397 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 150mA | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
|
NCV86603BDT33RKGIC REG LINEAR 3.3V 150MA DPAK-5 |
4,686 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | - | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
|
NCV86603BDT50RKGIC REG LINEAR 5V 150MA DPAK-5 |
3,237 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 150mA | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
|
NCV86604BDT50RKGIC REG LINEAR 5V 150MA DPAK-5 |
1,130 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 150mA | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
_4040251^B.jpg "TPS7A3301KC")
|
TPS7A3301KCIC REG LIN NEG ADJ 1A TO220-7 |
2,939 | - |
|
Datasheet | - | TO-220-7 | Tube | Obsolete | Negative | Adjustable | 1 | -36V | -1.18V | -33V | 0.8V @ 1A | 1A | 100 µA | 950 µA | 72dB (10kHz) | Enable, Soft Start | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220-7 |
|
PT7M8216B33XZEXIC REG LINEAR 3.3V 300MA 4UDFN |
2,303 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.15V @ 150mA (Typ) | 300mA | 65 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1.0x1.0) |
|
|
PT7M8216B28XZEXIC REG LINEAR 2.8V 300MA 4UDFN |
1,700 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.15V @ 150mA (Typ) | 300mA | 65 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1.0x1.0) |
|
|
PT7M8216B30XZEXIC REG LINEAR 3V 300MA 4UDFN |
4,593 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.15V @ 150mA (Typ) | 300mA | 65 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1.0x1.0) |
|
NCP4586DSN12T1GIC REG LINEAR 1.2V 150MA SOT23-5 |
4,865 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 1.2V | - | 1V @ 150mA | 150mA | 58 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NCP4586DSN33T1GIC REG LINEAR 3.3V 150MA SOT23-5 |
1,547 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.51V @ 150mA | 150mA | 58 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
NCP4586DSN50T1GIC REG LINEAR 5V 150MA SOT23-5 |
4,139 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 5V | - | 0.37V @ 150mA | 150mA | 58 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NCP4624DSN50T1GIC REG LINEAR 5V 150MA SOT23-5 |
3,053 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 11V | 5V | - | 0.76V @ 150mA | 150mA | 3.7 µA | - | 15dB (1kHz) | Enable | Over Current, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|

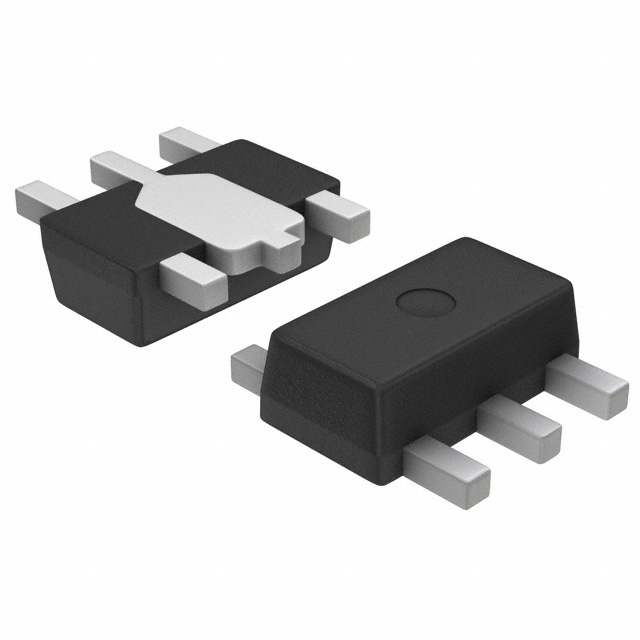

NCP4687DH15T1GIC REG LINEAR 1.5V 500MA SOT89-5 |
1,850 | - |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 1.5V | - | 0.48V @ 500mA | 500mA | 115 µA | - | 75dB ~ 70dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
|
NCP4687DH25T1GIC REG LINEAR 2.5V 500MA SOT89-5 |
3,092 | - |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 2.5V | - | 0.34V @ 500mA | 500mA | 115 µA | - | 75dB ~ 70dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
|
NCP4687DH33T1GIC REG LINEAR 3.3V 500MA SOT89-5 |
4,911 | - |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 3.3V | - | 0.32V @ 500mA | 500mA | 115 µA | - | 75dB ~ 70dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
NCP4687DMX25TCGIC REG LINEAR 2.5V 500MA 6XDFN |
2,281 | - |
|
Datasheet | - | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 2.5V | - | 0.34V @ 500mA | 500mA | 115 µA | - | 75dB ~ 70dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-XDFN (1.2x1.2) |
|
|
NCP4687DMX33TCGIC REG LINEAR 3.3V 500MA 6XDFN |
3,670 | - |
|
Datasheet | - | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 3.3V | - | 0.32V @ 500mA | 500mA | 115 µA | - | 75dB ~ 70dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-XDFN (1.2x1.2) |
|
|
NCP4687DSN28T1GIC REG LINEAR 2.8V 500MA SOT23-5 |
2,510 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NCP4688DSN12T1GIC REG LINEAR 1.2V 150MA SOT23-5 |
4,540 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 1.2V | - | 0.8V @ 150mA | 150mA | 100 µA | - | 80dB ~ 65dB (1kHz ~ 100kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NCP4688DSN15T1GIC REG LINEAR 1.5V 150MA SOT23-5 |
2,171 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 1.5V | - | 0.5V @ 150mA | 150mA | 100 µA | - | 80dB ~ 65dB (1kHz ~ 100kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
