Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM317AT/E7001847PROTOTYPE |
1,037 | - |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 1.25V | 37V | - | 1.5A | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|

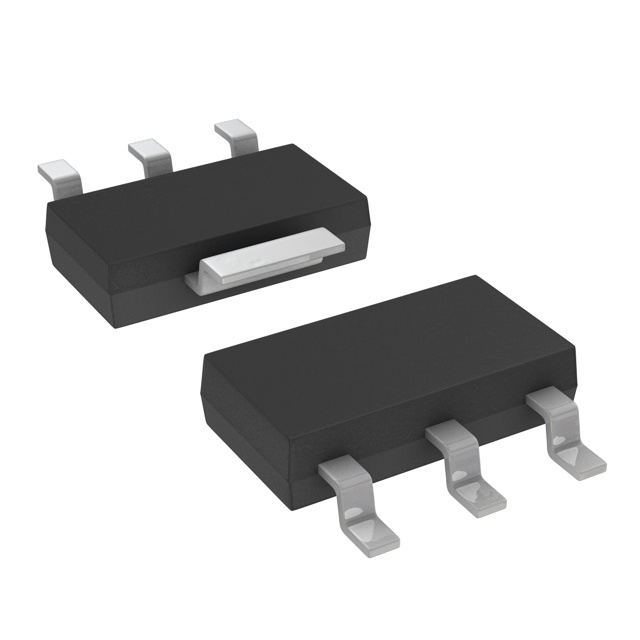

LM317MQDCYRBOPROTOTYPE |
3,586 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 500mA | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-4 |
|
|
LM2937-80DCYRPROTOTYPE |
1,816 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Bulk | Active | Positive | Fixed | 1 | 26V | 8V | - | 1V @ 500mA | 500mA | 10 mA | 20 mA | - | Current Limit | Mirror-Image Insertion, Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-4 |
|
|
LM117K/883/MABIPROTOTYPE |
1,325 | - |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Positive | Adjustable | 1 | 41.25V | 1.2V | 37V | - | 1.5A | 100 µA | - | - | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-3-2 |
|
|
LM137HVK MD81.5A -50V INPUT CAPABLE ADJUSTAB |
4,176 | - |
|
Datasheet | - | Die | Tube | Active | Negative | Adjustable | 1 | 50V | -1.2V | -37V | - | 1.5A | 5 mA | - | 77dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C (TA) | - | - | Surface Mount | Die |
|
|
LM2941SX/S4000103PROTOTYPE |
3,906 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Bulk | Obsolete | Positive | Adjustable | 1 | 26V | 5V | 20V | 1V @ 1A | 1A | 20 mA | 60 mA | - | Current Limit, Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP5907UVE-2.7/NOPBPROTOTYPE |
2,004 | - |
|
Datasheet | - | 4-XFBGA, DSBGA | Bulk | Active | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.2V @ 250mA | 250mA | 25 µA | 425 µA | 90dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 4-DSBGA |
|
LM2936MX-5.0/ELDB1758PROTOTYPE |
1,300 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.4V @ 50mA | 50mA | 2.5 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
LM2936MX-5.0/NAK1PROTOTYPE |
3,487 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.4V @ 50mA | 50mA | 15 µA | 2.5 mA | 60dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
LM1086CSX-3.3/J7001710PROTOTYPE |
4,539 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Active | Positive | Fixed | 1 | 29V | 3.3V | - | 1.5V @ 1.5A | 1.5A | 10 mA | - | - | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
|
LM2941SX/E7002441PROTOTYPE |
3,234 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Bulk | Active | Positive | Adjustable | 1 | 26V | 5V | 20V | 0.2V @ 100mA | 1A | 20 mA | - | - | Enable | Mirror-Image Insertion, Over Current, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
LM2941GW/8831A LOW DROPOUT ADJUSTABLE REGULA |
1,553 | - |
|
Datasheet | - | 16-CSOIC (0.241", 6.12mm Width) | Tray | Active | Positive | Adjustable | 1 | 26V | 5V | 20V | 1V @ 1A | 1A | - | 60 mA | - | Enable | Over Temperature, Reverse Polarity, Short Circuit | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-CFP |
|
|
LM317T/E7001848PROTOTYPE |
1,065 | - |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | Positive | Adjustable | 1 | 40V | 1.25V | 37V | - | 1.5A | 10 mA | - | 65dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
LM9071SX/S5000467PROTOTYPE |
3,666 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Bulk | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.8V @ 250mA | 250mA | 4 mA | 50 mA | - | Enable, Reset | Load Dump, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | TO-263 (DDPAK-5) |
|

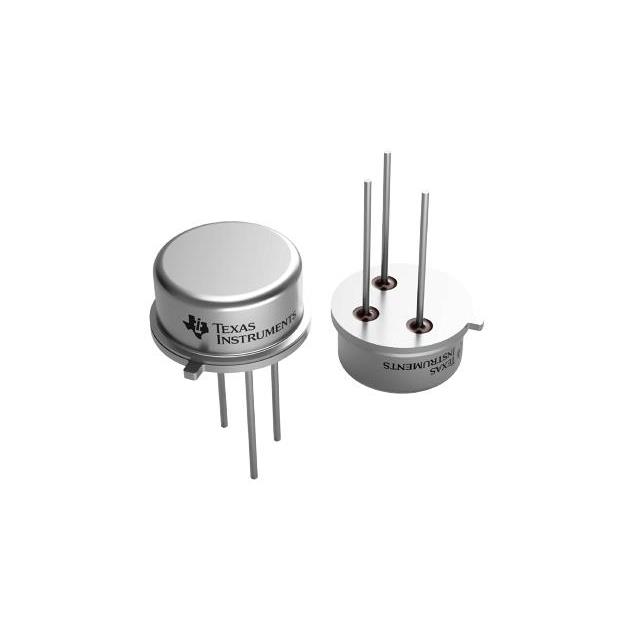

LM137HVH/8831.5A -50V INPUT CAPABLE ADJUSTAB |
2,134 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Negative | Adjustable | 1 | 50V | -1.2V | -37V | - | 1.5A | 5 mA | - | 77dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3 |
|
LP2951CMX/SL109753PROTOTYPE |
2,674 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Programmable | 1 | 30V | 1.24V | 29V | 0.6V @ 100mA | 100mA | 140 µA | 14 mA | - | Enable, Error Flag | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

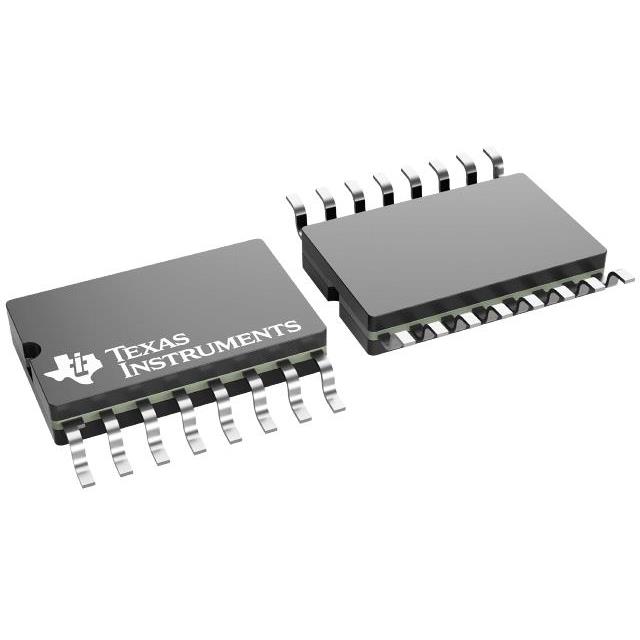

LP2953 MDSSPACE-GRADE QMLV, -20-V TO 30-V, |
1,969 | - |
|
Datasheet | - | Die | Tube | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.23V (5V) | 29V | 0.8V @ 250mA | 250mA | 28 mA | - | - | Current Limit, Enable, Error Flag | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TA) | - | - | Surface Mount | Die |
|
|
LM1086IT-ADJ/S5002151PROTOTYPE |
4,822 | - |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | Positive | Adjustable | 1 | 29V | 1.25V | 27.5V | 1.5V @ 1.5A | 1.5A | 10 mA | - | - | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|
LP3985IM5X-3.3/E5002286PROTOTYPE |
1,203 | - |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.1V @ 150mA | 550mA | 150 µA | 200 µA | 50dB ~ 40dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|

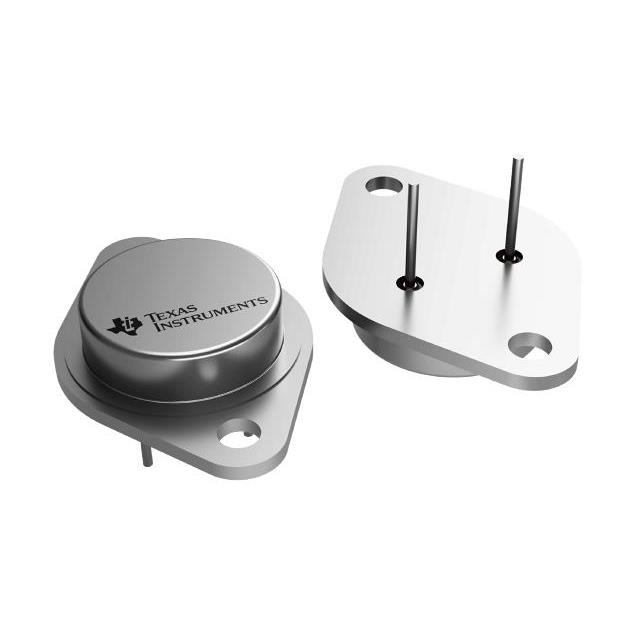

JM38510/11804SYASPACE GRADE -4.2-V TO -40-V, 1.5 |
2,550 | - |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Negative | Adjustable | 1 | -40V | -1.2V | -37V | - | 1.5A | 5 mA | - | 48dB (2.4kkHz) | Current Limit | Over Current, Over Temperature | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3-2 |
