Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM2936DT-3.3/NOPBIC REG LINEAR 3.3V 50MA TO252-3 |
416 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.4V @ 50mA | 50mA | 15 µA | 2.5 mA | 60dB (120Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
NCV8535MNADJR2GIC REG LIN POS ADJ 500MA 10DFN |
10,692 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 12V | 1.25V | 10V | 0.34V @ 500mA | 500mA | 190 µA | 14 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 10-DFN (3x3) |
|
|
NCV8535MN180R2GIC REG LINEAR 1.8V 500MA 10DFN |
5,997 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 1.8V | - | 1.13V @ 500mA | 500mA | 190 µA | 14 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 10-DFN (3x3) |
|
NCV8605MNADJT2GIC REG LINEAR POS ADJ 500MA 6DFN |
900 | - |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 1.25V | 5V | 0.47V @ 500mA | 500mA | 180 µA | - | 62dB ~ 40dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (3x3.3) |
|
MP2013GG-PIC REG LINEAR POS ADJ 150MA 6QFN |
688 | - |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.215V | 15V | 0.9V @ 150mA | 150mA | 7.2 µA | 50 µA | 58dB ~ 41dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-QFN (2x2) |
-Exposed-Pad.jpg "TQL850CSV50 RLG")
|
TQL850CSV50 RLG500MA, LOW-IQ 40A LOW-DROPOUT LI |
3,470 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 50V | 5V | - | 0.425V @ 250mA | 500mA | 77 µA | - | 59dB (100Hz) | Current Limit, Enable, Reset, Watchdog | Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOP-EP |
|
BA178M06CP-E2IC REG LINEAR 6V 500MA TO220-3 |
481 | - |
|
Datasheet | - | TO-220-3 Cropped Leads | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 21V | 6V | - | 2V @ 500mA (Typ) | 500mA | 4.5 mA | 6 mA | 74dB (120Hz) | - | - | -40°C ~ 85°C | - | - | Through Hole | TO-220-3 |
|
S-19212D33A-M5T1UIC REG LINEAR 3.3V 250MA SOT23-5 |
2,479 | - |
|
Datasheet | S-19212B/DxxA | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.8V @ 250mA | 250mA | 8.5 µA | - | 45dB (100Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
LP2986AIMM-5.0/NOPBIC REG LINEAR 5V 200MA 8VSSOP |
1,524 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.35V @ 200mA | 200mA | 120 µA | 3.7 mA | 65dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|

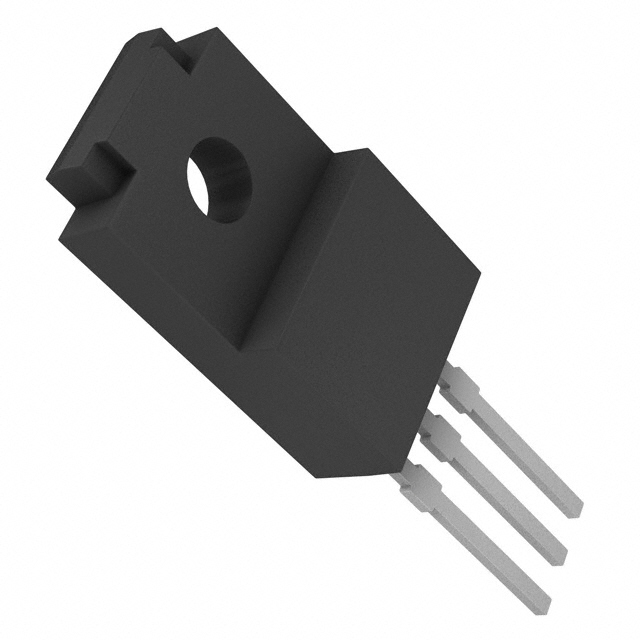

BA17810TIC REG LINEAR 10V 1A TO220FP |
286 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Not For New Designs | Positive | Fixed | 1 | 25V | 10V | - | 2V @ 1A (Typ) | 1A | 4.5 mA | 6 mA | 64dB (120Hz) | - | - | -40°C ~ 85°C | - | - | Through Hole | TO-220FP |
|
TPS79650DRBRIC REG LINEAR 5V 1A 8SON |
2,579 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 5V | - | 0.3V @ 1A | 1A | 385 µA | - | 59dB ~ 42dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SON (3x3) |
|
NCV47721PAAJR2GIC REG LIN POS ADJ 200MA 14TSSOP |
2,498 | - |
|
Datasheet | - | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 3.3V | 20V | 0.5V @ 200mA | 200mA | 1 mA | 15 mA | 80dB (100Hz) | Enable, Error Flag | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 14-TSSOP-EP |
|
ADP124ACPZ-2.8-R7IC REG LINEAR 2.8V 500MA 8LFCSP |
2,437 | - |
|
Datasheet | - | 8-UFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.23V @ 500mA | 500mA | 105 µA | 280 µA | 60dB (10kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-LFCSP-UD (2x2) |
|
BD50C0AWHFP-CTRIC REG LINEAR 5V 1A HRP-5 |
884 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26.5V | 5V | - | 0.5V @ 500mA | 1A | 2.5 mA | 2.5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | HRP-5 |
|
MP20051DQ-LF-PIC REG LINEAR POS ADJ 1A 8QFN |
453 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 5V | 0.28V @ 1A | 1A | 600 µA | - | 65dB ~ 33dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-QFN (3x3) |
|
|
BD00C0AWHFP-CTRIC REG LINEAR POS ADJ 1A HRP-5 |
329 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 26.5V | 1V | 15V | 0.5V @ 500mA | 1A | 2.5 mA | 2.5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | HRP-5 |
|
TPS7B8750QKVURQ1AUTOMOTIVE 500-MA, 40-V, LOW DRO |
6,954 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.575V @ 500mA | 500mA | 26 µA | - | 70dB (1kHz) | Power Good | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252-5 |
|
TPS7B8233EPWPRQ1AUTOMOTIVE 300-MA, OFF-BATTERY ( |
6,829 | - |
|
Datasheet | - | 14-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 1.35V @ 300mA | 300mA | 5 µA | 6.5 µA | 60dB (100Hz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | 14-HTSSOP |
__2.jpg "LD29080DT50R")
|
LD29080DT50RIC REG LINEAR 5V 800MA DPAK |
4,438 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 13V | 5V | - | 0.7V @ 800mA | 800mA | 180 µA | 35 mA | 64dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
TPS7B8250EPWPRQ1AUTOMOTIVE 300-MA, OFF-BATTERY ( |
2,059 | - |
|
Datasheet | - | 14-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 1.17V @ 300mA | 300mA | 5 µA | 6.5 µA | 60dB (100Hz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | 14-HTSSOP |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ
What Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components can I source from EGOO?
You can browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Voltage Regulators - Linear, Low Drop Out (LDO) Regulators parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
