Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV78L05ABPRAGIC REG LINEAR 5V 100MA TO92-3 |
3,997 | - |
|
Datasheet | - | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 5V | - | - | 100mA | 6 mA | - | 49dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Through Hole | TO-92 (TO-226) |
|
XC6201P222MR-GIC REG LINEAR 2.2V 250MA SOT25 |
3,010 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 2.2V | - | 0.4V @ 200mA | 250mA | - | - | - | - | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25-5 |
|
TPL710F18-3TRLOW QUIESCENT CURRENT LINEAR REG |
2,995 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.17V @ 200mA | 200mA | 30 µA | - | 55dB ~ 53dB (100Hz ~ 1MHz) | Current Limit | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
TPL710F25-3TRLOW QUIESCENT CURRENT LINEAR REG |
2,974 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.17V @ 200mA | 200mA | 30 µA | - | 55dB ~ 53dB (100Hz ~ 1MHz) | Current Limit | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
TPS7B91018DBVR150MA 40V 1.5A IQ LOW-DROPOUT LI |
2,895 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 1.8V | - | 1.8V @ 150mA | 150mA | 3 µA | 150 µA | 55dB ~ 43dB (10kHz ~ 100kHz) | Current Limit | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|

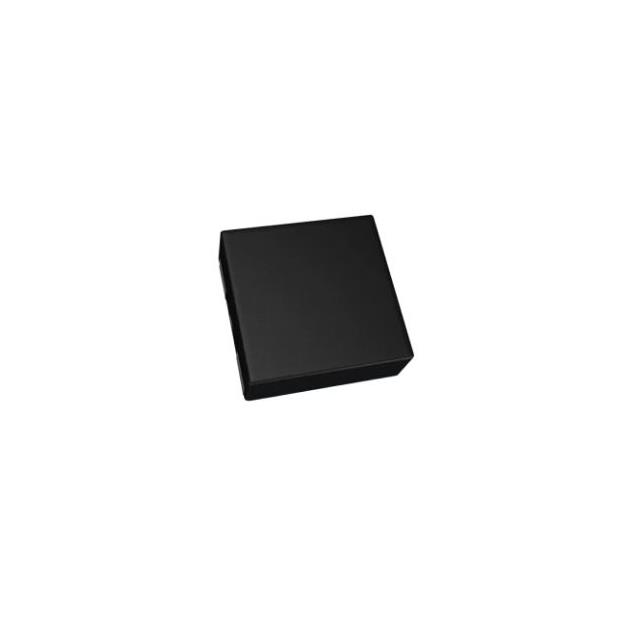

AP7353D-45FS4-7LDO CMOS LOWCURR X2-DFN1010-4 (T |
15,000 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 4.5V | - | 0.117V @ 250mA | 250mA | 27 µA | - | 90dB ~ 70dB (100Hz ~ 10kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | X2-DFN1010-4 (Type B) |
|
AP7353D-18FS4-7LDO CMOS LOWCURR X2-DFN1010-4 (T |
15,000 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.24V @ 250mA | 250mA | 27 µA | - | 90dB ~ 70dB (100Hz ~ 10kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | X2-DFN1010-4 (Type B) |
|
NCP163AFCT285T2GIC REG LINEAR 2.85V 250MA 4WLCSP |
10,000 | - |
|
Datasheet | - | 4-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.85V | - | - | 250mA | 20 µA | - | 91dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TA) | - | - | Surface Mount | 4-WLCSP (0.64x0.64) |
|
|
NCP163AFCT250T2GIC REG LINEAR 2.5V 250MA 4WLCSP |
10,000 | - |
|
Datasheet | - | 4-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.175V @ 250mA | 250mA | 20 µA | - | 91dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TA) | - | - | Surface Mount | 4-WLCSP (0.64x0.64) |
|
AP7353D-25FS4-7IC REG LIN 2.5V 250MA X2-DFN1010 |
10,000 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.168V @ 250mA | 250mA | 27 µA | - | 90dB ~ 70dB (100Hz ~ 10kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | X2-DFN1010-4 (Type B) |
|
|
AP7353D-28FS4-7LDO CMOS LOWCURR X2-DFN1010-4 (T |
9,980 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.155V @ 250mA | 250mA | 27 µA | - | 90dB ~ 70dB (100Hz ~ 10kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | X2-DFN1010-4 (Type B) |
|
|
NCP163AFCT180T2GIC REG LINEAR 1.8V 250MA 4WLCSP |
9,731 | - |
|
Datasheet | - | 4-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.25V @ 250mA | 250mA | 20 µA | - | 91dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TA) | - | - | Surface Mount | 4-WLCSP (0.64x0.64) |
|
LP5910-0.9YKARIC REG LINEAR 0.9V 300MA 4DSBGA |
5,975 | - |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.3V | 0.9V | - | - | 300mA | 25 µA | 350 µA | 80dB ~ 25dB (100Hz ~ 2MHz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DSBGA |
|
|
LP5910-1.825YKARIC REG LINEAR 1.8V 300MA 4DSBGA |
5,918 | - |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.3V | 1.8V | - | 0.37V @ 300mA | 300mA | 25 µA | 350 µA | 80dB ~ 25dB (100Hz ~ 2MHz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-DSBGA |
|
AP7341-33FS4-7IC REG LINEAR 3.3V 300MA 4DFN |
5,000 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 3.3V | - | 0.65V @ 300mA | 300mA | 50 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | X2-DFN1010-4 |
|
|
AP7353D-285FS4-7LDO CMOS LOWCURR X2-DFN1010-4 (T |
5,000 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.155V @ 250mA | 250mA | 27 µA | - | 90dB ~ 70dB (100Hz ~ 10kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | X2-DFN1010-4 (Type B) |
|
|
AP7353D-33FS4-7LDO CMOS LOWCURR X2-DFN1010-4 (T |
4,940 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.142V @ 250mA | 250mA | 27 µA | - | 90dB ~ 70dB (100Hz ~ 10kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | X2-DFN1010-4 (Type B) |
|
NCP110AFCT085T2GIC REG LINEAR 0.85V 200MA 4WLCSP |
3,900 | - |
|
Datasheet | - | 4-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 0.85V | - | - | 200mA | 25 µA | - | 90dB ~ 55dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.64x0.64) |
|

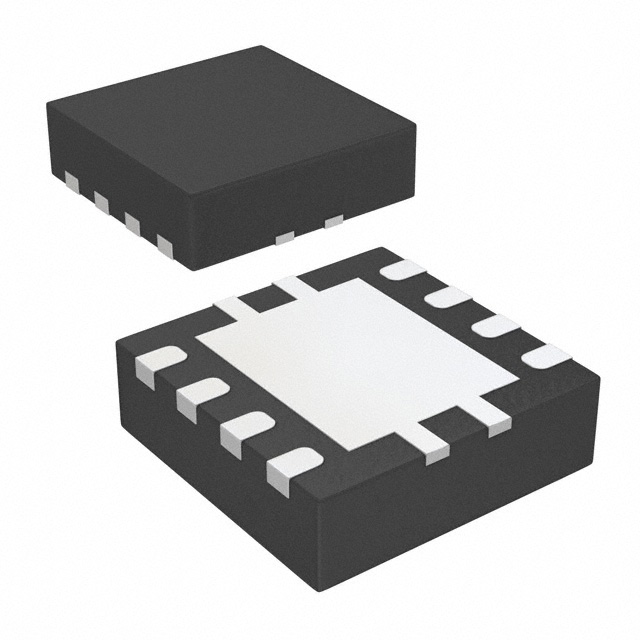

TPS73730DRBRM31A ultra-low-dropout voltage re |
3,000 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.25V @ 1A | 1A | - | 880 µA | 58dB ~ 37dB (100Hz ~ 1kHz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SON (3x3) |
|
|
TPS73718DRBRM31A ultra-low-dropout voltage reg |
3,000 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.25V @ 1A | 1A | - | 880 µA | 58dB ~ 37dB (100Hz ~ 1kHz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SON (3x3) |
