Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP7366EA-39SN-7IC REG LINEAR 3.9V 600MA 6DFN |
3,000 | - |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.9V | - | 0.19V @ 600mA | 600mA | 80 µA | - | 75dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2020-6 |
|
|
AP7366EA-10SN-7IC REG LINEAR 1V 600MA 6DFN |
3,000 | - |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1V | - | 0.85V @ 600mA | 600mA | 80 µA | - | 75dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2020-6 |
|
TPL740F25-5TRLINEAR VOLTAGE REGULATOR IC FIXE |
3,000 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.4V @ 500mA | 500mA | 200 µA | - | 60dB ~ 40dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TPL740F28-5TRLINEAR VOLTAGE REGULATOR IC FIXE |
3,000 | - |
|
Datasheet | TPL740 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.4V @ 500mA | 500mA | 200 µA | - | 60dB ~ 40dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
AP7366EA-25SN-7IC REG LINEAR 2.5V 600MA 6DFN |
2,990 | - |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.25V @ 600mA | 600mA | 80 µA | - | 75dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2020-6 |
|
|
AP7366EA-28SN-7IC REG LINEAR 2.8V 600MA 6DFN |
2,990 | - |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.23V @ 600mA | 600mA | 80 µA | - | 75dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2020-6 |
|
|
AP7366EA-12SN-7IC REG LINEAR 1.2V 600MA 6DFN |
2,988 | - |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.8V @ 600mA | 600mA | 80 µA | - | 75dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2020-6 |
|
|
AP7366EA-20SN-7IC REG LINEAR 2V 600MA 6DFN |
2,985 | - |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2V | - | 0.285V @ 600mA | 600mA | 80 µA | - | 75dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2020-6 |
|
|
AP7366EA-18SN-7IC REG LINEAR 1.8V 600MA 6DFN |
2,982 | - |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.32V @ 600mA | 600mA | 80 µA | - | 75dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2020-6 |
|
|
AP7366EA-15SN-7IC REG LINEAR 1.5V 600MA 6DFN |
2,980 | - |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.5V | - | 0.45V @ 600mA | 600mA | 80 µA | - | 75dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2020-6 |
|
|
AP7366EA-36SN-7LDO CMOS HICURR U-DFN2020-6 T&R |
2,973 | - |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.6V | - | 210mV @ 600mA | 600mA | 80 µA | - | 75dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2020-6 |
|
AP7366EA-30W5-7LDO CMOS HICURR SOT25 T&R 3K |
2,937 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.33V @ 600mA | 600mA | 80 µA | - | 75dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
TPS780180300DRVRIC REG LIN 1.8V/3V 150MA 6WSON |
2,916 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V, 3V | - | -, 0.25V @ 250mA | 150mA | 800 nA | 5 µA | 40dB ~ 15dB (10Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPL740F12-5TRLINEAR VOLTAGE REGULATOR IC FIXE |
2,865 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.4V @ 500mA | 500mA | 200 µA | - | 60dB ~ 40dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
AP7366EA-36W5-7LDO CMOS HICURR SOT25 T&R 3K |
2,828 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.6V | - | 0.32V @ 600mA | 600mA | 80 µA | - | 75dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
NCP176BMX120TCGIC REG LINEAR 1.2V 500MA 6XDFN |
2,722 | - |
|
Datasheet | - | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 500mA | 90 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-XDFN (1.2x1.2) |
|
TCR5BM10A,L3FIC REG LINEAR 1V 500MA 5DFNB |
2,697 | - |
|
Datasheet | TCR5BM | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | 0.14V @ 500mA | 500mA | 36 µA | - | 98dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-DFNB (1.2x1.2) |
|
AZ1117D-2.5TRE1IC REG LINEAR 2.5V 1A TO252-2 |
2,500 | - |
|
Datasheet | AZ1117 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 2.5V | - | 1.25V @ 1A | 1A | 10 mA | - | 75dB (120Hz) | - | Thermal Shutdown | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
|
AZ1117D-1.5TRE1IC REG LINEAR 1.5V 1A TO252-2 |
2,500 | - |
|
Datasheet | AZ1117 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 1.5V | - | 1.25V @ 1A | 1A | 10 mA | - | 75dB (120Hz) | - | Thermal Shutdown | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|

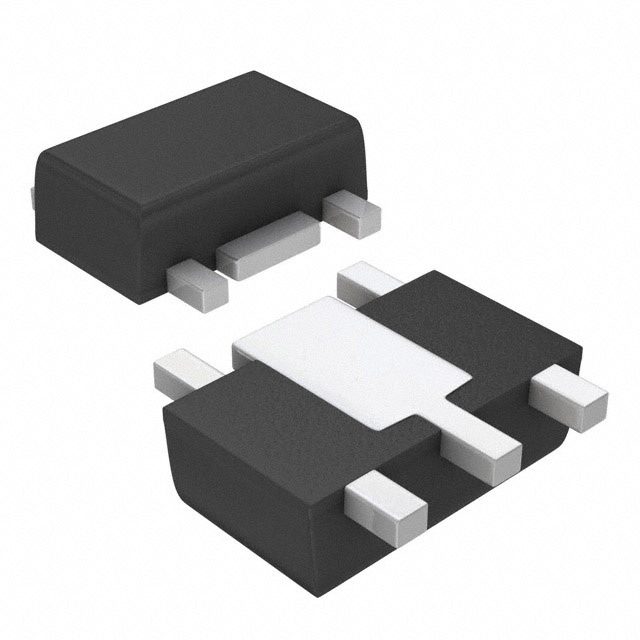

AP7361EA-18Y5-13LDO CMOS HICURR SOT89-5 T&R 2.5K |
2,500 | - |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.57V @ 1A | 1A | 91 µA | - | - | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
