Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS7A2128PQWDRBRQ1AUTOMOTIVE, 500MA, LOW-NOISE ULT |
4,977 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.265V @ 500mA | 500mA | 15 µA | - | 91dB (1kHz), 90dB ~ 50dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-SON (3x3) |
|
|
TPS7A2112PQWDRBRQ1AUTOMOTIVE, 500MA, LOW-NOISE ULT |
4,953 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.47V @ 500mA | 500mA | 18 µA | 3.5 mA | 91dB (1kHz), 90dB ~ 50dB (100Hz ~ 1MHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-SON (3x3) |
|
|
TPS7A2150PQWDRBRQ1AUTOMOTIVE, 500MA, LOW-NOISE ULT |
4,653 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 5V | - | 0.355V @ 500mA | 500mA | 18 µA | 3.5 mA | 91dB (1kHz), 90dB ~ 50dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-SON (3x3) |
|
|
TPS7A2118PQWDRBRQ1AUTOMOTIVE, 500MA, LOW-NOISE ULT |
4,140 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.355V @ 500mA | 500mA | 15 µA | - | 91dB (1kHz), 90dB ~ 50dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-SON (3x3) |
|
AP7365-12EG-13IC REG LIN 1.2V 600MA SOT223-3 |
3,994 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.6V @ 600mA | 600mA | 80 µA | - | 65dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-3 |
|
AP7365-33SNG-7IC REG LIN 3.3V 600MA 6DFN2020 |
3,963 | - |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.4V @ 600mA | 600mA | 80 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | U-DFN2020-6 |
|
|
AP7365-30SNG-7IC REG LINEAR 3V 600MA 6DFN2020 |
3,000 | - |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.4V @ 600mA | 600mA | 80 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | U-DFN2020-6 |
|
TPS7A2131PQWDSGRQ1AUTOMOTIVE, 500MA, LOW-NOISE ULT |
2,990 | - |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.1V | - | 0.265V @ 500mA | 500mA | 18 µA | - | 90dB ~ 50dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-WSON (2x2) |
|

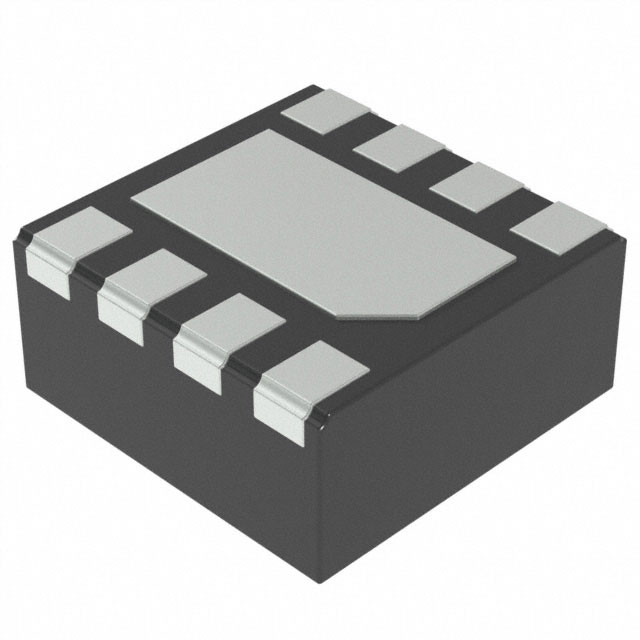

TPS7A2118PQWDSGRQ1Automotive, 500mA, low-noise ult |
2,977 | - |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.355V @ 500mA | 500mA | 18 µA | 3.5 mA | 91dB (1kHz), 90dB ~ 50dB (100Hz ~ 1MHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-WSON (2x2) |
|
|
TPS7A2128PQWDSGRQ1Automotive, 500mA, low-noise ult |
2,975 | - |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.265V @ 500mA | 500mA | 18 µA | 3.5 mA | 91dB (1kHz), 90dB ~ 50dB (100Hz ~ 1MHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-WSON (2x2) |
|
|
TPS7A2133PQWDSGRQ1Automotive, 500mA, low-noise ul |
2,971 | - |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.265V @ 500mA | 500mA | 18 µA | 3.5 mA | 91dB (1kHz), 90dB ~ 50dB (100Hz ~ 1MHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-WSON (2x2) |
|
|
TPS7A2112PQWDSGRQ1AUTOMOTIVE, 500MA, LOW-NOISE ULT |
2,955 | - |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.47V @ 500mA | 500mA | 18 µA | - | 90dB ~ 50dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-WSON (2x2) |
|
TPS7B92018DBVR300MA 40V 1.8A IQ LOW-DROPOUT LI |
2,891 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 1.8V | - | 3.7V @ 300mA | 300mA | 3 µA | 250 µA | 55dB ~ 43dB (10kHz ~ 100kHz) | Current Limit | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TPS7B92120DBVR300MA 40V 1.8A IQ LOW-DROPOUT LI |
2,838 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 12V | - | 3.7V @ 300mA | 300mA | 3 µA | 250 µA | 55dB ~ 43dB (10kHz ~ 100kHz) | Current Limit | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
AP7365-25EG-13IC REG LIN 2.5V 600MA SOT223-3 |
2,500 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.4V @ 600mA | 600mA | 80 µA | - | 65dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-3 |
|
|
AP7365-10EG-13IC REG LINEAR 1V 600MA SOT223-3 |
2,495 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1V | - | 0.6V @ 600mA | 600mA | 80 µA | - | 65dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-3 |
|
AP7365-33ERG-13IC REG LINEAR 3.3V 600MA SOT223R |
1,228 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.4V @ 600mA | 600mA | 80 µA | - | 65dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-223R |
|
AP7343D-25FS4-7BIC REG LINEAR 2.5V 300MA 4DFN |
10,000 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 2.5V | - | 0.3V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | X2-DFN1010-4 |
|
|
AP7343D-33FS4-7BIC REG LINEAR 3.3V 300MA 4DFN |
9,981 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 3.3V | - | 0.29V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | X2-DFN1010-4 |
|
TPL810F33-89TRLINEAR VOLTAGE REGULATOR IC FIXE |
3,997 | - |
|
Datasheet | TPL810 | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 3.3V | - | 0.8V @ 180mA | 180mA | 5 µA | - | 75dB ~ 65dB (100Hz ~ 10kHz) | Current Limit | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
