Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS70918QDBVRQ1IC REG LINEAR 1.8V 150MA SOT23-5 |
972 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 1.8V | - | - | 150mA | 2.05 µA | 350 µA | 80dB ~ 52dB (10Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Current, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
MAX16999AUA09+IC REG LINEAR 0.9V 100MA 8UMAX |
1,084 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 5.5V | 0.9V | - | - | 100mA | 20 µA | - | 70dB ~ 40dB (100Hz ~ 100kHz) | Enable, Power On Reset, Reset | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-uMax-EP |
|
XC6220B10BMR-GIC REG LINEAR 1.05V 700MA SOT25 |
3,000 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.05V | - | 0.405V @ 300mA | 700mA | 18 µA | 108 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC6220B11BMR-GIC REG LINEAR 1.15V 700MA SOT25 |
3,000 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.15V | - | 0.305V @ 300mA | 700mA | 18 µA | 108 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
NCV8705MW28TCGIC REG LINEAR 2.8V 500MA 8DFN |
3,000 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.35V @ 500mA | 500mA | 25 µA | - | 73dB ~ 56dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-DFN (3x3) |
|
|
XC6220D331MR-GIC REG LINEAR 3.3V 1A SOT25 |
2,965 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.655V @ 1A | 1A | 28.75 µA | 118.75 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
NCV8705MW18TCGIC REG LINEAR 1.8V 500MA 8DFN |
2,940 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 500mA | 25 µA | - | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-DFN (3x3) |
|
BD00HC5JEFJ-E21.5A VARIABLE OUTPUT, HIGH-ACCUR |
2,500 | - |
|
Datasheet | BDxxHC5JEFJ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 8V | 1.5V | 7V | 0.93V @ 1.5A | 1.5A | 900 µA | - | - | Enable, Soft Start | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
NCV662SQ50T1GIC REG LINEAR 5V 100MA SC82AB |
3,000 | - |
|
Datasheet | - | SC-82A, SOT-343 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 5V | - | 0.3V @ 100mA | 100mA | 1 µA | 6 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-82AB |
|
|
NCV662SQ30T1GIC REG LINEAR 3V 100MA SC82AB |
2,800 | - |
|
Datasheet | - | SC-82A, SOT-343 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.42V @ 100mA | 100mA | 1 µA | 6 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-82AB |
|
LP2950ACZ-3.0RAGIC REG LINEAR 3V 100MA TO92-3 |
2,000 | - |
|
Datasheet | - | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 3V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92 (TO-226) |
|

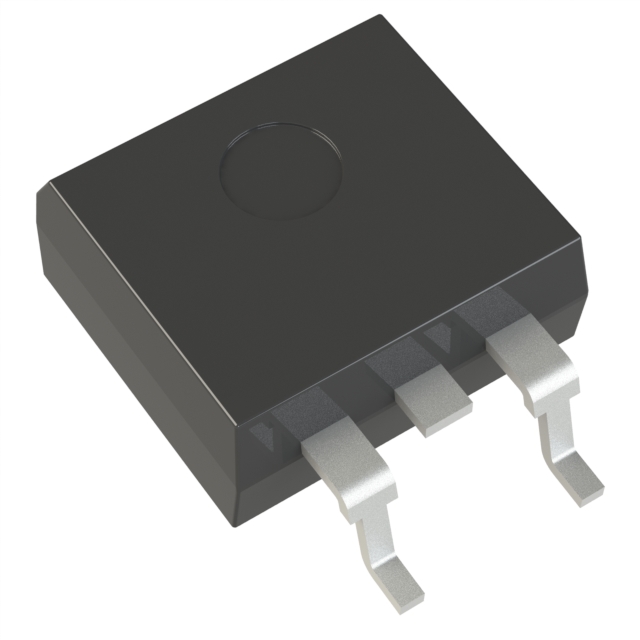

MC7915ACD2TR4GANA 1A 15V NEGATIVE VREG |
1,348 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -35V | -15V | - | 1.3V @ 1A | 1A | 8 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | D2PAK-3 |
|
AP7583AQ-FDZW-7LDO CMOS LOWCURR W-DFN2020-6 T&R |
5,018 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 42V | 1.2V | 5V | 0.7V @ 300mA | 300mA | 6 µA | - | 70dB (100Hz) | Current Limit, Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | W-DFN2020-6 (SWP) (Type A1) |
|
TPL905212-S5TR-SLINEAR VOLTAGE REGULATOR IC POSI |
3,000 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-23-5 |
|
|
TPL905215-S5TR-SLINEAR VOLTAGE REGULATOR IC POSI |
3,000 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-23-5 |
|
|
TPL905236-S5TR-SLINEAR VOLTAGE REGULATOR IC FIXE |
3,000 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-23-5 |
|
|
TPL905230-S5TR-SLINEAR VOLTAGE REGULATOR IC POSI |
3,000 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-23-5 |
|
NCP3334AMTADJTBGIC REG LIN POS ADJ 500MA 8WDFN |
2,992 | - |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 12V | 1.178V | 10V | 0.34V @ 500mA | 500mA | 180 µA | 10 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C | - | - | Surface Mount | 8-WDFN (3x3) |
|
|
XC6220B321MR-GIC REG LINEAR 3.2V 1A SOT25 |
2,990 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.2V | - | 0.655V @ 1A | 1A | 18 µA | 108 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
AP7583AQ-33FDZW-7LDO CMOS LOWCURR W-DFN2020-6 T&R |
2,977 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3.3V | - | 0.7V @ 300mA | 300mA | 6 µA | - | 70dB (100Hz) | Current Limit, Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | W-DFN2020-6 (SWP) (Type A1) |
