Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Browse available Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS71825-12DRVRIC REG LIN 2.5V/1.2V 200MA 6WSON |
18,000 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 6.5V | 2.5V, 1.2V | - | - | 200mA | 160 µA | 250 µA | 63dB ~ 44dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|

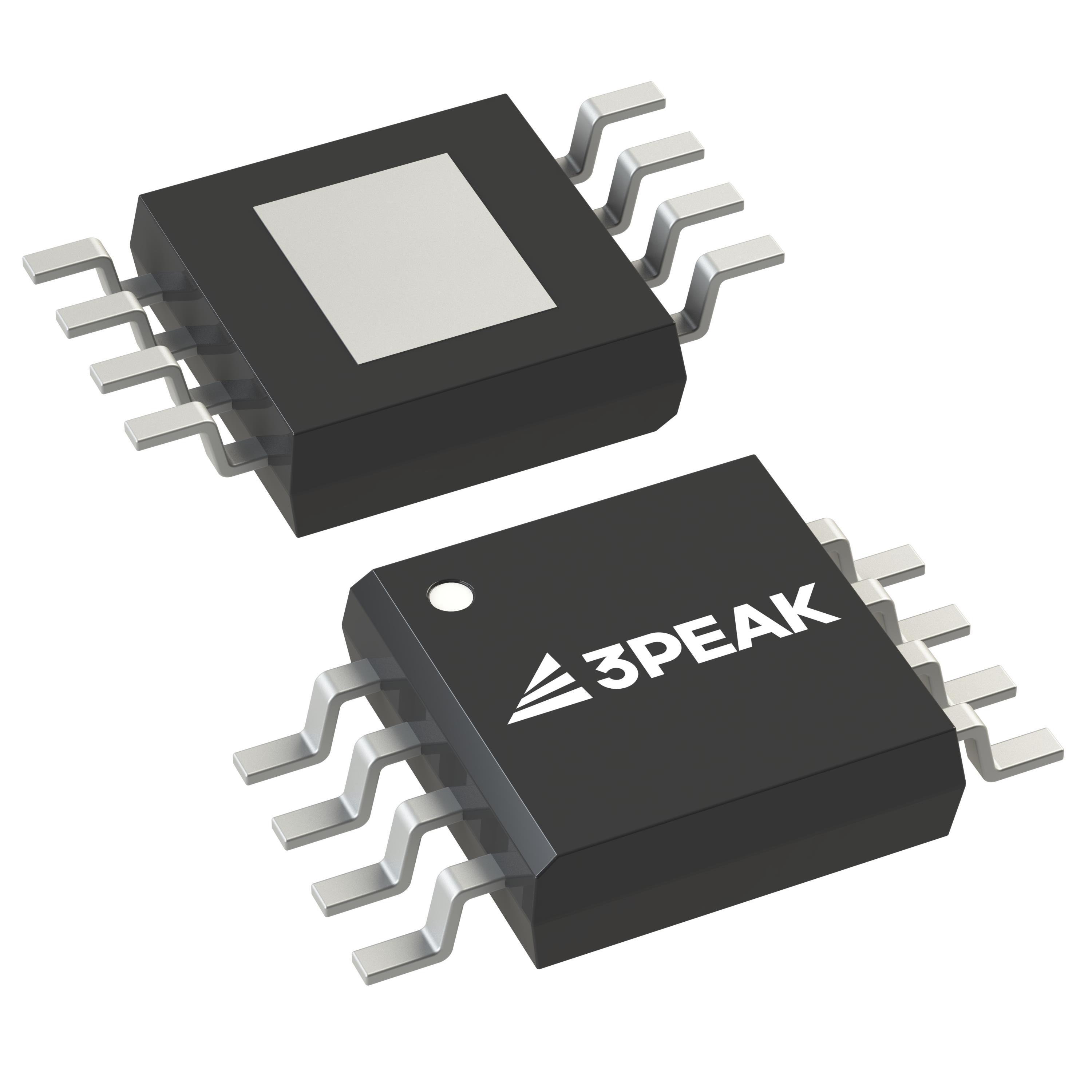

TPL803133Q-EV1R-SIC REG LINEAR 3.3V 300MA 8-EMSOP |
3,000 | - |
|
Datasheet | TPL8031Q | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3.3V | - | 0.9V @ 200mA | 300mA | 5.5 µA | - | 65dB ~ 40dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-EMSOP |
|
|
TPL803150Q-EV1R-SIC REG LINEAR 5V 300MA 8-EMSOP |
2,979 | - |
|
Datasheet | TPL8031Q | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | - | 0.72V @ 200mA | 300mA | 5.5 µA | - | 65dB ~ 40dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-EMSOP |
|
NCV8187AMLE120TCG1.2 A LOW IQ LOW DROPOUT VOLTAGE |
2,865 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.45V @ 1A | 1.2A | 45 µA | - | - | Enable, Power Good | Over Current, Over Temperature | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-DFNW (3x3) |
|

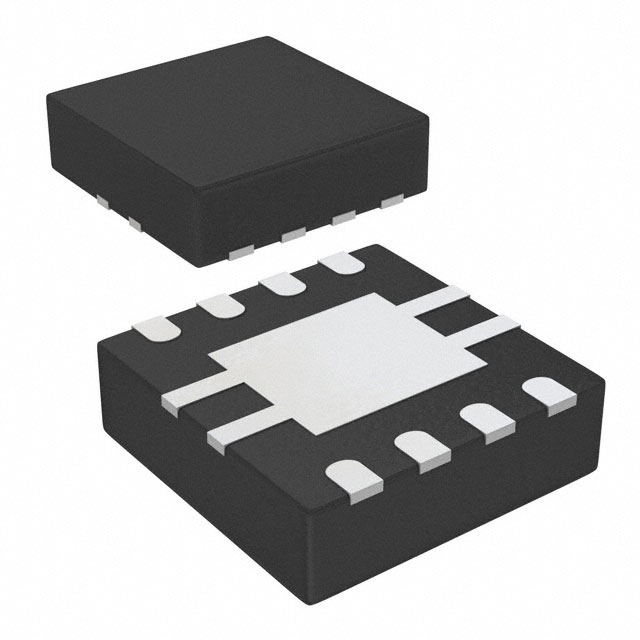

RT2517AGQVIC REG LINEAR POS ADJ 1A 8AL-DFN |
1,477 | - |
|
Datasheet | - | 8-VQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 1.2V | 5.7V | 0.3V @ 1A | 1A | 400 µA | - | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-AL-DFN (3x3) |
|
NCV8715MX18TBGIC REG LINEAR 1.8V 50MA 6XDFN |
5,000 | - |
|
Datasheet | - | 6-XFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 1.8V | - | - | 50mA | 5.8 µA | - | 60dB (100kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-XDFN (1.5x1.5) |
|
NCV8715SQ18T2GIC REG LINEAR 1.8V 50MA SC88A |
2,990 | - |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 1.8V | - | - | 50mA | 5.8 µA | - | 60dB (100kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NCV8715SQ12T2GIC REG LINEAR 1.2V 50MA SC88A |
2,969 | - |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 1.2V | - | - | 50mA | - | - | 60dB (100kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
BD15GA5VEFJ-ME2500MA 1.5V, FIXED OUTPUT, HIGH-A |
2,500 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 1.5V | - | 1.2V @ 500mA | 500mA | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD25GA5VEFJ-ME2500MA 2.5V, FIXED OUTPUT, HIGH-A |
2,500 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 2.5V | - | 1.2V @ 500mA | 500mA | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD30GA5VEFJ-ME2500MA 3V, FIXED OUTPUT, HIGH-ACC |
2,500 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 3V | - | 1.2V @ 500mA | 500mA | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD33GA5VEFJ-ME2500MA 3.3V, FIXED OUTPUT, HIGH-A |
2,500 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 3.3V | - | 1.2V @ 500mA | 500mA | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD70GA5VEFJ-ME2500MA 7V, FIXED OUTPUT, HIGH-ACC |
2,500 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 7V | - | 1.2V @ 500mA | 500mA | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BDJ2GA5VEFJ-ME2500MA 12V, FIXED OUTPUT, HIGH-AC |
2,500 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 12V | - | 1.2V @ 500mA | 500mA | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD00GA5VEFJ-ME2500MA VARIABLE OUTPUT, HIGH-ACCU |
2,498 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 14V | 1.5V | 13V | 1.2V @ 500mA | 500mA | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD18GA5VEFJ-ME2500MA 1.8V, FIXED OUTPUT, HIGH-A |
2,498 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 1.8V | - | 1.2V @ 500mA | 500mA | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD50GA5VEFJ-ME2500MA 5V, FIXED OUTPUT, HIGH-ACC |
2,490 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 5V | - | 1.2V @ 500mA | 500mA | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD60GA5VEFJ-ME2500MA 6V, FIXED OUTPUT, HIGH-ACC |
2,490 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 6V | - | 1.2V @ 500mA | 500mA | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD90GA5VEFJ-ME2500MA 9V, FIXED OUTPUT, HIGH-ACC |
2,490 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 9V | - | 1.2V @ 500mA | 500mA | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD80GA5VEFJ-ME2500MA 8V, FIXED OUTPUT, HIGH-ACC |
2,488 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 8V | - | 1.2V @ 500mA | 500mA | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
