Power Relays, Over 2 Amps
Browse available Power Relays, Over 2 Amps components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP2-DC5VRELAY GEN PURPOSE DPDT 15A 5V |
193 | - |
|
Datasheet | SP | Box | Active | Socketable | 5VDC | DPDT (2 Form C) | 15 A | 250VAC, 30VDC - Max | 3750VA, 450W | 60.2 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 3.5 VDC | 0.5 VDC | 30 ms | 20 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
KUP-14DE5-24RELAY GEN PURPOSE 3PDT 10A 24V |
126 | - |
|
Datasheet | KUP | Bulk | Active | Chassis Mount | 24VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUP-14A35F-120RELAY GEN PURPOSE 3PDT 10A 120V |
127 | - |
|
Datasheet | KUP | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 24 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO), Gold (Au) | General Purpose | - | - |
|
|
KUP-5A15-120RELAY GEN PURPOSE SPDT 10A 120V |
114 | - |
|
Datasheet | KUP | Bulk | Active | Socketable | 120VAC | SPDT (1 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KRPA-11AN-24RELAY GEN PURPOSE DPDT 10A 24V |
150 | - |
|
Datasheet | KRPA | Tray | Active | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 84 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | Class B | 20.4 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
SP4-PL2-DC24VRELAY GEN PURPOSE 4PDT 10A 24V |
148 | - |
|
Datasheet | SP | Box | Active | Through Hole | 24VDC | 4PDT (4 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 12.5 mA | Latching, Dual Coil | - | PC Pin | - | - | 16.8 VDC | - | 30 ms | 30 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
K10P-11A15-12RELAY GEN PURPOSE DPDT 15A 12V |
250 | - |
|
Datasheet | K10 | Tray | Active | Socketable | 12VAC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 100 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 10.2 VAC | 1.2 VAC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KUP-11D55-48RELAY GEN PURPOSE DPDT 10A 48V |
122 | - |
|
Datasheet | KUP | Bulk | Active | Chassis Mount | 48VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 26.7 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 36 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

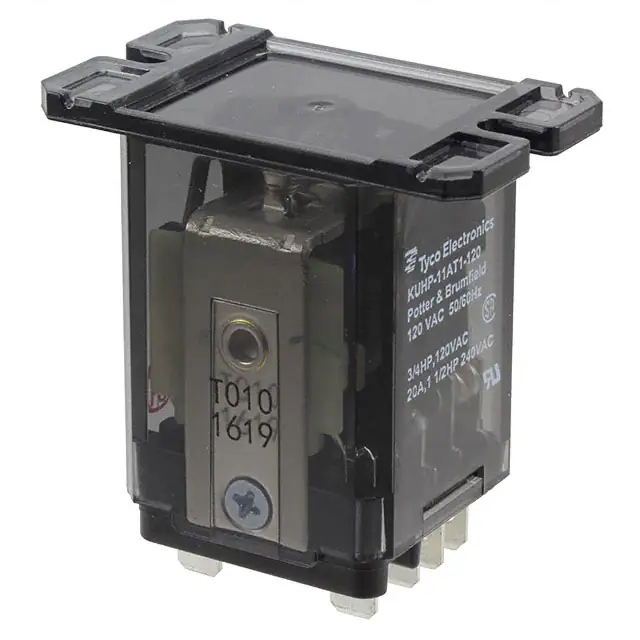

KUHP-11AT1-120RELAY GEN PURPOSE DPDT 20A 120V |
4,071 | - |
|
Datasheet | KUHP | Bulk | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 24 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 102 VAC | - | 20 ms | 20 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

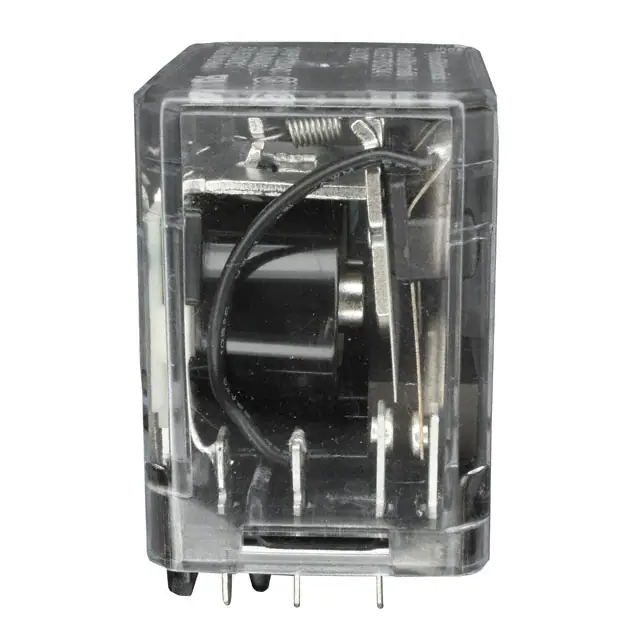

KUEP-7D15-24RELAY GEN PURPOSE DPST 10A 24V |
109 | - |
|
Datasheet | KUEP | Bulk | Active | Socketable | 24VDC | DPST-NO (2 Form A) | 10 A | 150VDC - Max | 1500VA | 75 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T92S11D12-110BRIDGE 1PH KBPC8-PB10 1000V 150C |
121 | - |
|
Datasheet | T92 | Bulk | Active | Through Hole | 110VDC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 15.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KRPA-14DG-48RELAY GEN PURPOSE 3PDT 10A 48V |
185 | - |
|
Datasheet | KRPA | Bulk | Active | Socketable | 48VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 26.7 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | Class B | 36 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

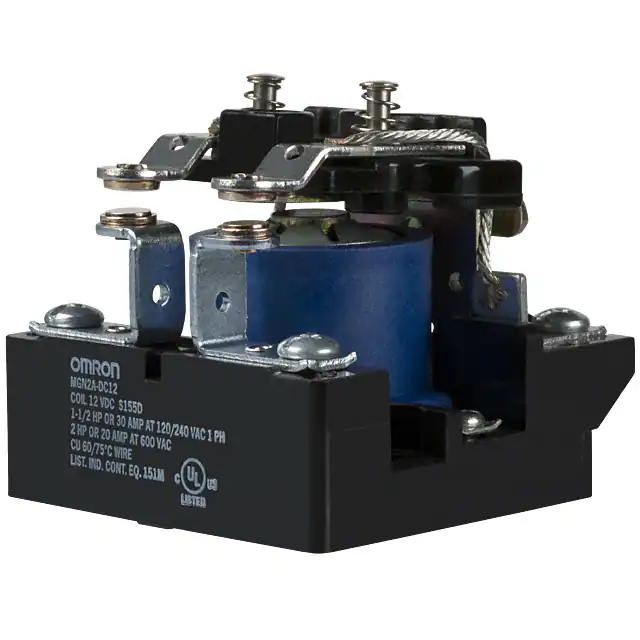

MGN2A-AC120RELAY GEN PURPOSE DPST 30A 120V |
135 | - |
|
Datasheet | MGN | Bulk | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 79 mA | Non Latching | - | Screw Terminal | - | Class F | 102 VAC | - | 30 ms | 30 ms | -45°C ~ 80°C | - | General Purpose | - | - |
|
R10-E1Y2-V185RELAY GEN PURPOSE DPDT 3A 12V |
228 | - |
|
Datasheet | R10 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 64.9 mA | Non Latching | - | Plug In | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
|
R10-E1Y2-V52RELAY GEN PURPOSE DPDT 3A 6V |
234 | - |
|
Datasheet | R10 | Bulk | Active | Socketable | 6VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 115 mA | Non Latching | - | Plug In | - | - | 4.5 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
|
KUP-11D15-48RELAY GEN PURPOSE DPDT 10A 48V |
130 | - |
|
Datasheet | KUP | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 26.7 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 36 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
R10-E1X4-V185RELAY GEN PURPOSE 4PDT 5A 12V |
735 | - |
|
Datasheet | R10 | Bulk | Active | Socketable | 12VDC | 4PDT (4 Form C) | 5 A | 120VAC - Nom | - | 64.9 mA | Non Latching | - | Plug In | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
R10-E2W2-V185RELAY GEN PURPOSE DPDT 7.5A 12V |
382 | - |
|
Datasheet | R10 | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 7.5 A | 120VAC - Nom | - | 64.9 mA | Non Latching | - | PC Pin | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
R10-E1X2-S800RELAY GEN PURPOSE DPDT 5A 12V |
281 | - |
|
Datasheet | R10 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 120VAC - Nom | - | 15 mA | Non Latching | - | Plug In | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUHP-5AT1-120RELAY GEN PURPOSE SPDT 30A 120V |
4,669 | - |
|
Datasheet | KUHP | Bulk | Active | Chassis Mount | 120VAC | SPDT (1 Form C) | 30 A | 240VAC - Max | 7200VA | 24 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 102 VAC | - | 20 ms | 20 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
