Power Relays, Over 2 Amps
Browse available Power Relays, Over 2 Amps components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AHN22224NRELAY GEN PURPOSE DPDT 5A 24V |
1,043 | - |
|
Datasheet | AHN | Tube | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 22 mA | Non Latching | Diode | Plug In | - | - | 16.8 VDC | 2.4 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
AHN22305NRELAY GEN PURPOSE DPDT 5A 5V |
1,835 | - |
|
Datasheet | AHN | Box | Obsolete | Socketable | 5VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 106.4 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 3.5 VDC | 0.5 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AHN22324NRELAY GEN PURPOSE DPDT 5A 24V |
1,046 | - |
|
Datasheet | AHN | Box | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 22 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 16.8 VDC | 2.4 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AHN223X1NRELAY GEN PURPOSE DPDT 5A 110V |
2,724 | - |
|
Datasheet | AHN | Box | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 4.8 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 77 VDC | 16.5 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
AHN36006RELAY GEN PURPOSE SPST 16A 6V |
1,483 | - |
|
Datasheet | AHN | Bulk | Obsolete | Chassis Mount | 6VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 30VDC - Max | 4000VA, 480W | 88.2 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 4.2 VDC | 0.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ALE1PB18RELAY GEN PURPOSE SPST 16A 18V |
2,242 | - |
|
Datasheet | ALE | Bulk | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 22.2 mA | Non Latching | - | PC Pin | - | Class B | 13.5 VDC | 0.9 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ALE7PF05RELAY GEN PURPOSE SPST 16A 5V |
1,765 | - |
|
Datasheet | ALE | Tray | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 40 mA | Non Latching | - | PC Pin | - | Class F | 3.75 VDC | 0.25 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ALE7PF06RELAY GEN PURPOSE SPST 16A 6V |
1,098 | - |
|
Datasheet | ALE | Tray | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 33.3 mA | Non Latching | - | PC Pin | - | Class F | 4.5 VDC | 0.3 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
HC1E-H-AC240V-FRELAY GEN PURPOSE SPDT 5A 240V |
3,195 | - |
|
Datasheet | HC | Bulk | Obsolete | Socketable | 240VAC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 5 mA | Non Latching | - | Plug In | Sealed - Fully | - | 192 VAC | 72 VAC | 10 ms | 10 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|
|
HC1E-H-DC12V-FRELAY GEN PURPOSE SPDT 5A 12V |
3,682 | - |
|
Datasheet | HC | Bulk | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 75 mA | Non Latching | - | Plug In | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|

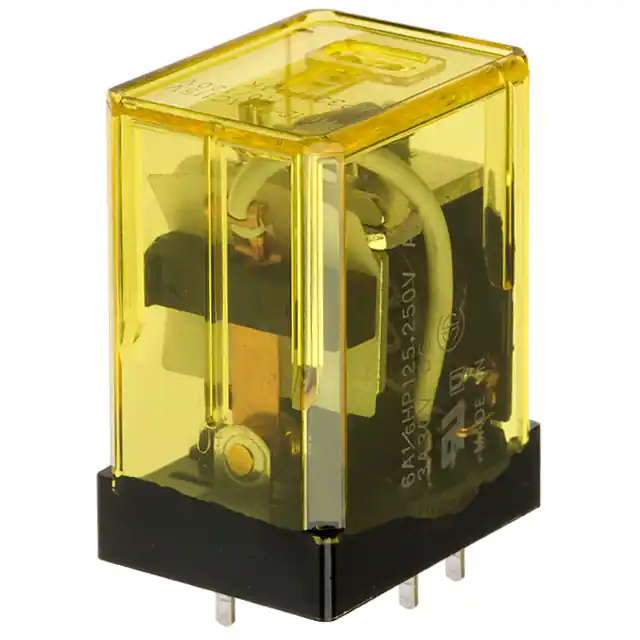

HC1E-HP-AC240V-FRELAY GEN PURPOSE SPDT 5A 240V |
3,826 | - |
|
Datasheet | HC | Bulk | Obsolete | Through Hole | 240VAC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 192 VAC | 72 VAC | 10 ms | 10 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|
|
HC1-HP-AC240V-FRELAY GEN PURPOSE SPDT 10A 240V |
3,085 | - |
|
Datasheet | HC | Bulk | Obsolete | Through Hole | 240VAC | SPDT (1 Form C) | 10 A | 250VAC - Max | 2500VA | 5 mA | Non Latching | - | PC Pin | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|
|
HC2E-H-DC6V-FRELAY GEN PURPOSE DPDT 3A 6V |
2,946 | - |
|
Datasheet | HC | Box | Obsolete | Socketable | 6VDC | DPDT (2 Form C) | 3 A | 250VAC - Max | 750VA | 150 mA | Non Latching | - | Plug In, 8 Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|
|
HC2E-HP-AC12V-FRELAY GEN PURPOSE DPDT 3A 12V |
4,476 | - |
|
Datasheet | HC | Box | Obsolete | Through Hole | 12VAC | DPDT (2 Form C) | 3 A | 250VAC - Max | 750VA | 100 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VAC | 3.6 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|
|
HC2E-L-DC24V-FRELAY GEN PURPOSE DPDT 3A 24V |
4,541 | - |
|
Datasheet | HC | Box | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 3 A | 250VAC - Max | 750VA | 37 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -50°C ~ 60°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|
|
HC2-HL-DC110V-FRELAY GEN PURPOSE DPDT 7A 110V |
4,278 | - |
|
Datasheet | HC | Bulk | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 7 A | 250VAC - Max | 1750VA | 10 mA | Non Latching | Lighted Indicator | Plug In | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -50°C ~ 60°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|
|
HC2-HP-DC110V-FRELAY GEN PURPOSE DPDT 7A 110V |
2,767 | - |
|
Datasheet | HC | Bulk | Obsolete | Through Hole | 110VDC | DPDT (2 Form C) | 7 A | 250VAC - Max | 1750VA | 10 mA | Non Latching | - | PC Pin | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|
|
HC2-HTM-AC240V-FRELAY GEN PURPOSE DPDT 7A 240V |
4,002 | - |
|
Datasheet | HC | Bulk | Obsolete | Chassis Mount | 240VAC | DPDT (2 Form C) | 7 A | 250VAC - Max | 1750VA | 5 mA | Non Latching | - | Plug In | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | General Purpose | - | - |
|
|
HC3-HP-AC115V-FRELAY GEN PURPOSE 3PDT 7A 115V |
2,709 | - |
|
Datasheet | HC | Bulk | Obsolete | Through Hole | 115VAC | 3PDT (3 Form C) | 7 A | 250VAC - Max | 1750VA | 11.4 mA | Non Latching | - | PC Pin | - | - | 92 VAC | 34.5 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
HC3-HP-DC110V-FRELAY GEN PURPOSE 3PDT 7A 110V |
4,538 | - |
|
Datasheet | HC | Bulk | Obsolete | Through Hole | 110VDC | 3PDT (3 Form C) | 7 A | 250VAC - Max | 1750VA | 10 mA | Non Latching | - | PC Pin | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
