Power Relays, Over 2 Amps
Browse available Power Relays, Over 2 Amps components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RA 012L-NRELAY GEN PURPOSE DPDT 12A 12V |
3,389 | - |
|
Datasheet | RA | Box | Active | Socketable | 12VDC | DPDT (2 Form C) | 12 A | 250VAC, 24VDC - Max | - | 75 mA | Non Latching | Lighted Indicator | Plug In | - | - | 9.6 VDC | 2.4 VDC | 13 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RA 024L-NRELAY GEN PURPOSE DPDT 12A 24V |
2,677 | - |
|
Datasheet | RA | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 12 A | 250VAC, 24VDC - Max | - | 37.5 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VDC | 4.8 VDC | 13 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

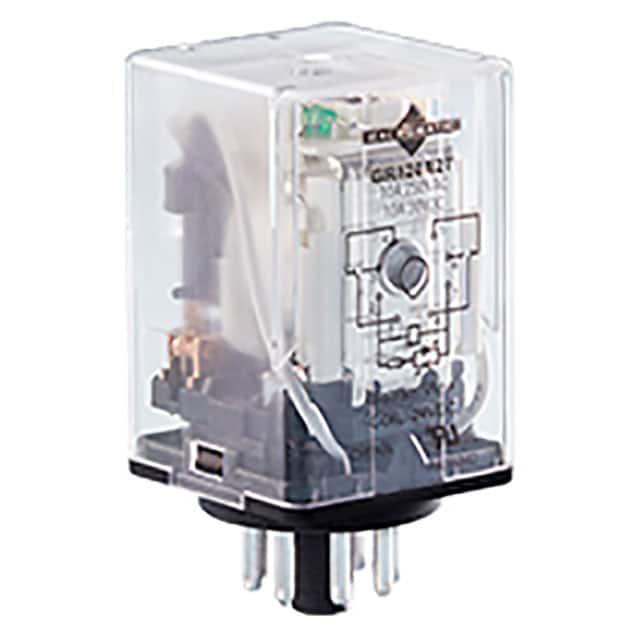

GR120A2TRELAY GEN PURPOSE DPDT 10A 120V |
2,221 | - |
|
Datasheet | GR | Box | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | - | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -40°C ~ 55°C | - | General Purpose | - | - |
|
HAT902CSDC12RELAY SPDT 30A 12V |
2,071 | - |
|
Datasheet | HAT | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 30 A | 277VAC - Max | - | 77.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Alloy | - | - | - |
|
HPKF1A35DC12S1.5RELAY SPST 35A 12V |
2,696 | - |
|
Datasheet | HPK | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 35 A | 277VAC - Max | - | 150 mA | Non Latching | - | PC Pin | - | Class F | 9.6 VDC | 0.6 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Alloy | - | - | - |
|
SPR1C12DC12KRELAY SPDT 12A 12V |
2,265 | - |
|
Datasheet | SPR | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 277VAC - Max | - | 33.3 mA | Non Latching | - | PC Pin | - | Class B | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | - | - | - |
|
HAT905CSDC12RELAY SPDT 50A 12V |
2,239 | - |
|
Datasheet | HAT | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC - Max | - | 100 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -20°C ~ 85°C | Silver Alloy | - | - | - |
|
HAT901CSDC24RELAY SPDT 30A 24V |
3,398 | - |
|
Datasheet | HAT | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 40 A | 277VAC - Max | - | 36.4 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Alloy | - | - | - |
|
PLT1B20DC24-2-5261RELAY SPST 20A 24V |
1,276 | - |
|
Datasheet | PLT | Tube | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 20 A | 277VAC - Max | - | 15 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | - | - | - |
|
KLT1C12DC12RELAY SPDT 12A 12V |
4,000 |
20+：$0.86000 |
|
Datasheet | KLT | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 277VAC - Max | - | 30 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 1.2 VDC | 8 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | - | - | - |
|
SPRF1C16DC12K-2LRELAY SPDT 16A 12V |
3,104 | - |
|
Datasheet | SPR | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 277VAC - Max | - | 50 mA | Latching, Dual Coil | - | PC Pin | - | Class F | 9 VDC | - | 8 ms | 8 ms | -40°C ~ 70°C | Silver Alloy | - | - | - |
|
HAT901ASDC24RELAY SPST 30A 24V |
4,960 | - |
|
Datasheet | HAT | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | - | 36.4 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Alloy | - | - | - |
|
PR2C10DC12KRELAY DPDT 10A 12V |
2,491 | - |
|
Datasheet | PR | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 10 A | 277VAC - Max | - | 44 mA | Non Latching | - | PC Pin | - | Class B | 9.6 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | - | - | - |
|
HATF903ASDC12RELAY SPST 30A 12V |
4,573 | - |
|
Datasheet | HAT | Tube | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | - | 77.4 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 105°C | Silver Alloy | - | - | - |
|
PC120-904RELAY GEN PURPOSE SPST 100A 24V |
2,393 | - |
|
Datasheet | PC120 | Tray | Obsolete | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 100 A | 24VDC - Nom | 2400VA | 375 mA | Non Latching | - | Stud | - | - | 18 VDC | - | - | - | -28°C ~ 48°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

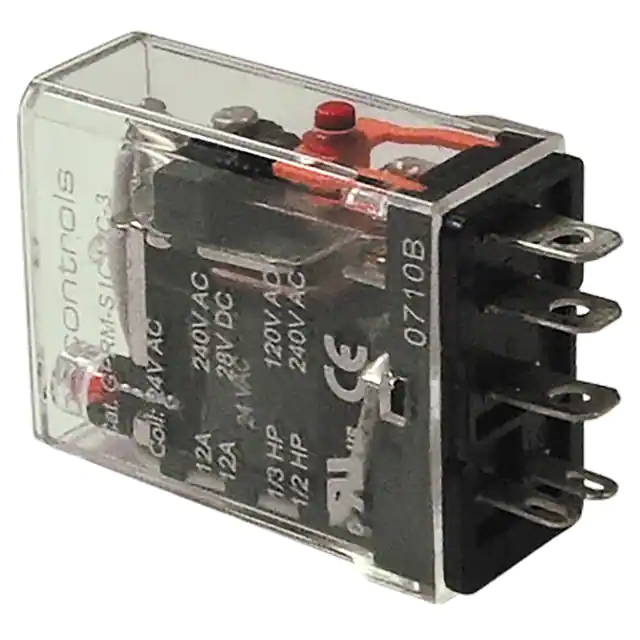

GPRM-S1C12ZCRELAY GEN PURPOSE SPDT 12A 24V |
1,245 | - |
|
Datasheet | GR | Bag | Active | Socketable | 24VDC | SPDT (1 Form C) | 12 A | 240VAC, 24VDC - Max | - | 32 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -30°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

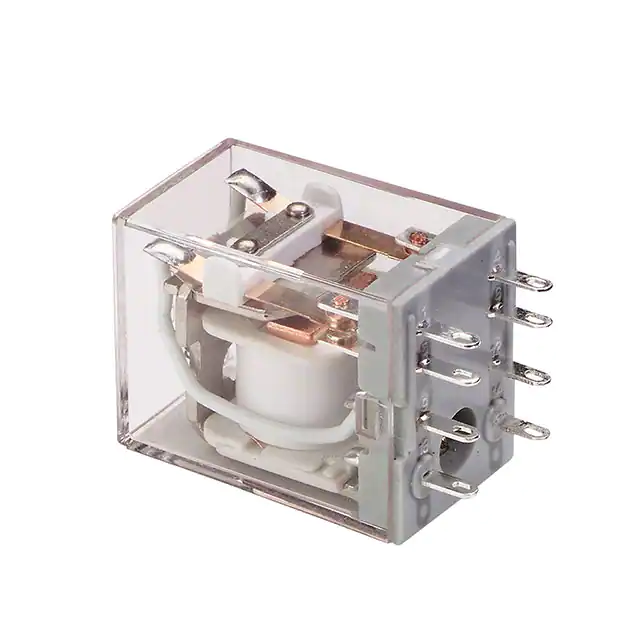

GPRM-B2C10DRELAY GEN PURPOSE DPDT 10A 120V |
0 | - |
|
Datasheet | GR | Bag | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC, 28VDC - Max | - | 11.5 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
GPRS-B3C20D-3RELAY GEN PURPOSE 3PDT 20A 120V |
1,511 | - |
|
Datasheet | GR | Bag | Active | Socketable | 120VAC | 3PDT (3 Form C) | 20 A | - | - | - | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, 11 Pin (Octal) | - | - | - | - | - | - | - | - | General Purpose | - | - |
|
|
GPRS-B2C25DRELAY GEN PURPOSE DPDT 25A 120V |
4,407 | - |
|
Datasheet | GR | Bag | Active | Socketable | 120VAC | DPDT (2 Form C) | 25 A | 240VAC, 28VDC - Max | - | 92.3 mA | Non Latching | - | Plug In | - | - | 102 VAC | 36 VAC | 15 ms | 10 ms | -45°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
GPRM-B2C10ZC-3RELAY GEN PURPOSE DPDT 10A 24V |
4,504 | - |
|
Datasheet | GR | Bag | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 240VAC, 28VDC - Max | - | 36.9 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
What Power Relays, Over 2 Amps components can I source from EGOO?
You can browse available Power Relays, Over 2 Amps product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Power Relays, Over 2 Amps parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
