Power Relays, Over 2 Amps
Browse available Power Relays, Over 2 Amps components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8365980000RELAY GEN PURPOSE SPDT 6A 24V |
2,461 | - |
|
Datasheet | MCZ | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 6.3 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 5 ms | 10 ms | -25°C ~ 50°C | - | General Purpose | - | - |
|
2759070000RELAY MODULE, 24 V DC, GREEN LED |
1,526 | - |
|
Datasheet | FSKIT | Box | Active | DIN Rail | 24VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 6 A | 250VAC - Max | 1500VA | 20 mA | Non Latching | Diode, Lighted Indicator | Screw Terminal | - | - | 18.7 VDC | 3.15 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
2900318RELAY GEN PURPOSE SPDT 6A 24V |
1,380 | - |
|
Datasheet | PLC-RPT | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 9 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 4 ms | 4 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
788-354RELAY GEN PURPOSE SPDT 16A 24V |
3,961 | - |
|
Datasheet | 788 | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 19 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 15 ms | 5 ms | -40° ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
K10P-11D15-48RELAY GEN PURPOSE DPDT 15A 48V |
2,502 | - |
|
Datasheet | K10 | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 18.5 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 36 VDC | 4.8 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
857-303RELAY GEN PURPOSE SPDT 6A 12V |
4,905 | - |
|
Datasheet | 857 | Bulk | Active | DIN Rail | 12VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 1500VA | 17 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | 2.4 VDC | 1.8 VDC | 8 ms | 8 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
859-302RELAY GEN PURPOSE SPDT 5A 5V |
3,836 | - |
|
Datasheet | 859 | Box | Active | DIN Rail | 5VDC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 31 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 15 ms | 25 ms | -40°C ~ 50°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
KUEP-11D15-48RELAY GEN PURPOSE DPDT 10A 48V |
1,116 | - |
|
Datasheet | KUEP | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 10 A | 150VDC - Max | 1500VA | 38 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 36 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
2759100000RELAY MODULE, 24 V DC, GREEN LED |
2,362 | - |
|
Datasheet | FSKIT | Box | Active | DIN Rail | 24VDC | 6PST-3NO/3NC (3 Form A, 3 Form B) | 6 A | 250VAC - Max | 1500VA | 25.5 mA | Non Latching | Diode, Lighted Indicator | Screw Terminal | - | - | 18.7 VDC | 3.15 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
|
2759090000RELAY MODULE, 24 V DC, GREEN LED |
3,837 | - |
|
Datasheet | FSKIT | Box | Active | DIN Rail | 24VDC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 6 A | 250VAC - Max | 1500VA | 25.5 mA | Non Latching | Diode, Lighted Indicator | Screw Terminal | - | - | 18.7 VDC | 3.15 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
HE1AN-W-DC12V-Y7RELAY GEN PURPOSE SPST 120A 12V |
4,379 | - |
|
Datasheet | HE-N | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 120 A | 800VAC, 60VDC - Max | 96000VA, 7200W | 208 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
K10P-11DT5-24RELAY GEN PURPOSE DPDT 15A 24V |
2,920 | - |
|
Datasheet | K10 | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 37 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | 2.4 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
G7J-4A-B DC24RELAY GEN PURPOSE 4PST 25A 24V |
4,095 | - |
|
Datasheet | G7J | Bulk | Active | Chassis Mount | 24VDC | 4PST-NO (DM) (4 Form X) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 83 mA | Non Latching | Test Button | Screw Terminal | - | - | 18 VDC | 2.4 VDC | 50 ms | 50 ms | -25°C ~ 60°C | - | General Purpose | - | - |
|
67.22.9.012.4300RELAY GEN PURPOSE DPST 50A 12V |
3,166 | - |
|
Datasheet | 67 | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 50 A | 690VAC - Max | 34500VA | 141 mA | Non Latching | - | PC Pin | - | - | 10.8 VDC | 0.6 VDC | 25 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
24624-10-BXCVP RELAY |
2,837 | - |
|
Datasheet | - | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 100 A | 27VDC - Max | - | 315.8 mA | Non Latching | - | Stud | - | - | - | - | - | - | -40°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
KUEP-11A15-120RELAY GEN PURPOSE DPDT 10A 120V |
1,258 | - |
|
Datasheet | KUEP | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 150VDC - Max | 1500VA | 24 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
1218410000RELAY GEN PURPOSE DPDT 6A 24V |
3,537 | - |
|
Datasheet | FG | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | 1500VA | 31.6 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | 18 VDC | 2.4 VDC | 12 ms | 6 ms | -40°C ~ 70°C | Silver Copper Nickel (AgCuNi) | General Purpose | - | - |
|
|
67.23.9.024.4300RELAY GEN PURPOSE 3PST 50A 24V |
1,166 | - |
|
Datasheet | 67 | Box | Active | Through Hole | 24VDC | 3PST-NO (3 Form A) | 50 A | 690VAC - Max | 34500VA | 71 mA | Non Latching | - | PC Pin | - | - | 21.6 VDC | 1.2 VDC | 25 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
G7J-2A2B-B-W1 AC100/120RELAY GEN PURPOSE 4PST 25A 120V |
3,514 | - |
|
Datasheet | G7J | Bulk | Active | Chassis Mount | 120VAC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 21.6 mA | Non Latching | Bracket Included, Test Button | Screw Terminal | - | - | 75 VAC | 18 VAC | 50 ms | 50 ms | -25°C ~ 60°C | - | General Purpose | - | - |
|

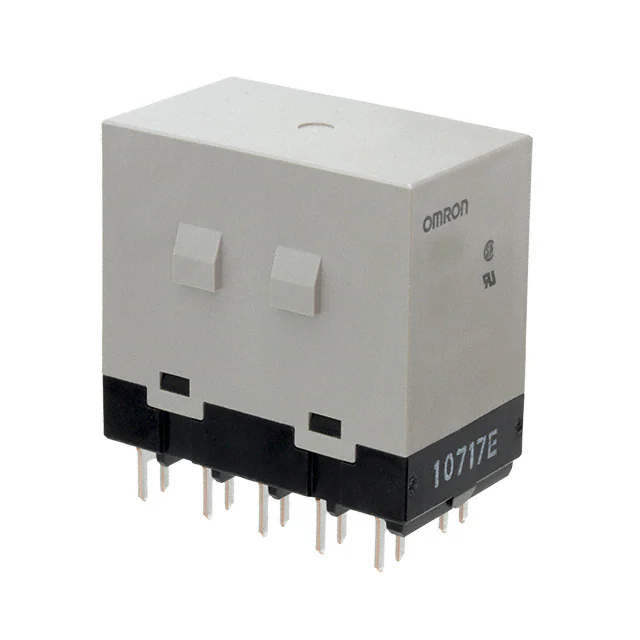

G7J-4A-P DC24RELAY GEN PURPOSE 4PST 25A 24V |
1,859 | - |
|
Datasheet | G7J | Bulk | Active | Through Hole | 24VDC | 4PST-NO (DM) (4 Form X) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 83 mA | Non Latching | Test Button | PC Pin | - | - | 18 VDC | 2.4 VDC | 50 ms | 50 ms | -25°C ~ 60°C | - | General Purpose | - | - |
