Power Relays, Over 2 Amps
Compare the current Power Relays, Over 2 Amps Relays selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8501RS41V14PLUG IN RELAY, TYPE R, MINIATURE |
1,424 | - |
|
Datasheet | Square D 8501R | Box | Active | Socketable | 24VAC | SPDT (1 Form C) | 15 A | 300VAC, 30VDC - Max | 4500VA, 450W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
389FXBXC1240APWR RELAY, DPDT, 25A, 240VAC, FL |
3,427 | - |
|
Datasheet | SE | Box | Obsolete | Chassis Mount | 240VAC | DPDT (2 Form C) | 25 A | 600VAC - Max | 15000VA | 33.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 204 VAC | 24 VAC | - | - | -30°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
199DX3OPEN PWR RY, SPST-NO-DM, 40A, 24 |
1,723 | - |
|
Datasheet | SE | Box | Obsolete | Chassis Mount | 24VDC | SPST-NO (DM) (1 Form X) | 40 A | 600VDC - Max | 24000W | 82.8 mA | Non Latching | - | Screw Terminal | - | - | 20.4 VDC | 2.4 VDC | - | - | -55°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
8501KUR13P14V20PLUG IN RELAY, TYPE KU, BLADE, 0 |
1,023 | - |
|
Datasheet | Square D 8501K | Box | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

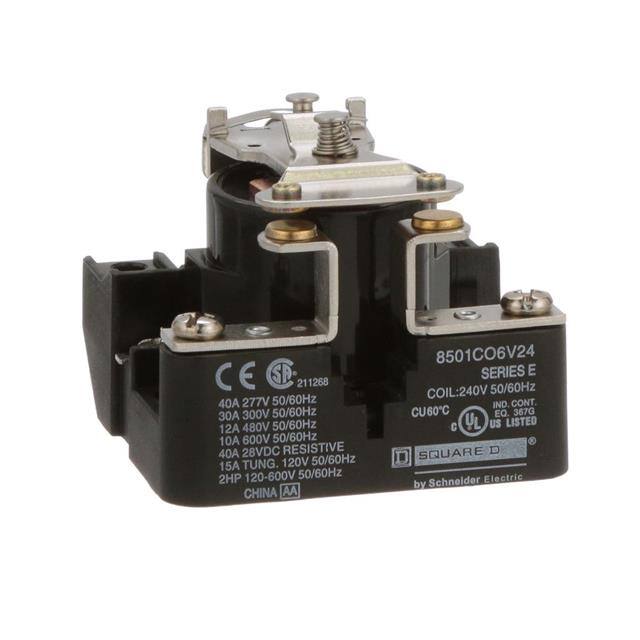

8501CO6V24POWER RELAY, TYPE C, 2.0 HP, 30A |
4,843 | - |
|
Datasheet | Square D 8501C | Box | Active | Chassis Mount | 240VAC | SPST-NO (1 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|
8501CO6V36POWER RELAY, TYPE C, 2.0 HP, 30A |
2,929 | - |
|
Datasheet | Square D 8501C | Box | Obsolete | Chassis Mount | 12VAC | SPST-NO (1 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|
8501CDO6V51POWER RELAY, TYPE C, 2.0 HP, 30A |
3,119 | - |
|
Datasheet | Square D 8501C | Box | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 60°C | - | General Purpose | - | - |
|
8501RS14V14PLUG IN RELAY, TYPE R, MINIATURE |
1,809 | - |
|
Datasheet | Square D 8501R | Box | Active | Socketable | 24VAC | 4PDT (4 Form C) | 8 A | 300VAC, 30VDC - Max | 2400VA, 240W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
8501KUDR12V51RELAY 2CO QC PIN 10A@240V 12VDC |
1,257 | - |
|
Datasheet | Square D 8501K | Box | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | - | Plug In, 8 Pin | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
8501KUDR12V60RELAY 2CO QC PINS 10A@240V 240VA |
4,847 | - |
|
Datasheet | Square D 8501K | Box | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
How can I narrow the current Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Relays, Over 2 Amps parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
