Power Relays, Over 2 Amps
Browse available Power Relays, Over 2 Amps components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP2-L2-DC12VRELAY GEN PURPOSE DPDT 15A 12V |
313 | - |
|
Datasheet | SP | Box | Active | Socketable | 12VDC | DPDT (2 Form C) | 15 A | 250VAC, 30VDC - Max | 3750VA, 450W | 25 mA | Latching, Dual Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 8.4 VDC | - | 30 ms | 30 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
2909509RELAY GEN PURPOSE DPDT 6A 24V |
321 | - |
|
Datasheet | PLC-RSC | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
T92P7D12-24RELAY GEN PURPOSE DPST 30A 24V |
1,339 | - |
|
Datasheet | T92 | Bulk | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 70.8 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T92P7D22-24BRIDGE 1-PH KBPC8-PB10 800V 150C |
1,065 | - |
|
Datasheet | T92 | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 70.8 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T92S7D22-12RELAY GEN PURPOSE DPST 30A 12V |
847 | - |
|
Datasheet | T92 | Bulk | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 140 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T92S7D22-24RELAY GEN PURPOSE DPST 30A 24V |
1,030 | - |
|
Datasheet | T92 | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 70.8 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T92P7D22-12RELAY GEN PURPOSE DPST 30A 12V |
969 | - |
|
Datasheet | T92 | Bulk | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 140 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
788-303RELAY GEN PURPOSE SPDT 16A 12V |
288 | - |
|
Datasheet | 788 | Bulk | Active | DIN Rail | 12VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 36 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | 10.8 VDC | - | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
788-312RELAY GEN PURPOSE DPDT 8A 24V |
217 | - |
|
Datasheet | 788 | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 19 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | 21.6 VDC | - | 8 ms | 13 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

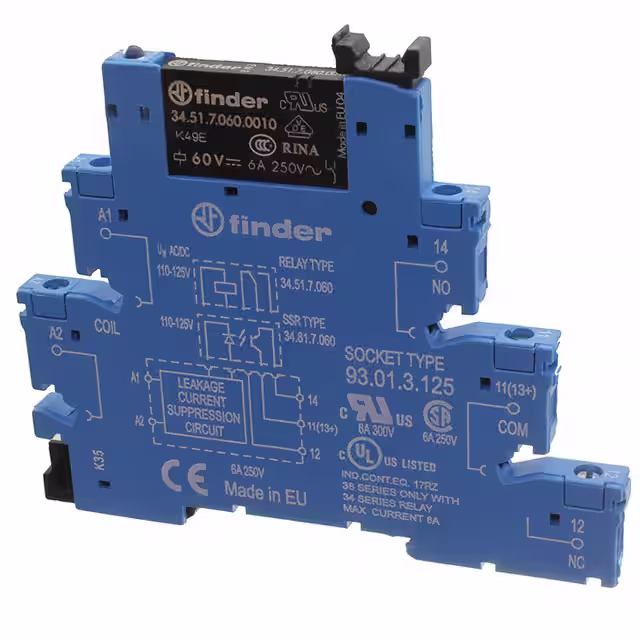

38.51.3.125.0060RELAY GEN PURPOSE SPDT 6A 125V |
190 | - |
|
Datasheet | 38 | Bulk | Active | DIN Rail | 125VAC/DC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 5 mA | Non Latching | Socket Included | Screw Terminal | - | - | 88 VAC/DC | 12.5 VAC/DC | 5 ms | 6 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
SP2-P-DC24VRELAY GEN PURPOSE DPDT 15A 24V |
775 | - |
|
Datasheet | SP | Box | Active | Through Hole | 24VDC | DPDT (2 Form C) | 15 A | 250VAC, 30VDC - Max | 3750VA, 450W | 12.5 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 30 ms | 20 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
T92S7A12-120RELAY GEN PURPOSE DPST 30A 120V |
962 | - |
|
Datasheet | T92 | Bulk | Active | Through Hole | 120VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 96 VAC | 12 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T92P7A22-240RELAY GEN PURPOSE DPST 30A 240V |
4,526 | - |
|
Datasheet | T92 | Bulk | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 16.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 192 VAC | 24 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T92S11D12-24RELAY GEN PURPOSE DPDT 30A 24V |
1,650 | - |
|
Datasheet | T92 | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 70.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T92S11D22-24RELAY GEN PURPOSE DPDT 30A 24V |
867 | - |
|
Datasheet | T92 | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 70.8 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T92P11D22-12RELAY GEN PURPOSE DPDT 30A 12V |
801 | - |
|
Datasheet | T92 | Tray | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 140 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T92S11D22-12RELAY GEN PURPOSE DPDT 30A 12V |
1,495 | - |
|
Datasheet | T92 | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 140 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
HE1AN-W-DC12V-Y6RELAY GEN PURPOSE SPST 90A 12V |
5,497 | - |
|
Datasheet | HE-PV | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 90 A | 490VAC, 48VDC - Max | 44100VA, 4320W | 160 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
HE1AN-W-DC24V-Y6RELAY GEN PURPOSE SPST 90A 24V |
4,390 | - |
|
Datasheet | HE-PV | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 90 A | 490VAC, 48VDC - Max | 44100VA, 4320W | 80 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
T92P11A22-120RELAY GEN PURPOSE DPDT 30A 120V |
1,490 | - |
|
Datasheet | T92 | Bulk | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 33.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 96 VAC | 12 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
