Power Relays, Over 2 Amps
Compare the current Power Relays, Over 2 Amps Relays selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

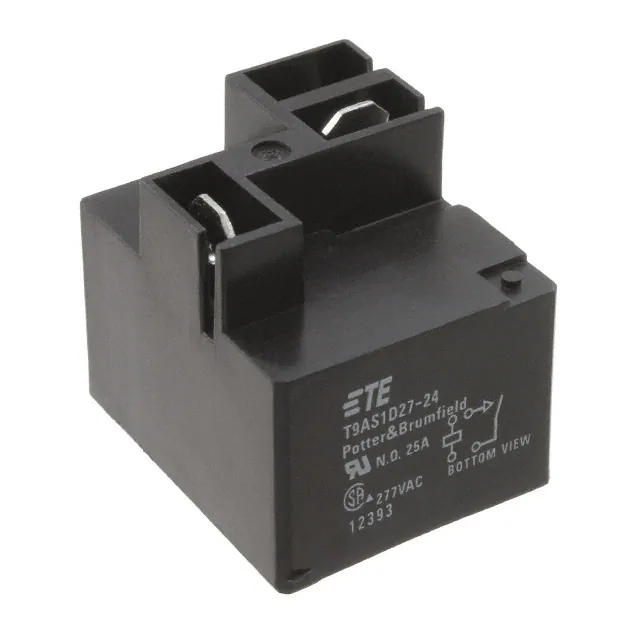

T9AS1D27-24RELAY GEN PURPOSE SPST 21A 24V |
3,489 | - |
|
Datasheet | T9A | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 21 A | 277VAC - Max | 5817VA | 41.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
1-1956171-4RELAY GEN PURPOSE SPST 8A 12V |
560 | - |
|
Datasheet | RY, SCHRACK | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | - | Class F | - | - | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RP420110RELAY GEN PURPOSE DPDT 8A 110V |
3,387 | - |
|
Datasheet | RP II/2, SCHRACK | Bulk | Obsolete | Through Hole | 110VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 4.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 77 VDC | 11 VDC | 9 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
1-1415543-5RELAY GEN PURPOSE DPST 8A 110V |
1,470 | - |
|
Datasheet | RT2, SCHRACK | Bulk | Active | Through Hole | 110VDC | DPST-NO (2 Form A) | 8 A | 400VAC - Max | 3200VA | 3.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 77 VDC | 11 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
1-1393219-6PE015048 |
4,191 | - |
|
Datasheet | PE, SCHRACK | Tube | Discontinued at Digi-Key | Through Hole | 48VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 4.4 mA | Non Latching | - | PC Pin | - | - | 36 VDC | 4.8 VDC | 8 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
1-1904022-1RELAY GEN PURPOSE SPDT 30A 12V |
114 | - |
|
Datasheet | V23234, AXICOM | Bulk | Obsolete | Chassis Mount | 12VDC | SPDT (1 Form C) | 30 A | 12VDC - Nom | - | 141.2 mA | Non Latching | Resistor | Quick Connect - 0.187"/0.250" | - | - | 8 VDC | 1.5 VDC | 7 ms | 2 ms | -40°C ~ 105°C | Silver Alloy | General Purpose | - | - |
|
|
1-1393234-6RELAY GEN PURP |
128 | - |
|
Datasheet | RP II/1, SCHRACK | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 8 ms | 2 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
2-1415898-1RELAY GEN PURPOSE SPST 16A 48V |
3,544 | - |
|
Datasheet | RT1, Inrush, SCHRACK | Bulk | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 480VAC - Max | 6400VA | 8.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
4-1415382-1RELAY GEN PURPOSE SPST 12A 24V |
4,146 | - |
|
Datasheet | RT1, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 27.1 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 13.2 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
2-1393238-3RELAY GEN PURPOSE SPDT 12A 110V |
1,100 | - |
|
Datasheet | RT1, SCHRACK | Bulk | Active | Through Hole | 110VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 3.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 77 VDC | 11 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
How can I narrow the current Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Relays, Over 2 Amps parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
