Power Relays, Over 2 Amps
Compare the current Power Relays, Over 2 Amps Relays selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T90N5D12-18-04RELAY PWR |
2,256 | - |
|
Datasheet | T90 | Bulk | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 30 A | 277VAC - Max | 4155VA | 47.4 mA | Non Latching | - | PC Pin | - | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T9AS5L22-48RELAY GEN PURPOSE SPDT 20A 48V |
3,944 | - |
|
Datasheet | T9A | Bulk | Active | Through Hole | 48VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 18.8 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
T9AP1D52-110RELAY GEN PURPOSE SPST 30A 110V |
4,248 | - |
|
Datasheet | T9A | Bulk | Active | Chassis Mount | 110VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 9 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 82.5 VDC | 11 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
PCLH-203D1S,000RELAY GEN PURPOSE DPDT 15A 24V |
1,876 | - |
|
Datasheet | PCLH, OEG | Tray | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 15 A | 120VAC - Max | 1800VA | 37.5 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class F | 19.2 VDC | 2.4 VDC | 15 ms | 8 ms | -40°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
4-1415541-5RTD1LA24 |
2,205 | - |
|
Datasheet | - | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | - | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
3-1415028-1RELAY GEN PURPOSE 4PDT 6A 12V |
3,806 | - |
|
Datasheet | PT, SCHRACK | Tube | Active | Socketable | 12VDC | 4PDT (4 Form C) | 6 A | 240VAC - Max | 1440VA | 62.5 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
T9AP2XD56-12RELAY GEN PURPOSE SPST 15A 12V |
4,107 | - |
|
Datasheet | T9A | Tray | Active | Chassis Mount | 12VDC | SPST-NC (1 Form B) | 15 A | 277VAC - Max | 4155VA | 83.3 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | - | General Purpose | - | - |
|
|
1-1904007-1V23234B1001X004-EV-144 |
4,609 | - |
|
Datasheet | V23234, AXICOM | Box | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 12VDC - Nom | - | 141.2 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 8 VDC | 1.5 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver (Ag) | General Purpose | - | - |
|

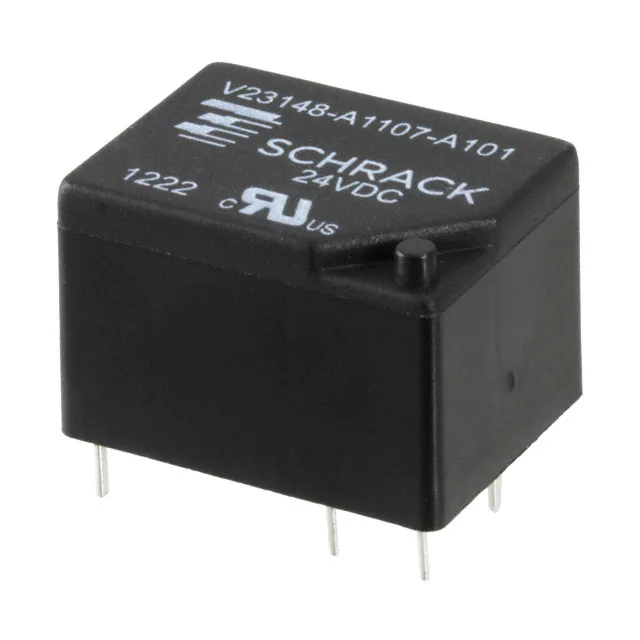

V23148A1107A101RELAY GEN PURPOSE SPDT 5A 24V |
1,451 | - |
|
Datasheet | V23148, SCHRACK | Tray | Discontinued at Digi-Key | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 16.7 mA | Non Latching | - | PC Pin | - | - | 17.5 VDC | 2.4 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
4-1415541-8RT115048 |
3,358 | - |
|
Datasheet | RT, SCHRACK | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 8.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 4.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
How can I narrow the current Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Relays, Over 2 Amps parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
