Power Relays, Over 2 Amps
Compare the current Power Relays, Over 2 Amps Relays selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6B-2114P-US DC48RELAY GEN PURPOSE DPST 5A 48V |
3,135 | - |
|
Datasheet | G6B | Bulk | Active | Through Hole | 48VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 6.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 38.4 VDC | 4.8 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G8P-1A4P DC48RELAY GEN PURPOSE SPST 30A 48V |
2,939 | - |
|
Datasheet | G8P | Bulk | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 19 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G5LE-1 DC6RELAY GEN PURPOSE SPDT 10A 6V |
4,346 | - |
|
Datasheet | G5LE | Tray | Active | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 66.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 4.2 VDC | 0.6 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
G5LE-14-ASI DC5RELAY GEN PURPOSE SPDT 10A 5V |
1,797 | - |
|
Datasheet | G5LE | Tray | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 79.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
G6M-1A DC12RELAY GEN PURPOSE SPST 3A 12V |
3,068 | - |
|
Datasheet | G6M | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 270VAC, 125VDC - Max | 810VA, 375W | 10 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | General Purpose | - | - |
|
G6M-1A DC24RELAY GEN PURPOSE SPST 3A 24V |
3,544 | - |
|
Datasheet | G6M | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 270VAC, 125VDC - Max | 810VA, 375W | 5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | General Purpose | - | - |
|
|
G6M-1A DC5RELAY GEN PURPOSE SPST 3A 5V |
3,519 | - |
|
Datasheet | G6M | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 270VAC, 125VDC - Max | 810VA, 375W | 24 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | General Purpose | - | - |
|
G6C-1117P-US-DC18RELAY GEN PURPOSE SPST 10A 18V |
1,555 | - |
|
Datasheet | G6C | Bulk | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 11.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 12.6 VDC | 1.8 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|

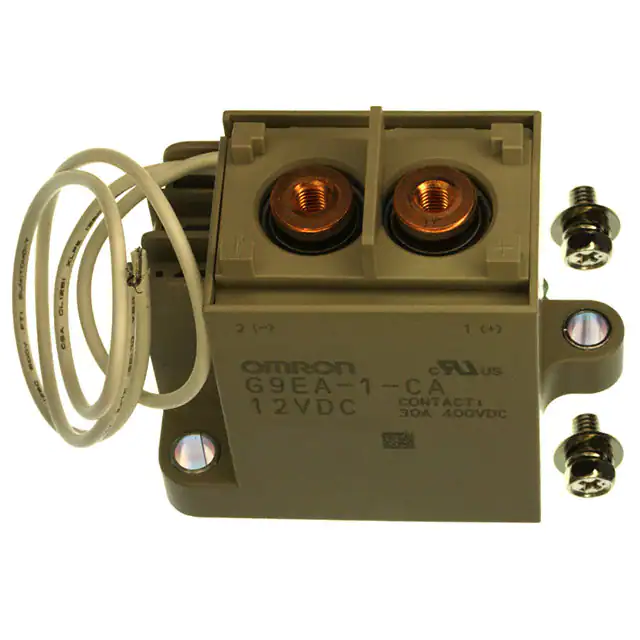

G9EA-1-CA DC12RELAY GEN PURPOSE SPST 30A 12V |
4,935 | - |
|
Datasheet | G9EA-1 | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 400VDC - Max | 12000W | 417 mA | Non Latching | - | Wire Leads | Sealed - Fully | - | 9 VDC | 0.96 VDC | 50 ms | 30 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
G9EC-1 DC24RELAY GEN PURPOSE SPST 200A 24V |
3,010 | - |
|
Datasheet | G9EC-1 | Bulk | Obsolete | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 200 A | 400VDC - Max | 80000VA | 469 mA | Non Latching | - | Wire Leads | Sealed - Fully | - | 18 VDC | 1.92 VDC | 50 ms | 30 ms | -40°C ~ 50°C | - | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
How can I narrow the current Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Relays, Over 2 Amps parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
