Power Relays, Over 2 Amps
Compare the current Power Relays, Over 2 Amps Relays selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6C-1114P-VD-DC12RELAY GEN PURPOSE SPST 10A 12V |
4,084 | - |
|
Datasheet | G6C | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G6C-2114C-US-DC24RELAY GEN PURPOSE DPST 8A 24V |
2,524 | - |
|
Datasheet | G6C | Bulk | Active | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G6C-2114P-FD-US DC12RELAY GEN PURPOSE DPST 8A 12V |
3,367 | - |
|
Datasheet | G6C | Bulk | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Indium Tin (AgInSn) | General Purpose | - | - |
|
|
G6C-2114P-US-AP DC12RELAY GEN PURPOSE DPST 8A 12V |
4,267 | - |
|
Datasheet | G6C | Bulk | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G6C-2117C-US DC3RELAY GEN PURPOSE DPST 8A 3V |
2,231 | - |
|
Datasheet | G6C | Bulk | Active | Through Hole | 3VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 67 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 2.1 VDC | 0.3 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G6C-2BND-DC24RELAY GEN PURPOSE DPST 8A 24V |
1,357 | - |
|
Datasheet | G6C-4 | Bulk | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 8.3 mA | Non Latching | Socket Included | Screw Terminal | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | General Purpose | - | - |
|

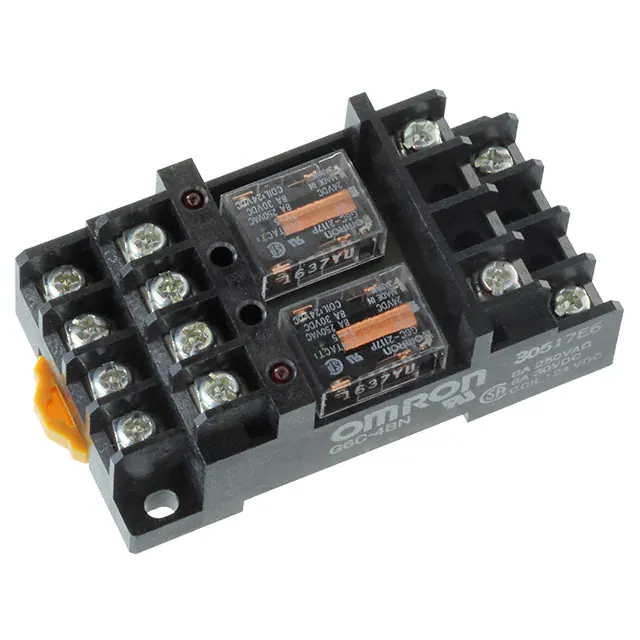

G6C-4BND DC24RELAY GEN PURPOSE DPST 8A 24V |
3,094 | - |
|
Datasheet | G6C-4 | Bulk | Active | DIN Rail | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) x 2 | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 8.3 mA | Non Latching | Socket Included | Screw Terminal | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | General Purpose | - | - |
|
|
G6C-4BND DC5RELAY GEN PURPOSE DPST 8A 5V |
2,396 | - |
|
Datasheet | G6C-4 | Bulk | Active | DIN Rail | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) x 2 | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 40 mA | Non Latching | Socket Included | Screw Terminal | - | - | 3.5 VDC | 0.5 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | General Purpose | - | - |
|
|
G6CU-1114P-FD-US DC5RELAY GEN PURPOSE SPST 10A 5V |
1,702 | - |
|
Datasheet | G6C | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 40 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Indium Tin (AgInSn) | General Purpose | - | - |
|
|
G6EU-134PL-ST-US-DC12RELAY GEN PURPOSE SPDT 3A 12V |
4,321 | - |
|
Datasheet | G6E | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 33.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
How can I narrow the current Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Relays, Over 2 Amps parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
