Power Relays, Over 2 Amps
Compare the current Power Relays, Over 2 Amps Relays selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NC2EBD-P-DC48VRELAY GEN PURPOSE DPDT 5A 48V |
2,208 | - |
|
Datasheet | NC | Tube | Active | Through Hole | 48VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 7.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 38.4 VDC | 4.8 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
S4EB-3VRELAY GEN PURPOSE 4PST 4A 3V |
1,395 | - |
|
Datasheet | S | Box | Active | Through Hole | 3VDC | 4PST-NO (4 Form A) | 4 A | 250VAC, 48VDC - Max | 1000VA, 192W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.1 VDC | 0.3 VDC | 15 ms | 10 ms | -55°C ~ 65°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
HE2AN-DC110VRELAY GEN PURPOSE DPST 25A 110V |
3,355 | - |
|
Datasheet | HE | Bulk | Active | Chassis Mount | 110VDC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | 6925VA, 750W | 17.5 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 77 VDC | 11 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
DK2A-L2-12VRELAY GEN PURPOSE DPST 8A 12V |
1,177 | - |
|
Datasheet | DK | Box | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 16.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 10 ms | 8 ms | -40°C ~ 65°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
NC2EBD-JP-DC110VRELAY GEN PURPOSE DPDT 5A 110V |
1,396 | - |
|
Datasheet | NC | Box | Active | Through Hole | 110VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 8.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 88 VDC | 11 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|

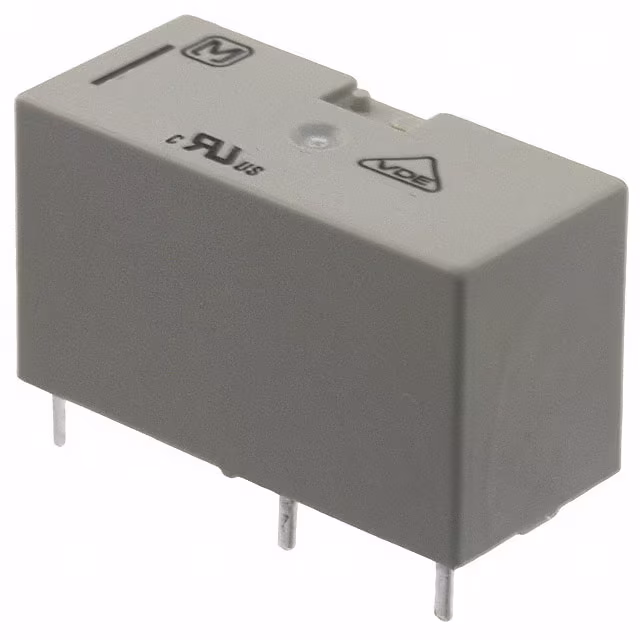

ADJ14005RELAY GEN PURPOSE SPDT 16A 5V |
3,440 | - |
|
Datasheet | ADJ | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ADJ13105RELAY GEN PURPOSE SPDT 16A 5V |
2,975 | - |
|
Datasheet | ADJ | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 50 mA | Latching, Dual Coil | Test Button | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
HE1AN-Q-AC24VRELAY GEN PURPOSE SPST 30A 24V |
3,291 | - |
|
Datasheet | HE | Bulk | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 8310VA, 900W | 74 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 16.8 VAC | 3.6 VAC | 30 ms | 30 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
HE1AN-AC12VRELAY GEN PURPOSE SPST 30A 12V |
4,001 | - |
|
Datasheet | HE | Bulk | Active | Chassis Mount | 12VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 8310VA, 900W | 138 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 8.4 VAC | 1.8 VAC | 30 ms | 30 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
HE2AN-SW-DC12VRELAY GEN PURPOSE DPST 25A 12V |
1,341 | - |
|
Datasheet | HE | Bulk | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | 6925VA, 750W | 160 mA | Non Latching | - | Screw Terminal | - | - | 8.4 VDC | 1.2 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
