Power Relays, Over 2 Amps
Browse available Power Relays, Over 2 Amps components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKS1XT-10 AC24RELAY GEN PURPOSE SPST 10A 24V |
4,060 | - |
|
Datasheet | MKS-X | Tray | Obsolete | Socketable | 24VAC | SPST-NO (1 Form A) | 10 A | 220VDC - Max | 2200W | 96.3 mA | Non Latching | - | Plug In | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
LY4F-AC120RELAY GEN PURPOSE 4PDT 10A 120V |
4,503 | - |
|
Datasheet | LY | Tray | Obsolete | Chassis Mount | 120VAC | 4PDT (4 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 16.4 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver Alloy | General Purpose | - | - |
|
RUMC21JDRLY 2CO CYL PINS 10A@250V 12VDC |
2,734 | - |
|
Datasheet | Harmony | Box | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 100 mA | Non Latching | Test Button | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RM835048RELAY GEN PURPOSE DPDT 25A 48V |
2,293 | - |
|
Datasheet | RM, SCHRACK | Bulk | Obsolete | Chassis Mount | 48VDC | DPDT (2 Form C) | 25 A | 400VAC - Max | 10000VA | 25 mA | Non Latching | Mechanical Indicator, Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -45°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
MT321220RELAY GEN PURPOSE 3PDT 10A 220V |
2,625 | - |
|
Datasheet | MT, SCHRACK | Bulk | Obsolete | Socketable | 220VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 2500VA | 5.7 mA | Non Latching | Test Button | Plug In, 11 Pin (Octal) | - | Class B | 165 VDC | 22 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
730-2QR-220VACRELAY GEN PURPOSE DPST 25A 220V |
2,130 | - |
|
Datasheet | 730 | Box | Active | DIN Rail | 220VAC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | - | 11.8 mA | - | Test Button | Quick Connect - 0.250" (6.3mm) | - | - | - | - | 30 ms | 30 ms | -10°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
730-2QR-24VDCRELAY GEN PURPOSE DPST 25A 24V |
3,923 | - |
|
Datasheet | 730 | Box | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | - | 79 mA | - | Test Button | Quick Connect - 0.250" (6.3mm) | - | - | - | - | 30 ms | 30 ms | -10°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
730-2QR-110VACRELAY GEN PURPOSE DPST 25A 110V |
2,415 | - |
|
Datasheet | 730 | Box | Active | DIN Rail | 110VAC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | - | 24.5 mA | - | Test Button | Quick Connect - 0.250" (6.3mm) | - | - | - | - | 30 ms | 30 ms | -10°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
RUMF22P7HARMONY, UNIVERSAL PLUG-IN RELAY |
3,307 | - |
|
Datasheet | Harmony | Box | Obsolete | Socketable | 230VAC | DPDT (2 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 33.8 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 184 VAC | 34.5 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
730-2TB-220VACRELAY GEN PURPOSE DPST 25A 220V |
2,369 | - |
|
Datasheet | 730 | Box | Active | Chassis Mount | 220VAC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | - | 11.8 mA | - | Test Button | Screw Terminal | - | - | - | - | 30 ms | 30 ms | -10°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
730-2TB-24VDCRELAY GEN PURPOSE DPST 25A 24V |
1,068 | - |
|
Datasheet | 730 | Box | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | - | 79 mA | - | Test Button | Screw Terminal | - | - | - | - | 30 ms | 30 ms | -10°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
730-2TB-110VACRELAY GEN PURPOSE DPST 25A 110V |
1,969 | - |
|
Datasheet | 730 | Box | Active | Chassis Mount | 110VAC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | - | 24.5 mA | - | Test Button | Screw Terminal | - | - | - | - | 30 ms | 30 ms | -10°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
1393230-6RELAY GEN PURPOSE SPST 16A 24V |
1,246 | - |
|
Datasheet | RP3SL, SCHRACK | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 52 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | - | 30 ms | 25 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
KUP-11D55-6RELAY GEN PURPOSE DPDT 10A 6V |
4,240 | - |
|
Datasheet | KUP | Bulk | Obsolete | Chassis Mount | 6VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 187 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 4.5 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RV8H-2L-D18-C1D2RELAY GEN PURPOSE DPDT 8A 18V |
4,290 | - |
|
Datasheet | RV8 | Bulk | Active | DIN Rail | 18VDC | DPDT (2 Form C) | 8 A | 250VAC - Nom | - | 24 mA | Non Latching | Socket Included | Screw Terminal | - | - | 14.4 VDC | 1.26 VDC | 15 ms | 15 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|

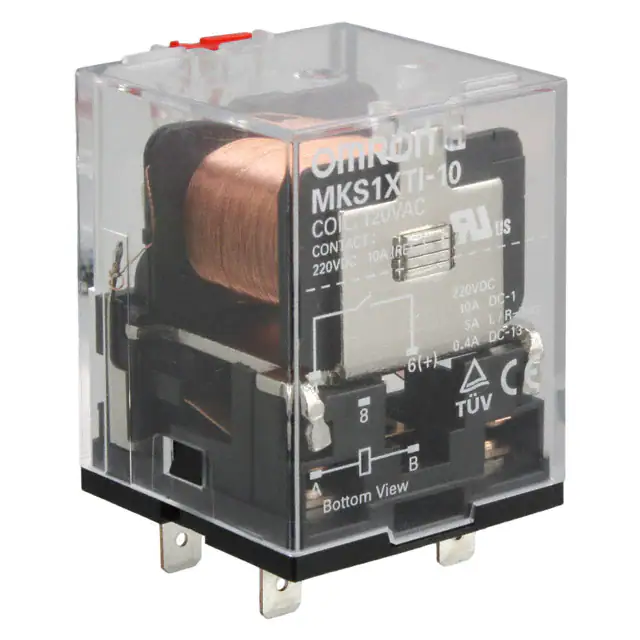

MKS1XTI-10 AC120RELAY GEN PURPOSE SPST 10A 120V |
3,991 | - |
|
Datasheet | MKS-X | Tray | Obsolete | Socketable | 120VAC | SPST-NO (1 Form A) | 10 A | 220VDC - Max | 2200W | 19.3 mA | Non Latching | Test Button | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
|
38.62.0.024.0060RELAY GEN PURPOSE DPDT 8A 24V |
2,053 | - |
|
Datasheet | 38 | Bulk | Active | DIN Rail | 24VAC/DC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 20 mA | Non Latching | Socket Included | Spring Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 8 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
ADQ23Q006RELAY GEN PURPOSE SPST 30A 6V |
3,469 | - |
|
Datasheet | ADQ | Tube | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 167 mA | Latching, Dual Coil | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | - | 4.2 VDC | - | 20 ms | 20 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
LY3N-AC240RELAY GEN PURPOSE 3PDT 10A 240V |
1,672 | - |
|
Datasheet | LY | Bulk | Obsolete | Socketable | 240VAC | 3PDT (3 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 8 mA | Non Latching | Lighted Indicator | Plug In | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|

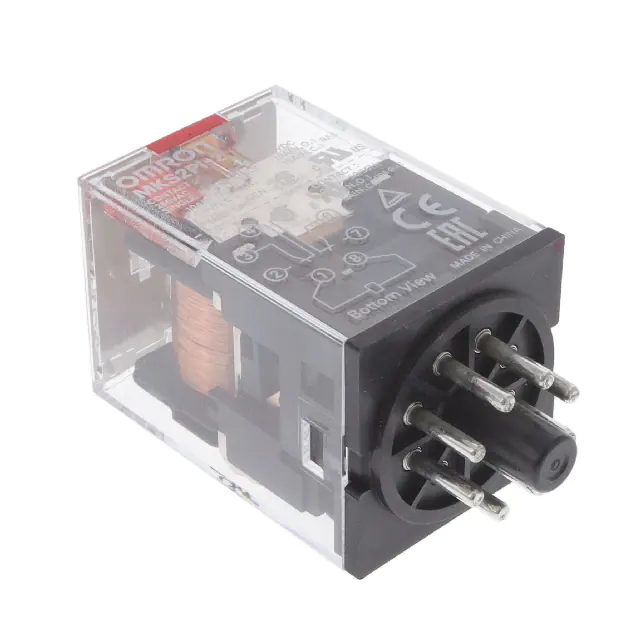

MKS2PI-2 AC120RELAY GEN PURPOSE DPDT 10A 120V |
2,528 | - |
|
Datasheet | MK-S | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 19.3 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
