Power Relays, Over 2 Amps
Browse available Power Relays, Over 2 Amps components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KA-11DG-24RELAY GEN PURPOSE DPDT 10A 24V |
2,333 | - |
|
Datasheet | KA | Bulk | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 10 A | 240VAC - Nom | - | 51 mA | Non Latching | - | Solder Lug | - | Class B | 18 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1-1415535-9RELAY GEN PURPOSE 4PDT 6A 24V |
3,093 | - |
|
Datasheet | PT, SCHRACK | Bulk | Active | DIN Rail | 24VAC | 4PDT (4 Form C) | 6 A | 240VAC - Max | 1440VA | 125 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Socket Included, Test Button | Screw Terminal | - | Class F | 19.2 VAC | 7.2 VAC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
G7J4ABAC24RELAY |
1,339 | - |
|
Datasheet | G7J | Bulk | Active | Chassis Mount | 24VAC | 4PST-NO (DM) (4 Form X) | 25 A | 250VAC, 125VDC - Max | - | 75 mA | Non Latching | Test Button | Screw Terminal | - | - | 18 VAC | 3.6 VAC | 50 ms | 50 ms | -25°C ~ 60°C | - | General Purpose | - | - |
|
|
KUH-7D47-12RELAY GEN PURPOSE DPST 20A 12V |
3,466 | - |
|
Datasheet | KUH | Bulk | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 20 A | 240VAC - Max | - | 100 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | - | 20 ms | 20 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KU-14A35-120RELAY GEN PURPOSE 3PDT 10A 120V |
3,050 | - |
|
Datasheet | KU | Bulk | Obsolete | Chassis Mount | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | - | 17.5 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
2617840000RELAY GEN PURPOSE SPDT 6A 120V |
4,084 | - |
|
Datasheet | TERMSERIES | Box | Active | DIN Rail | 120VAC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 7 mA | Non Latching | Lighted Indicator, RC Circuit, Socket Included | Spring Terminal | - | - | 88 VAC | 43 VAC | 15 ms | 50 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
8501CO6V04POWER RELAY, TYPE C, 2.0 HP, 30A |
2,515 | - |
|
Datasheet | Square D 8501C | Box | Active | Chassis Mount | 277VAC | SPST-NO (1 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|
8501CO6V14POWER RELAY, TYPE C, 2.0 HP, 30A |
2,624 | - |
|
Datasheet | Square D 8501C | Box | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|
|
KU-11D15-24RELAY GEN PURPOSE DPDT 10A 24V |
3,852 | - |
|
Datasheet | KU | Bulk | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | - | 51 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KUP-11D17-48RELAY GEN PURPOSE DPDT 10A 48V |
1,111 | - |
|
Datasheet | KUP | Bulk | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 26.7 mA | Non Latching | - | PC Pin | - | Class B | 36 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUHP-11A11-120RELAY GEN PURPOSE DPDT 20A 120V |
1,000 | - |
|
Datasheet | KUHP | Bulk | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 24 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 102 VAC | - | 20 ms | 20 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
8501CO6V29POWER RELAY, TYPE C, 2.0 HP, 30A |
3,556 | - |
|
Datasheet | Square D 8501C | Box | Active | Chassis Mount | 480VAC | SPST-NO (1 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|
8501CO6V20POWER RELAY, TYPE C, 2.0 HP, 30A |
1,987 | - |
|
Datasheet | Square D 8501C | Box | Active | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|
|
R10-E2616-1RELAY DRY CIR 8A PCB |
4,667 | - |
|
Datasheet | R10 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
R10-E1W2-S50RELAY GEN PURPOSE DPDT 7.5A 3V |
3,335 | - |
|
Datasheet | R10 | Bulk | Active | Socketable | 3VDC | DPDT (2 Form C) | 7.5 A | 120VAC - Nom | - | 60 mA | Non Latching | - | Plug In | - | - | 2.25 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
KU-11D45-12RELAY GEN PURPOSE DPDT 10A 12V |
4,192 | - |
|
Datasheet | KU | Bulk | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | - | 100 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | 15 ms | 10 ms | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
8501CO8V29POWER RELAY, TYPE C, 2.0 HP, 30A |
2,732 | - |
|
Datasheet | Square D 8501C | Box | Obsolete | Chassis Mount | 480VAC | SPST-NC (1 Form B) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|
KRPA-5DG-110RELAY GEN PURPOSE SPDT 10A 110V |
1,674 | - |
|
Datasheet | KRPA | Bulk | Active | Socketable | 110VDC | SPDT (1 Form C) | 10 A | 240VAC - Max | 2400VA | 11.5 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 82.5 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
8501RS42V14PLUG IN RELAY, TYPE R, MINIATURE |
3,626 | - |
|
Datasheet | Square D 8501R | Box | Active | Socketable | 24VAC | DPDT (2 Form C) | 15 A | 300VAC, 30VDC - Max | 4500VA, 450W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

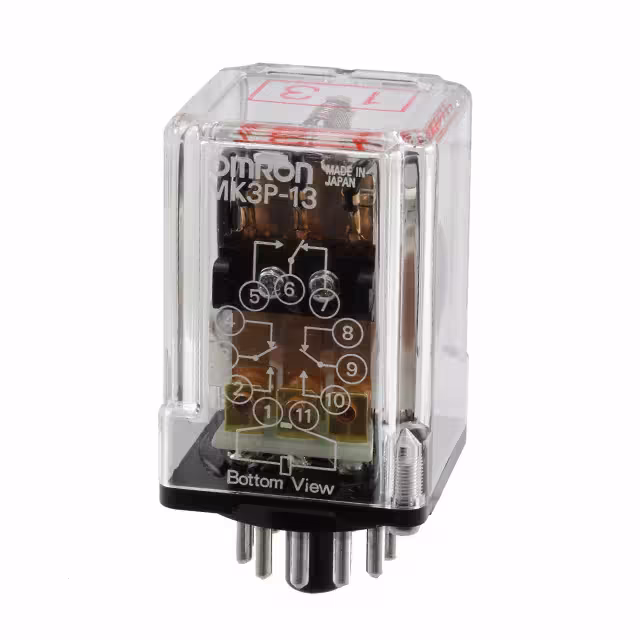

MK3P-13-DC24RELAY GEN PURPOSE 3PDT 10A 24V |
2,374 | - |
|
Datasheet | MK | Bulk | Obsolete | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 250VAC, 250VDC - Max | 2500VA, 280W | 56 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | - | 19.2 VDC | 3.6 VDC | 30 ms | 20 ms | -10°C ~ 40°C | Silver (Ag) | General Purpose | - | - |
