Power Relays, Over 2 Amps
Browse available Power Relays, Over 2 Amps components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

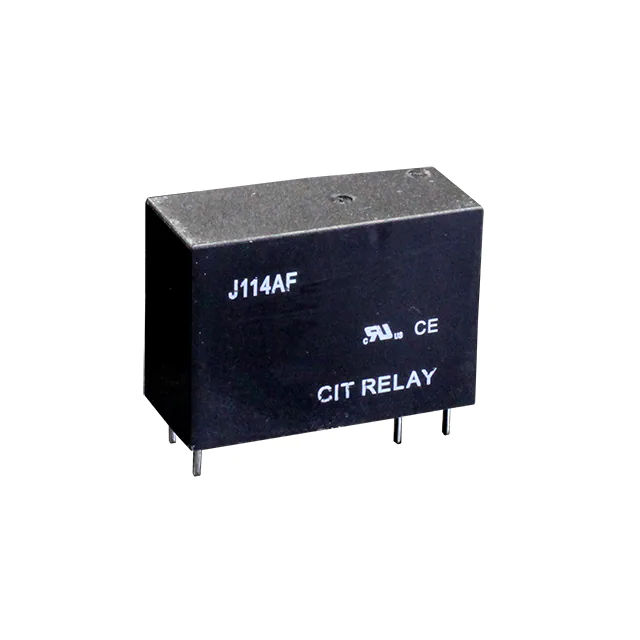

J114AF1AS24VDC.53RELAY GEN PURPOSE SPST 16A 24V |
2,195 | - |
|
Datasheet | J114AF | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 380VAC, 110VDC - Max | 6080VA, 1760W | 22.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 20 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ALDP105WRELAY GEN PURPOSE SPST 5A 5V |
6,697 | - |
|
Datasheet | ALDP | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 40 mA | Non Latching | - | PC Pin | - | Class E | 3.75 VDC | 0.25 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

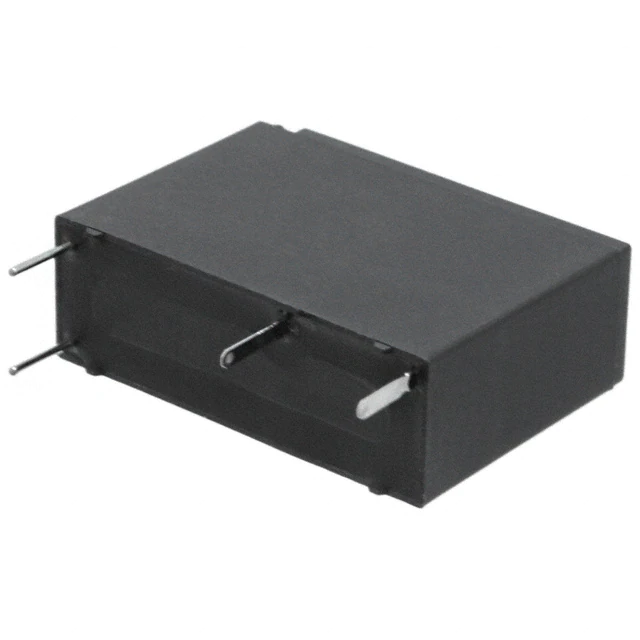

ALDP112WRELAY GEN PURPOSE SPST 5A 12V |
5,264 | - |
|
Datasheet | ALDP | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 16.7 mA | Non Latching | - | PC Pin | - | Class E | 9 VDC | 0.6 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
ALDP109WRELAY GEN PURPOSE SPST 5A 9V |
998 | - |
|
Datasheet | ALDP | Box | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 22.2 mA | Non Latching | - | PC Pin | - | Class E | 6.75 VDC | 0.45 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RZ03-1A4-D024RELAY GEN PURPOSE SPST 16A 24V |
23,510 | - |
|
Datasheet | RZ, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
AZ576-1A-12DERELAY GEN PURPOSE SPST 20A 12V |
990 | - |
|
Datasheet | AZ576 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 480VAC, 30VDC - Max | 5540VA, 510W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 8 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
G6DN-1A DC24RELAY GEN PURPOSE SPST 5A 24V |
8,641 | - |
|
Datasheet | G6DN | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 125VDC - Max | 1385VA, 625W | 4.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 16.8 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Alloy | General Purpose | - | - |
|
|
J114AF1AHS24VDC.53RELAY GEN PURPOSE SPST 16A 24V |
4,561 | - |
|
Datasheet | J114AF | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 380VAC, 110VDC - Max | 6080VA, 1760W | 22.9 mA | Non Latching | Alternate Pinout | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 20 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

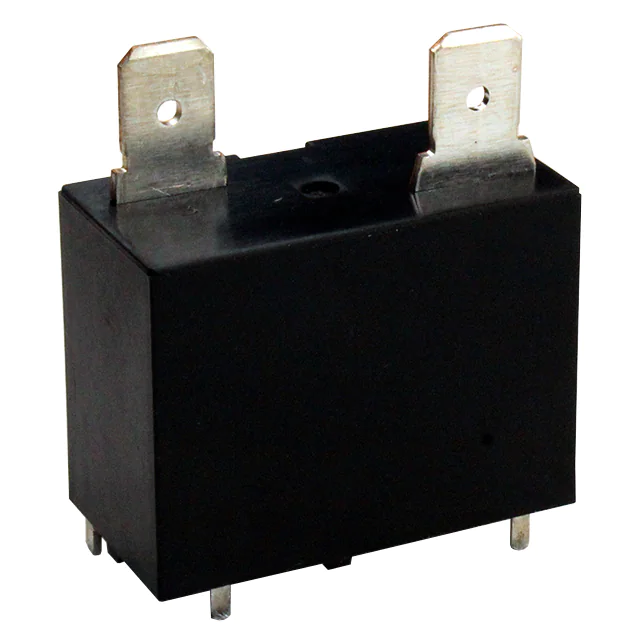

J120D1AS12VDCRELAY GEN PURPOSE SPST 20A 12V |
2,898 | - |
|
Datasheet | J120D | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 300VAC - Max | 6000VA | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | - | 9 VDC | 1.2 VDC | 20 ms | 10 ms | -30°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
G6DN-1A-SL DC24RELAY GEN PURPOSE SPST 5A 24V |
457 | - |
|
Datasheet | G6DN | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 125VDC - Max | 1385VA, 625W | 4.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 16.8 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Alloy | General Purpose | - | - |
|
|
G6DN-1A DC12RELAY GEN PURPOSE SPST 5A 12V |
8,381 | - |
|
Datasheet | G6DN | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 125VDC - Max | 1385VA, 625W | 9.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 8.4 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Alloy | General Purpose | - | - |
|
AZ2150-1A-12DERELAY GEN PURPOSE SPST 40A 12V |
3,660 | - |
|
Datasheet | AZ2150 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 30VDC - Max | 12000VA, 1200W | 77.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 12 ms | 5 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J114AF2CS12VDC.53RELAY GEN PURPOSE DPDT 8A 12V |
8,595 | - |
|
Datasheet | J114AF | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 380VAC, 110VDC - Max | 3040VA, 880W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 20 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
JW2SN-DC12VRELAY GEN PURPOSE DPDT 5A 12V |
5,639 | - |
|
Datasheet | JW | Box | Active | Through Hole | 12VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 44 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
AZ2150-1A-24DERELAY GEN PURPOSE SPST 40A 24V |
244 | - |
|
Datasheet | AZ2150 | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 30VDC - Max | 12000VA, 1200W | 36.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 12 ms | 5 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
G6RL-1A4-ASI DC5RELAY GEN PURPOSE SPST 10A 5V |
20,149 | - |
|
Datasheet | G6RL | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 2500VA | 44 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
G5LE-1-E DC24RELAY GEN PURPOSE SPDT 16A 24V |
15,330 | - |
|
Datasheet | G5LE-E | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
|
G6DN-1A-L DC12RELAY GEN PURPOSE SPST 5A 12V |
7,181 | - |
|
Datasheet | G6DN | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 125VDC - Max | 1385VA, 625W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 8.4 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Alloy | General Purpose | - | - |
|
G5LE-1-E DC12RELAY GEN PURPOSE SPDT 16A 12V |
2,670 | - |
|
Datasheet | G5LE-E | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
|
J114AF2CS24VDC.53RELAY GEN PURPOSE DPDT 8A 24V |
2,445 | - |
|
Datasheet | J114AF | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 380VAC, 110VDC - Max | 3040VA, 880W | 22.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 20 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
