Power Relays, Over 2 Amps
Compare the current Power Relays, Over 2 Amps Relays selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

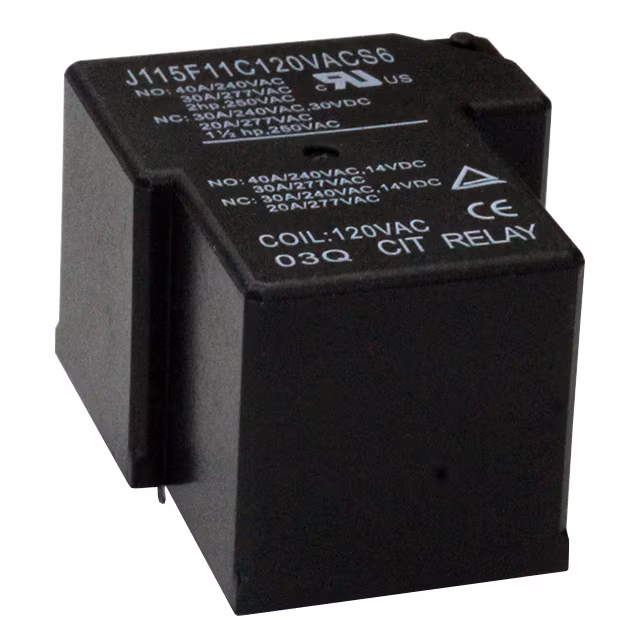

J115F11C120VACS6RELAY GEN PURPOSE SPDT 40A 120V |
150 | - |
|
Datasheet | J115F1 | Tube | Active | Through Hole | 120VAC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 39.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 90 VAC | 36 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

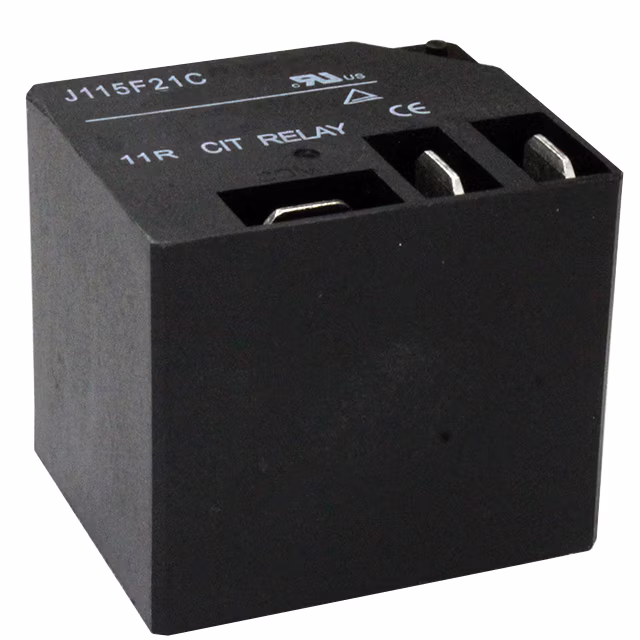

J115F21CH12VDCS61.5URELAY GEN PURPOSE SPDT 50A 12V |
1,271 | - |
|
Datasheet | J115F | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|

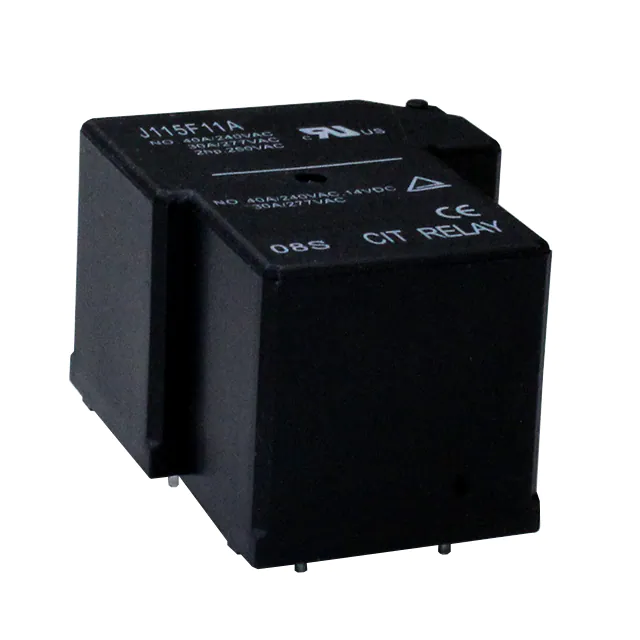

J115F11A120VACS6RELAY GEN PURPOSE SPST 40A 120V |
384 | - |
|
Datasheet | J115F1 | Tube | Active | Through Hole | 120VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 39.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 90 VAC | 36 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J115F31AL277VACSRELAY GEN PURPOSE SPST 40A 277V |
403 | - |
|
Datasheet | J115F3 | Tray | Active | Chassis Mount | 277VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 13.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 207 VAC | 83.1 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
L114FL1CS5VDC.60DRELAY GEN PURPOSE SPDT 20A 5V |
746 | - |
|
Datasheet | L114FL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 119 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J115F31CH48VDCS61.5URELAY GEN PURPOSE SPDT 50A 48V |
329 | - |
|
Datasheet | J115F | Tray | Active | Chassis Mount | 48VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 31.3 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
J115F11C220VACS6RELAY GEN PURPOSE SPDT 40A 220V |
644 | - |
|
Datasheet | J115F1 | Tube | Active | Through Hole | 220VAC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 16.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 165 VAC | 66 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J1512CT48VDC.9RELAY GEN PURPOSE DPDT 20A 48V |
209 | - |
|
Datasheet | J151 | Tray | Active | Socketable | 48VDC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 18.5 mA | Non Latching | - | Plug In | - | - | 36 VDC | 4.8 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
J1512CF48VDC.9RELAY GEN PURPOSE DPDT 20A 48V |
103 | - |
|
Datasheet | J151 | Tray | Active | Chassis Mount | 48VDC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 18.5 mA | Non Latching | - | Plug In | - | - | 36 VDC | 4.8 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J1511AF12VDC.9RELAY GEN PURPOSE SPST 20A 12V |
330 | - |
|
Datasheet | J151 | Tray | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 12 A | 300VAC - Max | 6000VA | 75 mA | Non Latching | - | Plug In | - | - | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
How can I narrow the current Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Relays, Over 2 Amps parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
