Power Relays, Over 2 Amps
Compare the current Power Relays, Over 2 Amps Relays selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J102K1AS3P3VDC.36RELAY GEN PURPOSE SPST 3A 3V |
1,059 | - |
|
Datasheet | J102 | Tube | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 120 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J102K1CS3P3VDC.20RELAY GEN PURPOSE SPDT 3A 3V |
3,238 | - |
|
Datasheet | J102 | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J102K1CS3P3VDC.36RELAY GEN PURPOSE SPDT 3A 3V |
4,014 | - |
|
Datasheet | J102 | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 120 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J102K1CS3P3VDC.45RELAY GEN PURPOSE SPDT 3A 3V |
1,358 | - |
|
Datasheet | J102 | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 150 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|

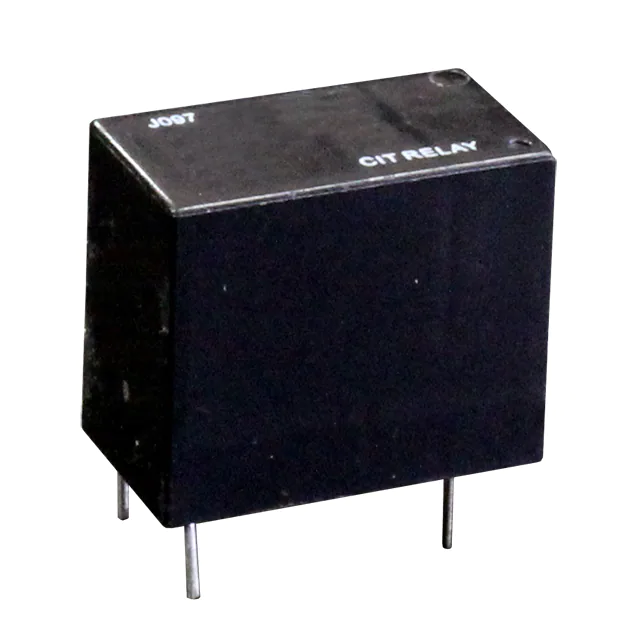

J0971CS18VDC.45RELAY GEN PURPOSE SPDT 10A 18V |
1,748 | - |
|
Datasheet | J097 | Tray | Active | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 2770VA | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 13.5 VDC | 1.8 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
J109F1AS1224VDC.45RELAY GEN PURPOSE SPST 12A 24V |
4,853 | - |
|
Datasheet | J109F | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 7 ms | 4 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J109F1AS1248VDC.50RELAY GEN PURPOSE SPST 12A 48V |
4,952 | - |
|
Datasheet | J109F | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 10.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 7 ms | 4 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J109F1AS1048VDC.45RELAY GEN PURPOSE SPST 10A 48V |
3,181 | - |
|
Datasheet | J109F | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 110VDC - Max | 3800VA, 1100W | 9.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 7 ms | 4 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J109F1AS1248VDC.80RELAY GEN PURPOSE SPST 12A 48V |
4,047 | - |
|
Datasheet | J109F | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 7 ms | 4 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J109F1AS1248VDC.45RELAY GEN PURPOSE SPST 12A 48V |
1,694 | - |
|
Datasheet | J109F | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 9.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 7 ms | 4 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
How can I narrow the current Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Relays, Over 2 Amps parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
