Power Relays, Over 2 Amps
Compare the current Power Relays, Over 2 Amps Relays selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J115F1E1CS5DSX.6BCRELAY GEN PURPOSE SPDT 30A 5VDC |
2,532 | - |
|
Datasheet | * | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 119 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J115F1E1CS12DSX.6BCRELAY GEN PURPOSE SPDT 30A 12VDC |
3,742 | - |
|
Datasheet | * | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J115F1E1CS9DSX.6BCRELAY GEN PURPOSE SPDT 30A 9VDC |
2,115 | - |
|
Datasheet | * | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J115F1E1CS9DSX.9BCRELAY GEN PURPOSE SPDT 30A 9VDC |
2,349 | - |
|
Datasheet | * | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 100 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

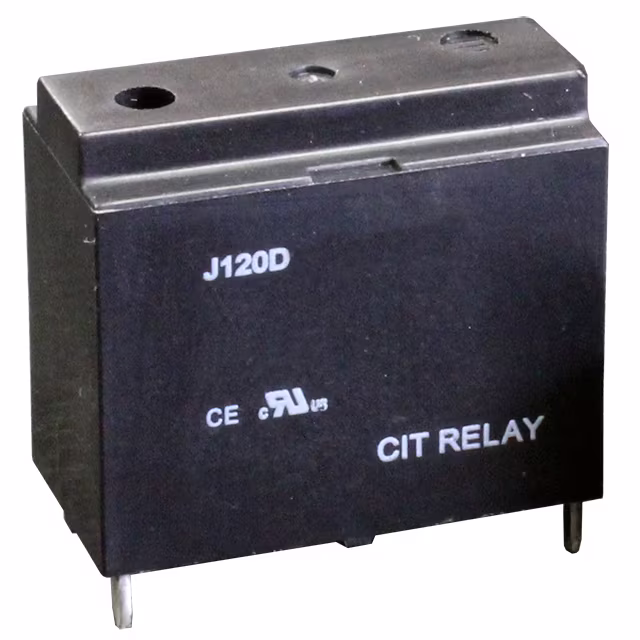

J120D1AS48VDCPRELAY GEN PURPOSE SPST 20A 48V |
4,179 | - |
|
Datasheet | J120D | Tray | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 20 A | 300VAC - Max | 6000VA | 11.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 36 VDC | 3.6 VDC | 20 ms | 10 ms | -30°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J114FL2CS89VDC.41RELAY GEN PURPOSE DPDT 8A 9V |
2,379 | - |
|
Datasheet | J114FL | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 8 A | 380VAC, 110VDC - Max | 3040VA, 880W | 44.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J114FL2AS824VDC.41RELAY GEN PURPOSE DPST 8A 24V |
3,273 | - |
|
Datasheet | J114FL | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 8 A | 380VAC, 110VDC - Max | 3040VA, 880W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J114FL2CS86VDC.41RELAY GEN PURPOSE DPDT 8A 6V |
4,759 | - |
|
Datasheet | J114FL | Tube | Active | Through Hole | 6VDC | DPDT (2 Form C) | 8 A | 380VAC, 110VDC - Max | 3040VA, 880W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 10 ms | 5 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J115F21CL9VDCS.6RELAY GEN PURPOSE SPDT 40A 9V |
2,627 | - |
|
Datasheet | J115F2 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 66.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J115F11A110VDCS.6RELAY GEN PURPOSE SPST 40A 110V |
3,594 | - |
|
Datasheet | J115F1 | Tube | Active | Through Hole | 110VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 5.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
How can I narrow the current Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Relays, Over 2 Amps parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
