Power Relays, Over 2 Amps
Browse available Power Relays, Over 2 Amps components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

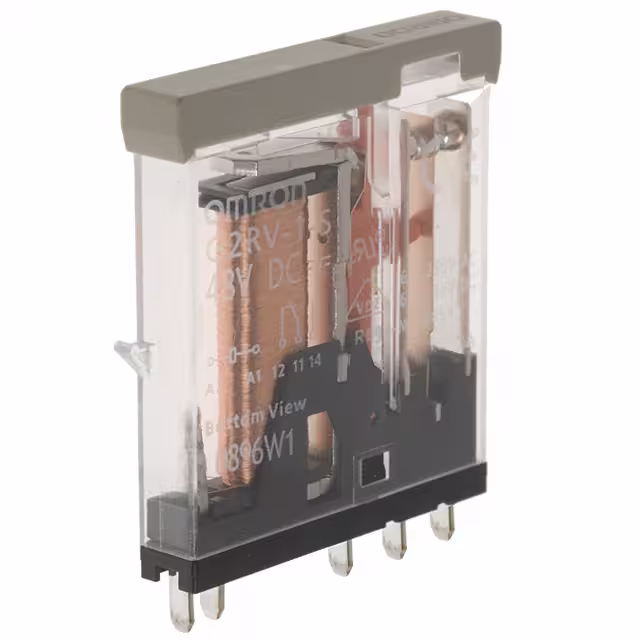

G2RV-1-S DC48RELAY GEN PURPOSE SPDT 6A 48V |
3,930 | - |
|
Datasheet | G2RV | Bulk | Obsolete | Socketable | 48VDC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 5.2 mA | Non Latching | - | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
RV2H-1HG1-D110LOW PROFILE 14MM 1C RELAY 110V |
4,235 | - |
|
Datasheet | RV2 | Bulk | Active | Through Hole | 110VDC | DPDT (2 Form C) | 8 A | 250VAC - Nom | - | - | Non Latching | - | PC Pin | - | - | 88 VDC | 7.7 VDC | 15 ms | 15 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
6-1393231-5RELAY GEN PURPOSE SPST 12A 12V |
4,383 | - |
|
Datasheet | RP3SL, SCHRACK | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 6400VA | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 14 ms | 12 ms | -40°C ~ 35°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
40.62.7.110.0000RELAY GEN PURPOSE DPDT 10A 110V |
4,210 | - |
|
Datasheet | 40 | Box | Active | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 4.7 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 80.3 VDC | 11 VDC | 12 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ2800-2AE-240A5ERELAY GEN PURPOSE DPST 40A 240V |
2,904 | - |
|
Datasheet | AZ2800 | Box | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 16.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 192 VAC | 48 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2800-2AE-240A5RELAY GEN PURPOSE DPST 40A 240V |
4,888 | - |
|
Datasheet | AZ2800 | Box | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 16.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 192 VAC | 48 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2700-2A-3DTWFRELAY GEN PURPOSE DPST 30A 3V |
2,731 | - |
|
Datasheet | AZ2700 | Box | Active | Chassis Mount | 3VDC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 600 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 2.25 VDC | 0.15 VDC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2800-2AE-220A6RELAY GEN PURPOSE DPST 40A 220V |
1,990 | - |
|
Datasheet | AZ2800 | Box | Active | Chassis Mount | 220VAC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 18.2 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 176 VAC | 44 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2800-2AE-240AERELAY GEN PURPOSE DPST 40A 240V |
4,756 | - |
|
Datasheet | AZ2800 | Box | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 16.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 192 VAC | 48 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
RV2H-2G-D48-C1D2RELAY GEN PURPOSE DPDT 8A 48V |
4,813 | - |
|
Datasheet | RV8 | Bulk | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 8 A | 250VAC - Nom | - | 9 mA | Non Latching | - | PC Pin | - | - | 38.4 VDC | 3.36 VDC | 15 ms | 15 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
AZ2800-2A-240A6ERELAY GEN PURPOSE DPST 40A 240V |
4,798 | - |
|
Datasheet | AZ2800 | Box | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 16.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 192 VAC | 48 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
AZ2800-2AE-240A6EKRELAY GEN PURPOSE DPST 40A 240V |
4,549 | - |
|
Datasheet | AZ2800 | Box | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 16.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 192 VAC | 48 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2700-2A-3DTFRELAY GEN PURPOSE DPST 30A 3V |
3,353 | - |
|
Datasheet | AZ2700 | Box | Active | Chassis Mount | 3VDC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 600 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 2.25 VDC | 0.15 VDC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
RM699BV-3011-85-1048RELAY GEN PURPOSE SPDT 6A 48V |
2,120 | - |
|
Datasheet | RM699BV | Bulk | Active | Through Hole | 48VDC | SPDT (1 Form C) | 6 A | 400VAC, 250VDC - Max | 2400VA, 1500W | 4.5 mA | Non Latching | - | PC Pin | - | - | 36 VDC | - | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
40.52.9.110.0000RELAY GEN PURPOSE DPDT 8A 110V |
3,540 | - |
|
Datasheet | 40 | Bulk | Active | Socketable | 110VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 6.2 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 80.2 VDC | 22 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
40.52.7.048.0001RELAY GEN PURPOSE DPDT 8A 48V |
2,339 | - |
|
Datasheet | 40 | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 10 mA | Non Latching | - | Plug In | - | - | 35 VDC | 9.6 VDC | 12 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ2704-2A-110DTWFRELAY GEN PURPOSE DPST 30A 110V |
4,076 | - |
|
Datasheet | AZ2704 | Box | Active | Through Hole | 110VDC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 17.5 mA | Non Latching | - | PC Pin | - | Class F | 82.5 VDC | 5.5 VDC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2703-1A-24ARELAY GEN PURPOSE SPST 30A 24V |
4,362 | - |
|
Datasheet | AZ2703 | Box | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 80 mA | Non Latching | - | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class B | 19.2 VAC | 3.6 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
AZ2800-2AE-110DERELAY GEN PURPOSE DPST 40A 110V |
4,584 | - |
|
Datasheet | AZ2800 | Box | Active | Chassis Mount | 110VDC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 15.2 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
RJ1S-C-D48RELAY PLUG-IN SPDT 12A 48VDC |
4,836 | - |
|
Datasheet | RJ | Bulk | Active | Socketable | 48VDC | SPDT (1 Form C) | 12 A | 250VAC, 125VDC - Nom | - | 11 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 33.6 VDC | 4.8 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
