Power Relays, Over 2 Amps
Browse available Power Relays, Over 2 Amps components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
788-166RELAY GEN PURPOSE SPDT 16A 110V |
1,159 | - |
|
Datasheet | 788 | Box | Active | Through Hole | 110VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 4 mA | Non Latching | - | PC Pin | - | - | - | - | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
US45377IDEC RU4S-M-A12 RELAY, KONE CU |
4,403 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
KUP-7A55-120RELAY GEN PURPOSE DPST 10A 120V |
1,536 | - |
|
Datasheet | KUP | Bulk | Obsolete | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RM202110RELAY GEN PURPOSE DPDT 16A 110V |
1,474 | - |
|
Datasheet | RM, SCHRACK | Tray | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 16 A | 440VAC - Max | 7040VA | 11 mA | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
7940007732RELAY GEN PURPOSE 3PDT 10A 24V |
1,760 | - |
|
Datasheet | RRD | Bulk | Obsolete | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 50.5 mA | Non Latching | Diode, Lighted Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
2961037RELAY GEN PURPOSE SPST 3A 24V |
3,380 | - |
|
Datasheet | REL-MR | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 6.5 mA | Non Latching | - | PC Pin | - | - | - | - | 5 ms | 2 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

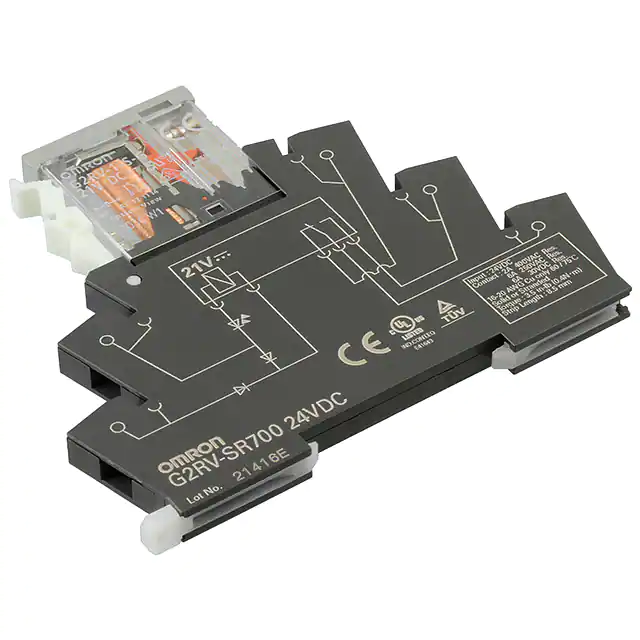

G2RV-SR700 DC24RELAY GEN PURPOSE SPDT 6A 24V |
2,621 | - |
|
Datasheet | G2RV-SR | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 13.5 mA | Non Latching | Socket Included | Screw Terminal | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
RJ2S-CL-D5GP RELAY DPDT 5VDC LED |
1,967 | - |
|
Datasheet | RJ | Bulk | Active | Socketable | 5VDC | DPDT (2 Form C) | 8 A | 250VAC, 30VDC - Nom | - | 106 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 3.5 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
MY4N-GS-R AC200/220RELAY GEN PURPOSE 4PDT 3A 220V |
4,970 | - |
|
Datasheet | MY | Bulk | Active | Socketable | 220VAC | 4PDT (4 Form C) | 6 A | 250VAC, 220VDC - Max | 1500VA, 1320W | 17 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 176 VAC | 66 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
MY4IN-GS-R DC100/110RELAY GEN PURPOSE |
1,951 | - |
|
Datasheet | MY | Bulk | Active | Socketable | 110VDC | 4PDT (4 Form C) | 6 A | 250VAC, 220VDC - Max | 1500VA, 1320W | 9.6 mA | Non Latching | Latching Lever, Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
9-1415073-1RELAY GEN PURPOSE SPDT 16A 230V |
1,845 | - |
|
Datasheet | RT, SCHRACK | Bulk | Active | DIN Rail | 230VAC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 3.2 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | Class F | 172.5 VAC | 34.5 VAC | - | - | -20°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
NC2EBD-DC48VRELAY GEN PURPOSE DPDT 5A 48V |
2,371 | - |
|
Datasheet | NC | Box | Active | Socketable | 48VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 7.5 mA | Non Latching | - | Plug In | Sealed - Fully | - | 38.4 VDC | 4.8 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
RM207730RELAY GEN PURPOSE DPDT 16A 230V |
1,323 | - |
|
Datasheet | RM, SCHRACK | Bulk | Obsolete | Through Hole | 230VAC | DPDT (2 Form C) | 16 A | 440VAC - Max | 7040VA | 27.7 mA | Non Latching | Mechanical Indicator | PC Pin | - | - | 184 VAC | 69 VAC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
RM202730RELAY GEN PURPOSE DPDT 16A 230V |
2,501 | - |
|
Datasheet | RM, SCHRACK | Bulk | Obsolete | Socketable | 230VAC | DPDT (2 Form C) | 16 A | 440VAC - Max | 7040VA | 27.7 mA | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 184 VAC | 69 VAC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
60.13.9.012.0000RELAY GEN PURPOSE 3PDT 10A 12V |
3,538 | - |
|
Datasheet | 60 | Bulk | Active | Socketable | 12VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 109 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | - | 9.6 VDC | 2.4 VDC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
60.13.9.012.0040RELAY GEN PURPOSE 3PDT 10A 12V |
1,187 | - |
|
Datasheet | 60 | Bulk | Active | Socketable | 12VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 109 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 9.6 VDC | 2.4 VDC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
1123470000RELAY GEN PURPOSE DPDT 8A 5V |
2,321 | - |
|
Datasheet | TERMSERIES | Bulk | Active | DIN Rail | 5VDC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 70 mA | Non Latching | - | Screw Terminal | - | - | - | - | 11 ms | 7 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
1123590000RELAY GEN PURPOSE DPDT 8A 5V |
3,045 | - |
|
Datasheet | TERMSERIES | Bulk | Active | DIN Rail | 5VDC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 70 mA | Non Latching | - | Spring Terminal | - | - | - | - | 11 ms | 7 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
2614840000RELAY GEN PURPOSE DPDT 8A 5V |
3,261 | - |
|
Datasheet | TERMSERIES | Box | Active | DIN Rail | 5VDC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 70 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | 3 VDC | 1.6 VDC | 11 ms | 7 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
MT221060RELAY GEN PURPOSE DPDT 10A 60V |
2,171 | - |
|
Datasheet | MT, SCHRACK | Bulk | Obsolete | Socketable | 60VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 2500VA | 21.7 mA | Non Latching | Test Button | Plug In, 8 Pin (Octal) | - | Class B | 45 VDC | 6 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
What Power Relays, Over 2 Amps components can I source from EGOO?
You can browse available Power Relays, Over 2 Amps product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Power Relays, Over 2 Amps parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
